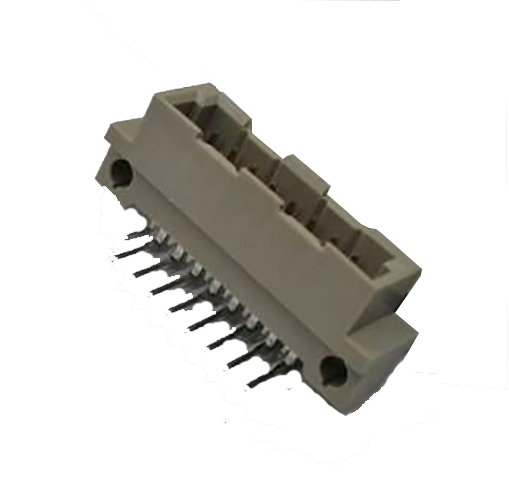

16 Pin Right Angle Male/Plug DIN41612 Connectors

DIN 41612, DIN41612, Backplane Connectors, IEC 60603.2, IEC 60603-2, and EN60603-2 Product introduction Din41612 connectors are generally used for signal or power connection below 3MHZ, not suitable for signal connection above 10MHZ. when the working temperature is 25°C, it is recommended that the current allocated to each pair of pinholes be less than 1A during design and use. The connection form is: straight hole - curved needle, vertical connection of curved hole - straight needle, parallel connection of curved hole - curved needle. The number of contact points are: 20, 30, 32, 40, 64, 96, 120, 128, 160, etc.   Eurocard standard Connector Application VMEbus (VME / Versa Module Europa bus / IEEE 1014) NuBus (IEEE 1196) STEbus Multibus II Europe Card Bus VXI Bus FutureBus N8VEM computer bus DIN41612 Right Angle Plug Type 0.33B Connectors 16 Positions Specification Connector Category: Din 41612 Eurocard Connector丨Solder Din 41612 C…
