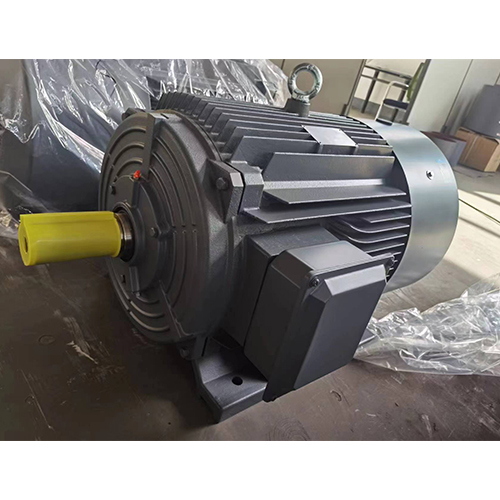

BEIDE7.5KW 1TL0003 Cast Iron Three-phase Asynchronous Motor

BEIDE7.5KW 1TL0003 Cast Iron Three-phase Asynchronous Motor Rated Output 1TL0 motors rated output powers means that the motor runs under continuous duty S1 (IEC 60034 - 1) operation when operated at ambient temperature from -15 ºC to 40 ºC and at altitudes of up to 1000 m over sea.7.5KW Cast IronThree-phase Asynchronous Motor Voltage and Frequency IEC 60034-1 differentiates between Category A (combination of voltage deviation ±5 % and frequency deviation ±2%) and Category B (combination of voltage deviation ±10 % and frequency deviation +3 % / -5 %) for voltage and frequency fluctuations. The motors can supply their rated torque in both Category A and B. In Category A, the temperature rise is approximately 10 K higher than during normal operation. 7.5KW 1TL0003 Three-phase Asynchronous Motor 1TL0 Cast Iron series Low-voltage Three-phase Asynchronous Motor Rated output：0.55 ~ 315 kW Frame size：80 ~ 355 Voltage and Frequency：support multiple voltage and…
