Paper reel wrapping system

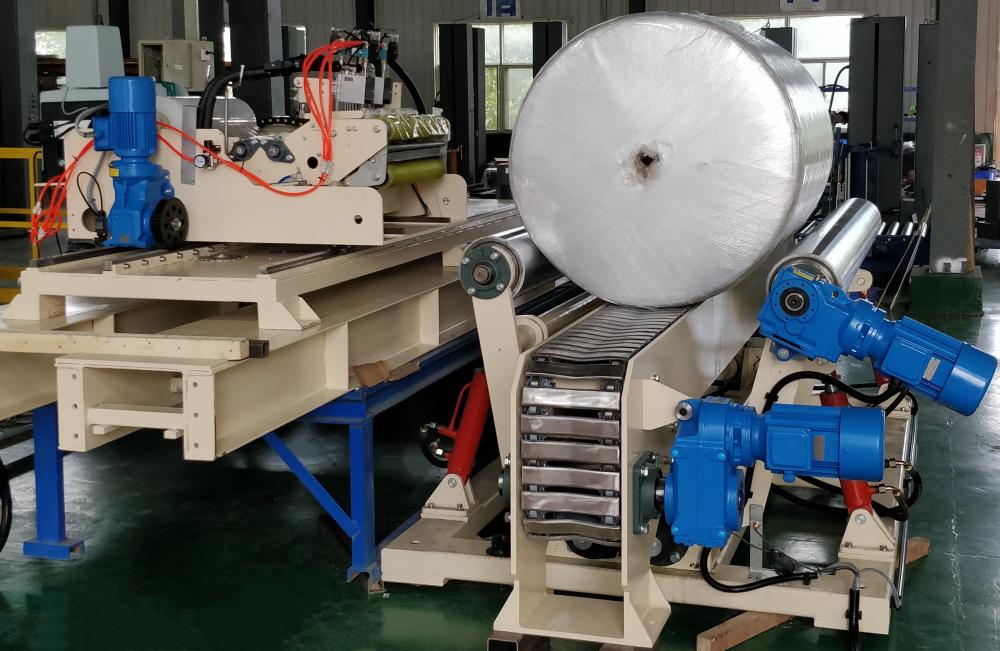

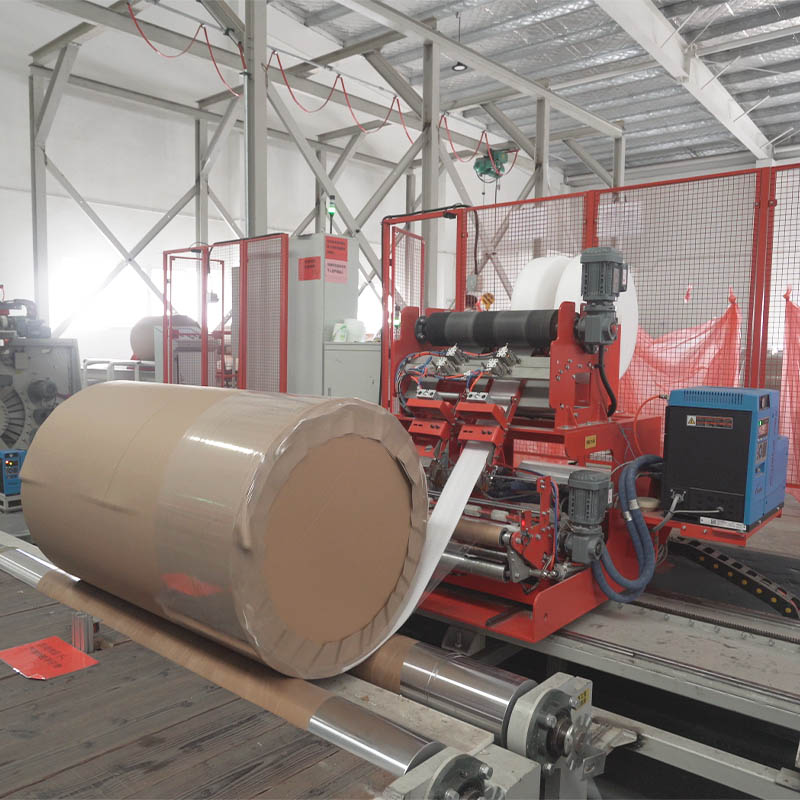

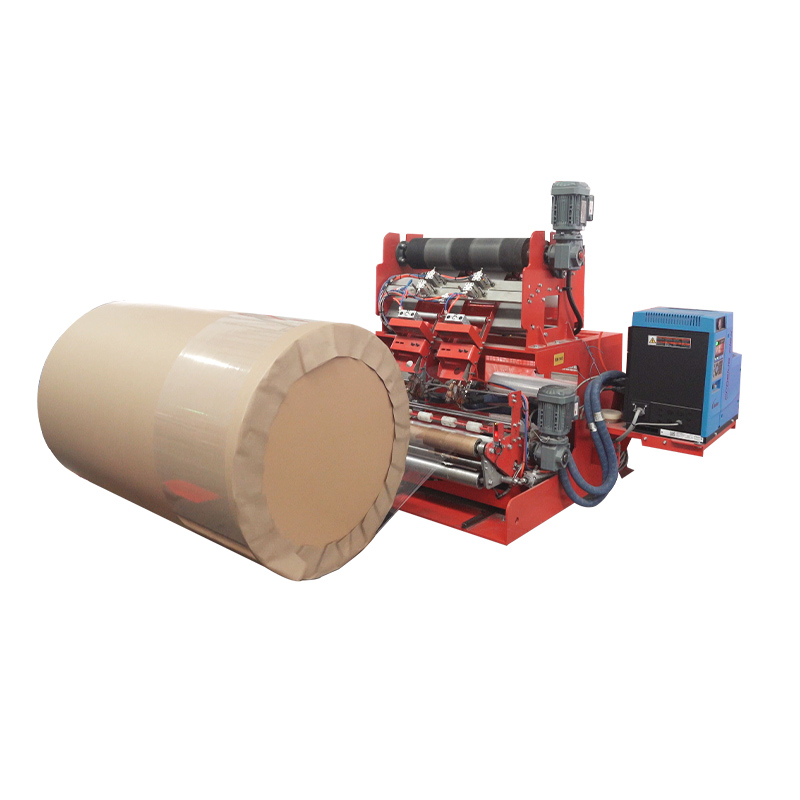

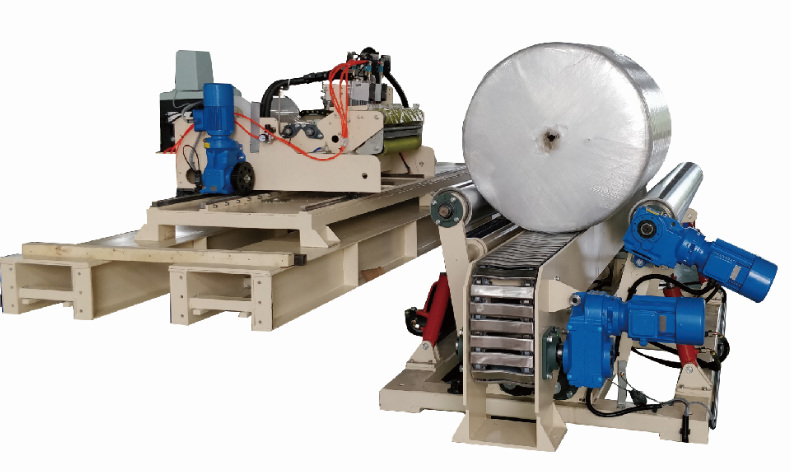

The wrapping system is composed of automatic raidal wrapping machine, Semi-auto radial wrapping machine, V-slat conveying system, Stopper, weighing scale, electrical turntable and Upender, etc.  1. Automatic radial wrapper General description: The machine includes the driving rollers and the main radial reel wrapper, not including any conveyor. Radial wrapper parts 1.1  Gear and rack driving device. 1.2  Precise straight railway.  1.3  Steel frame and powder coating. 1.4  Whole set of pneumatic control system, user connects to the stop valve inlet. 1.5  The necessary control box, all the proximity switch and photo-eye frame. 1.6  Auto hot melt glue spray device, auto film press device, auto film cut device, auto film sticking device. 1.7  Photo only for reference. 4.1.8  Capacity: 60-70 rolls/hour;  standard film layers: 2 layers.  2. Semi-auto radial reel wr…
