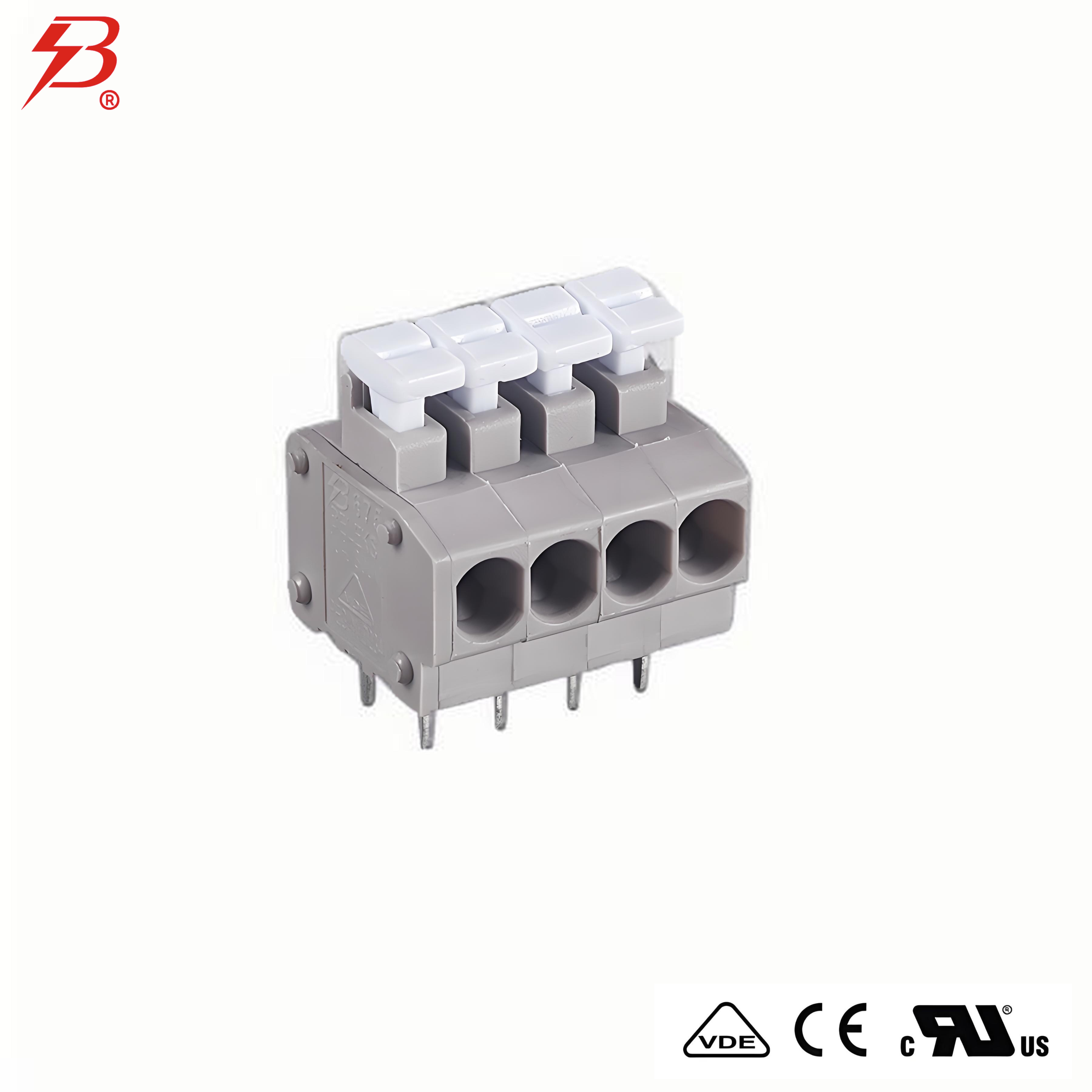

0.15inch Pitch Circuit Board Push Wire Connectors

The BELEKS 675 Series push wire connectors, also known as PCB wire connectors, are versatile, easy-to-use, and highly safe, making them ideal for various industries like new energy, infrastructure, automation, and railway transportation. Their flexible design accommodates various wire sizes, while the push-in mechanism simplifies installation. The push-in connectors meet safety standards, ensuring reliability in harsh environments. Their durability and precision manufacturing ensure long-term performance, reducing maintenance costs and enhancing system reliability.   Connector specification: size of connector:16.00mm×12.60mm×18.60mm pitch: 3.81mm Annual Production:  40, 000, 000PCS/Year     Product Parameters Item No. 675-1XX Electrical Data   IEC/EN Rated Voltage (V) 250 Rated Current (A) 10 Ambient Temperature Polyamide 66 T90 Connection Data   IEC/EN Cross Section Solid conductor 0.5-1.5mm² Strip length (m…
