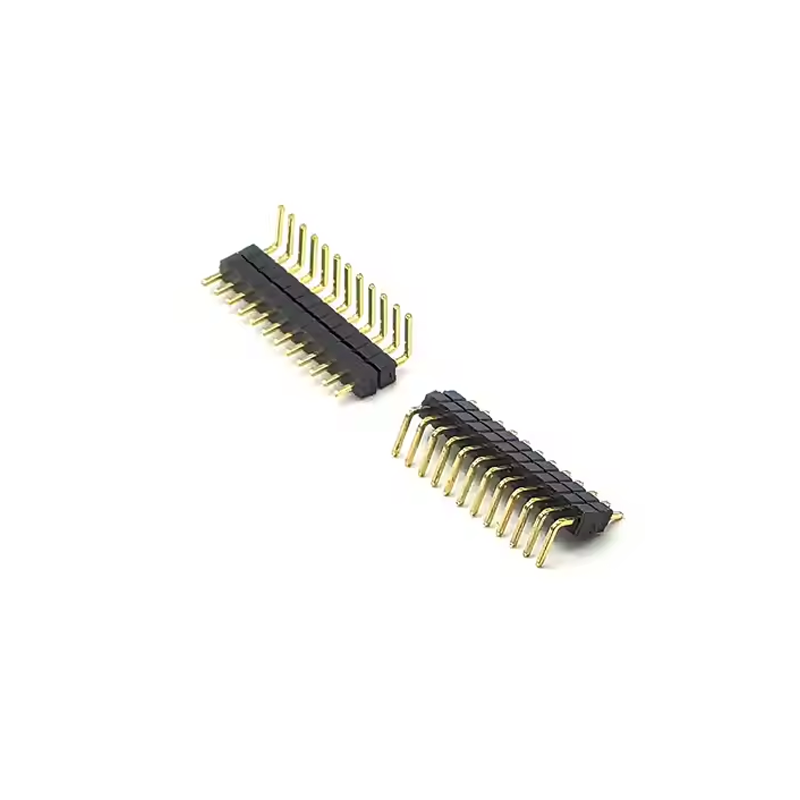

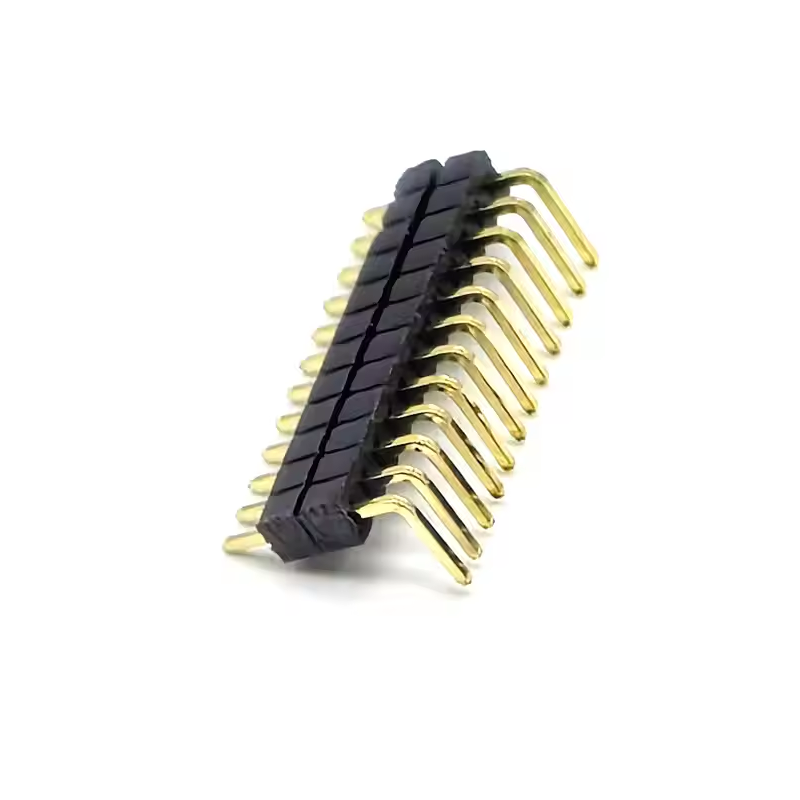

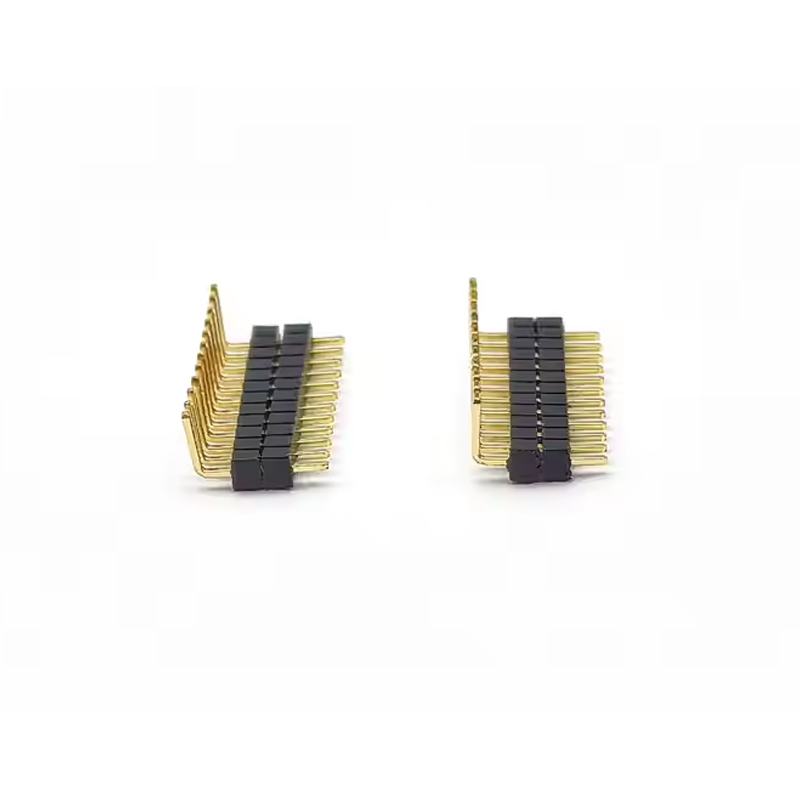

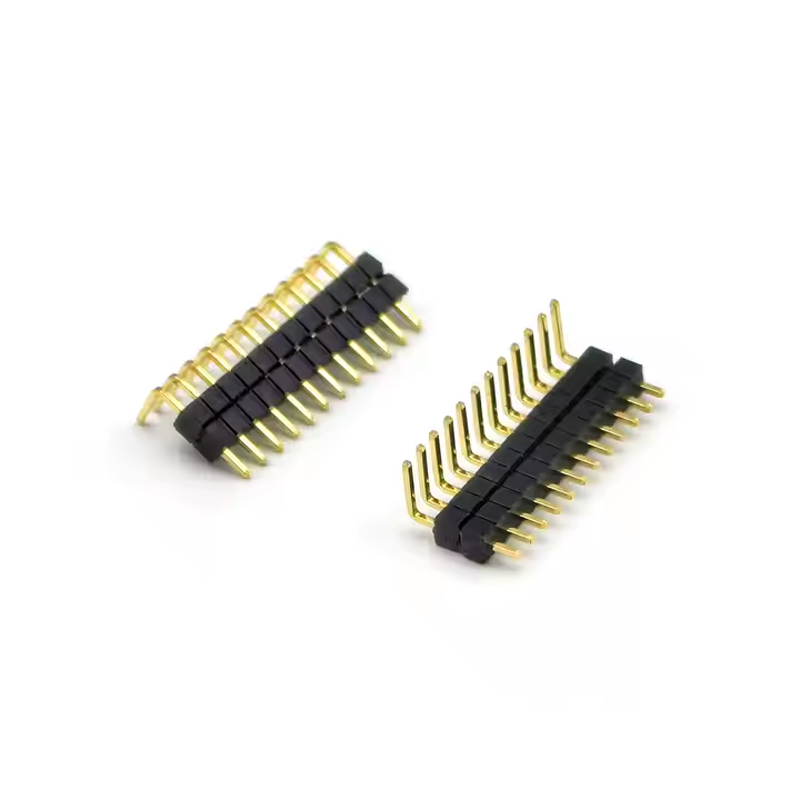

1.0mm Pitch Right Angle Pin Header

1.0mm Pitch Right Angle Pin Header yztech’s 1.0mm Pitch Right Angle Pin Header is an innovative solution for compact electronic device connections, designed for space-constrained consumer electronics, industrial control, and medical equipment. As a core model in the Pin Header series, its unique right-angle structure (pin header 90 degree) breaks through traditional wiring limitations, effectively saving 30% installation space, especially suitable for vertical wiring scenarios of  PCB Pin Header. The black 1.0mm pitch header represents high cost-performance in the 1.0 mm Pin header category. Featuring C2680 phosphor bronze terminals (gold-plated) and black LCP insulators, the 1.0mm pitch header stable operates across -40°C to +105°C with a 2A/pin current rating, ensuring stable high-frequency signal transmission. The Gold Flash plating, combined with a ≥50u" nickel base, keeps contact resistance below 20mΩ, minimizing signal loss in right-angle paths. With 6-64 PIN options, it is com…
