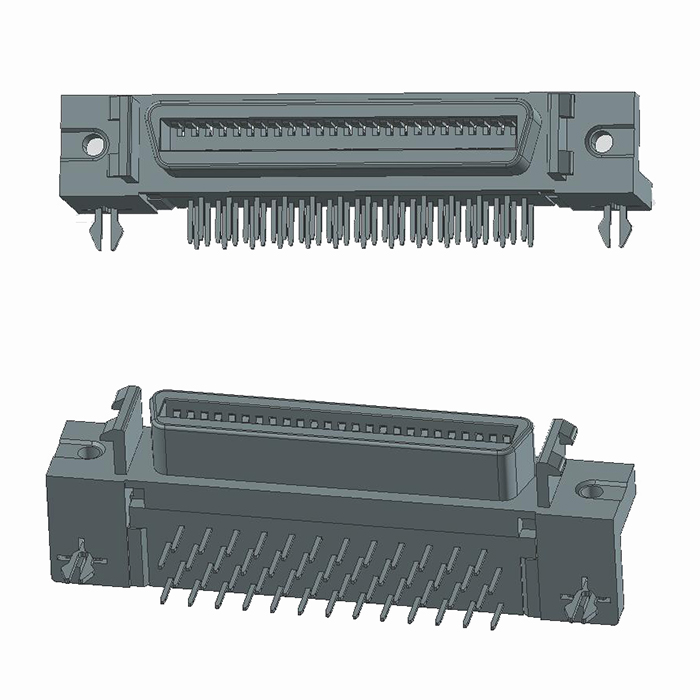

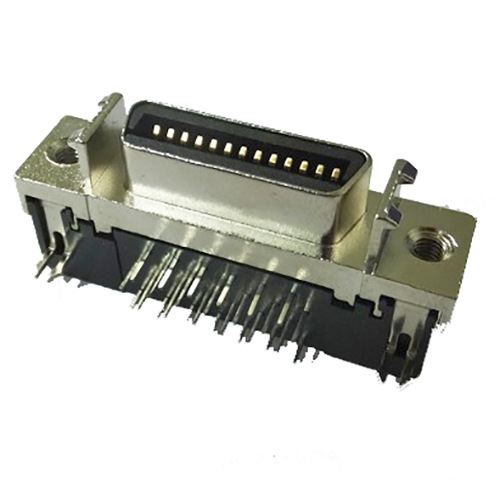

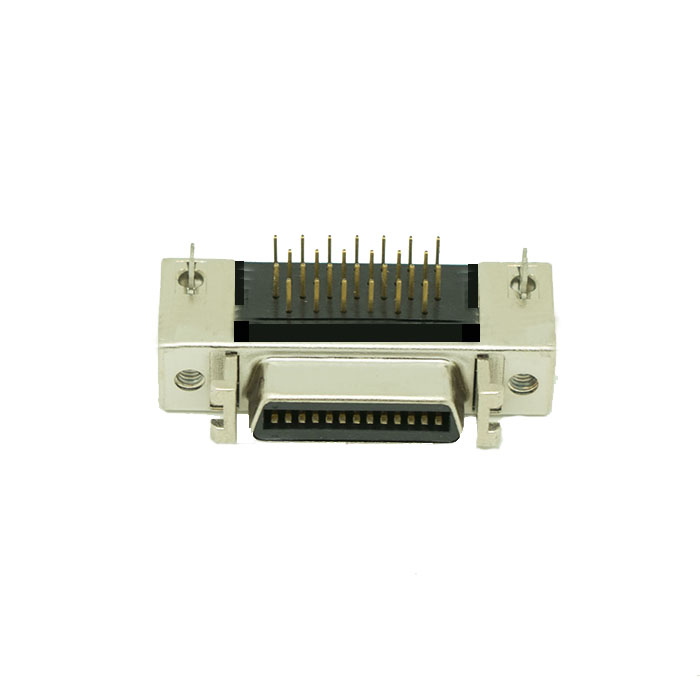

1.27mm NP Receptacle Headers Right-Angle

1.27mm Series NP Receptacle Headers Right-Angle Mount Ribbon Type Specifications: 1.Electrical Characteristics:  1.1 Contact Current rate：1A  1.2 Insulation resistance:500MΩ Min  1.3 Contact resistance：35mΩMax  1.4 Dielectric Voltage:500V AC For One Minute 2.Material:  2.1 Insulator:PBT+30%G/F   2.2 Contact:Copper alloy T=0.30  2.3 Board Lock:Copper alloy T=0.50  2.4 Bracket:ZINC alloy 3.Finish  3.1 Shell:Nickel Plated Over Copper  3.2 Contact:Gold Plating  3.3 Board Lock:Nickel Plated   Operation Temperature:-55℃ To +125℃
