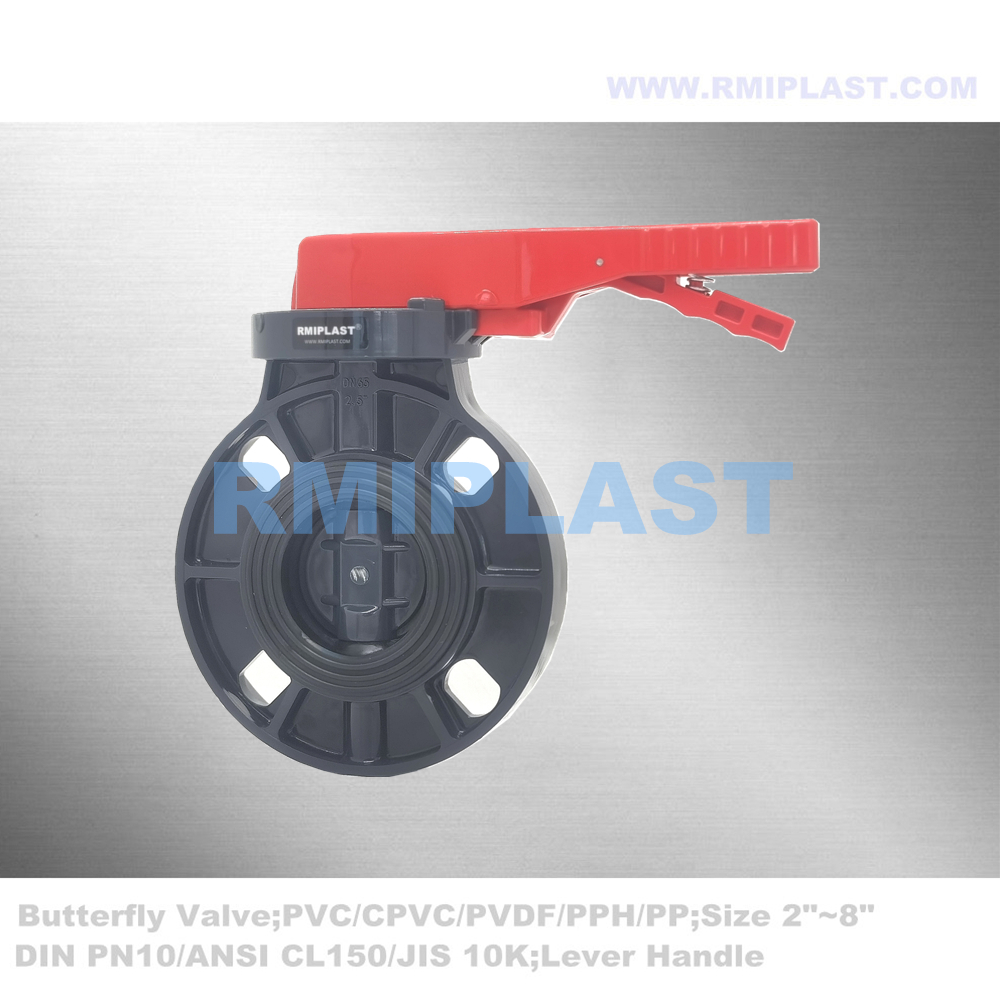

100mm 4 inch PVC Butterfly Valve JIS 10K

100mm 4 inch PVC Butterfly Valve JIS 10K model PV121W is an economic type valve designed for water purpose, it is simple structure with light body, light torque for manual lever operate and most important is cheap price. PVC water butterfly valve is suitable for water supply, water treatment, swimming pool, fish farm, agriculture and irrigation. water PVC butterfly valve is made by PVC body with seat EPDM or NBR, connection as per flange standard DIN PN10, ANSI CL150, JIS 10K, Size from 2" to 8", working pressure by PN10, temperature from 0 degree to 70 degree.  PVC water butterfly valve model PV121W features Basic specification Size: DN50~DN200 (2 inch ~ 8 inch) Body Material: PVC Seal material: EPDM, NBR Wafer connection: DIN PN10; ANSI CL150; JIS 10K Design pressure: 1.0Mpa (PN10 bar) Feature of valve Disc and seat that touch medium are made from plastic and rubber Multi-hole fi t for different standards connection  …
