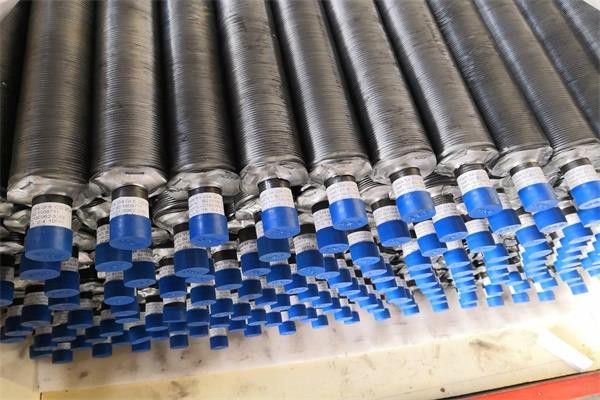

1100 Aluminum Strip for L KL Fin Tube

1100 ALUMINUN STRIP FOR L,LL,KL,G FIN TUBE Chemical composition of 1100 aluminum strip Aluminum Al : 99.00 Silicon Si : 0.45 Copper Cu : 0.05 to 0.20 Magnesium Mg: - Zinc Zn: 0.01 Manganese Mn: 0.035 Titanium Ti :-- Vanadium V: 0.05 Iron Fe: 0.35 Note: Single: 0.05. Mechanical properties of 1100 aluminum plate Tensile strength σb (MPa): 110 to 136. Elongation δ10 (%): 3 to 5. 1100 (L6-1) & MDash; - International Standard: Al99.0 (ISO); Japan: Al100/Al00 (JIS); European Standard: EN AW 1100 (EN); France: A45; Canadian 990C (CSA); 1100 (AA) Application Size： Fin Thk.: 0.3 to 0.5 (mm) 0.012” to 0.02” Fin Height: 10.0 to 16.0 (mm) 0.394” to 0.630” Fin Material: Aluminum (most common…
