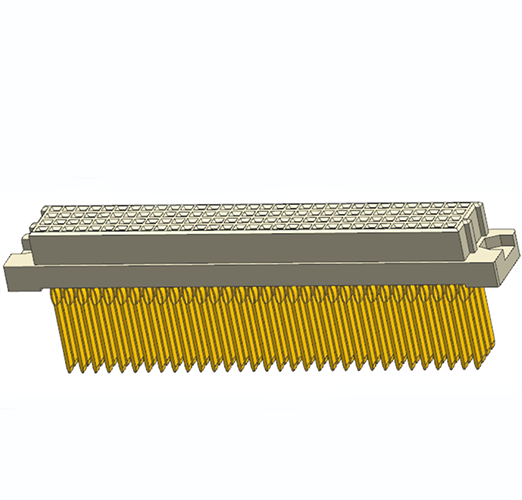

128P Vertical Female Press-fit Type Female EuroCard IEC 60603-2 Connector

DIN41612 Vertical Female press-fit type c female 128P Product introduction Din41612 mainly have parallel connection and vertical connection. The connection form is: straight hole - curved needle, vertical connection of curved hole - straight needle, parallel connection of curved hole - curved needle. The number of contact points are: 20, 30, 32, 40, 64, 96, 120, 128, 160, etc.  There are two installation and fixing methods, one is the harpoon fixing method. In this method, the fixing pin will be welded to death during welding, which is not conducive to maintenance and disassembly.  The DIN 41612 connector is a high pin-count connector suitable for providing connections from cards to motherboards in bus based systems. The connectors have contacts arranged in rows, typically one two or three, with two and three being the most common. These rows are labelled, a, b, and c, for example a pin may be numbered 21a, or 22b, etc., dependent upon th…
