16mm Stroke 1689N 4-Jaw Pneumatic Gripper

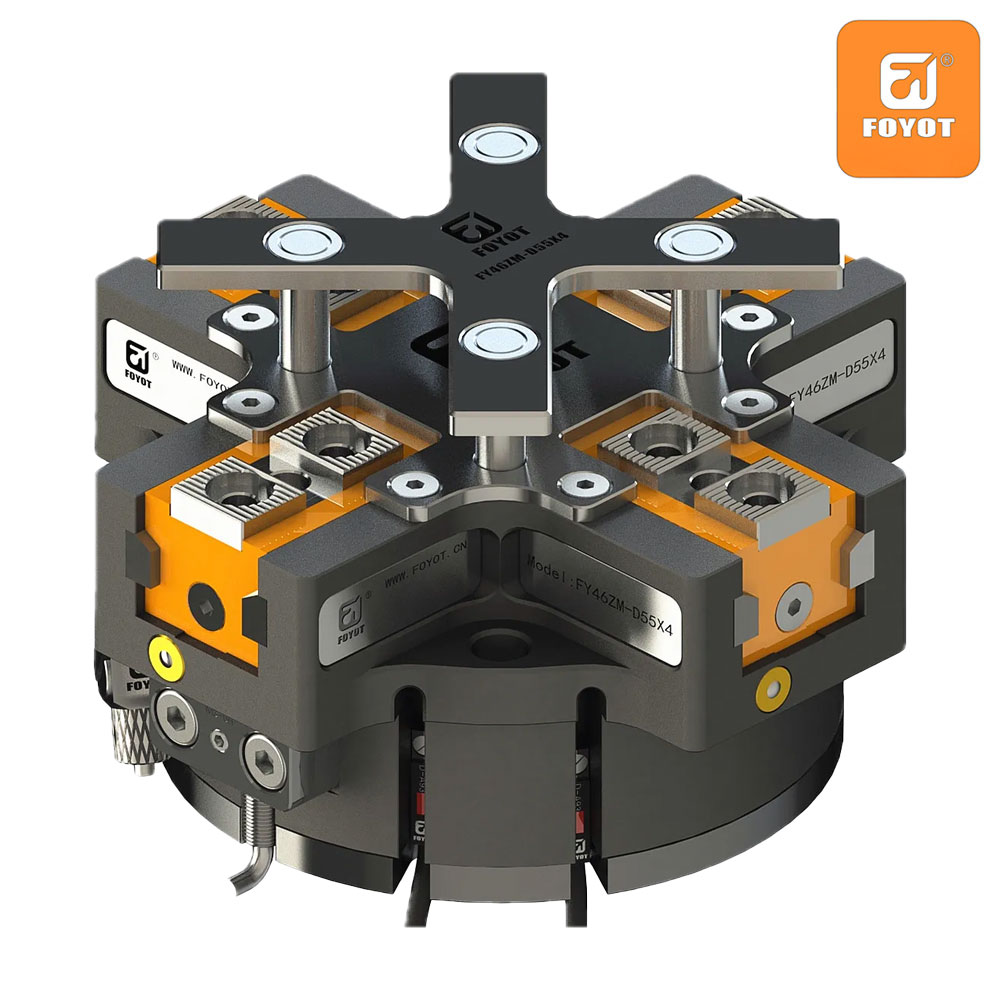

Compact 16mm Stroke for Small-to-Medium Cylindrical Parts The FY46ZM-D55X4 is a compact pneumatic parallel 4-jaw gripper engineered for precise self-centering clamping of small-to-medium cylindrical workpieces. With a 16 mm total stroke and 1689 N opening force, it delivers strong, uniform gripping. The four-jaw centric design eliminates off-center deflection and ensures repeatable part positioning. High-Precision & Fast Cycling Achieves ±0.01 mm repeat accuracy with 0.05/0.05 sec opening/closing times. Weighing only 0.95 kg, it minimizes inertia for high-speed pick-and-place. With 50 consecutive usage cycles, it ensures reliable long-term performance. IP64 Protection & Low Maintenance Rated IP64 for dust and water splash protection. No lubrication required reduces maintenance and enables clean operation. The M5-6H port allows compact tubing connection for easy integration. Key Specifications Type: Parallel 4-Jaw, Double-ActingStroke: 16 mm (Total)Opening Force (7 bar): 1689…
