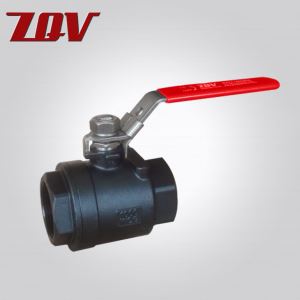

2PC Threaded Full port Ball Valve PN63

Product Description Type:Series 1021 Description: 2 piece stainless steel full port ball valves with PTFE seal are mostly use for general oil, gas and water application.  Feature: ●2 PC Body Design ●Standard Bore, Quarter turn operation ●Body: ASTM A216 GR. WCB, SS304 A351 Gr.CF8, SS316 A351 Gr.CF8M ●Size: 1/4” – 4” (DN8-100) ●Working Pressure: 1000 PSI 69bar ●Threaded End: BSPP, NPT,PT, DIN259/DIN2999 ●Applicable Medium: General oil, Gas & Water applications ●Blow-out Proof Stem Design ●Lockable lever handle ●Adjustable packing gland ●Temperature Range: -29°C to 150°C ●Test standard: API598/ASME B16.34 Option: Seal-welded Spring reture handle Oval handle
