30MVA 132KV Power Trasformer for Distribution

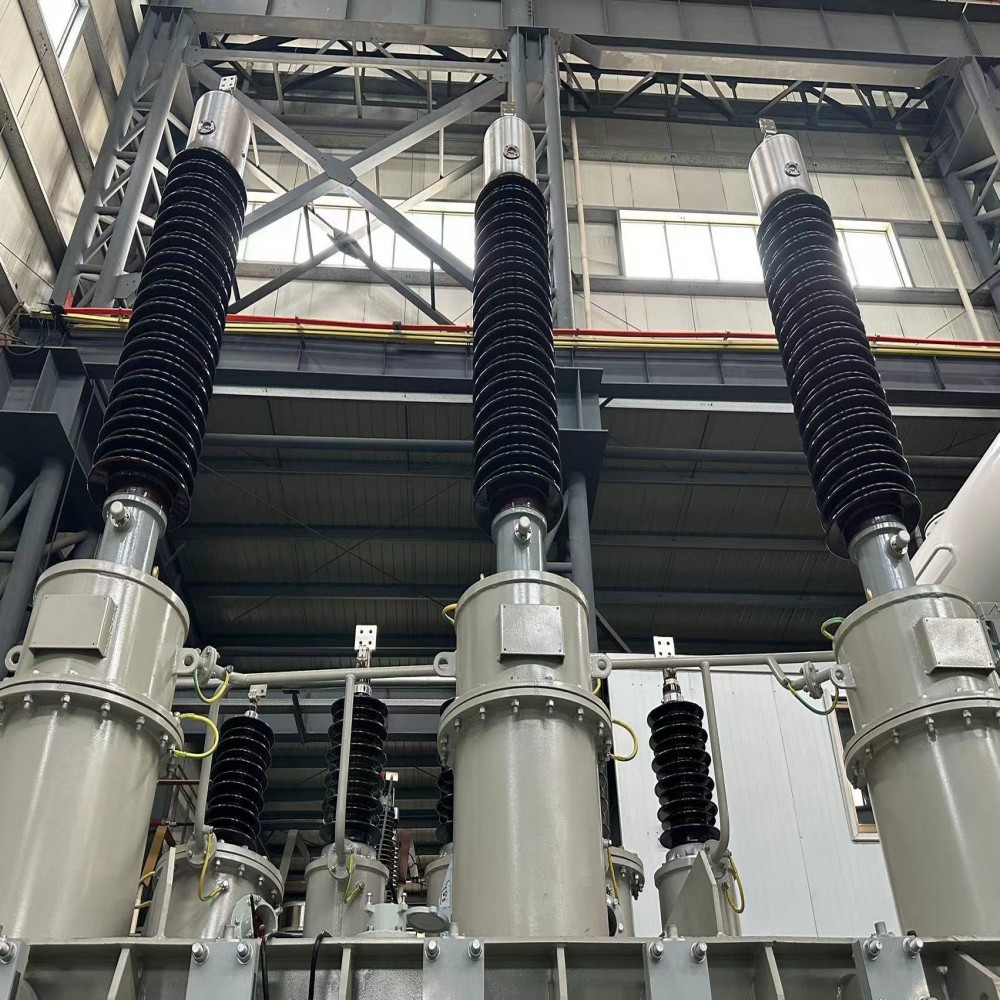

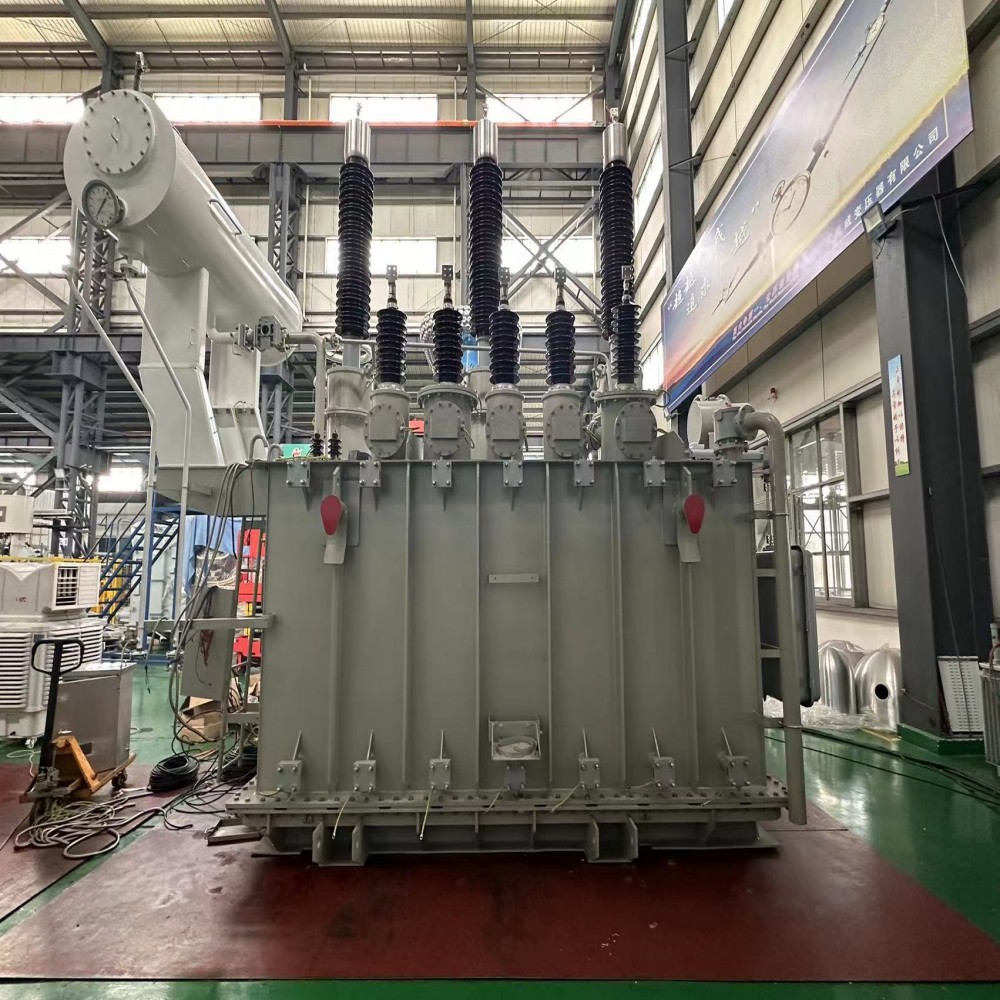

  Product Description This 30 MVA power transformer, manufactured by Yawei, was supplied to South Africa. With a rated capacity of 30,000 kVA, it operates as a step-down unit, converting voltage from 132 kV to 11 kV. The windings are constructed using high-grade electrolytic copper conductors and are insulated with epoxy-coated kraft paper, enhancing thermal endurance and short-term overload performance. Designed with advanced engineering techniques and premium materials, this oil-immersed transformer ensures reliable operation and an extended service life. Each unit undergoes comprehensive acceptance testing in line with international standards such as IEC and ANSI. Yawei maintains an exceptional track record with zero failure rates for over a decade, underscoring its commitment to quality and durability in power transmission solutions. Scope of Supply: Product: Power Transformer Rated Power: Up to 400 MVA Primary Voltage: Up to 400 kV Specification MVA 30 Primary voltage 132…
