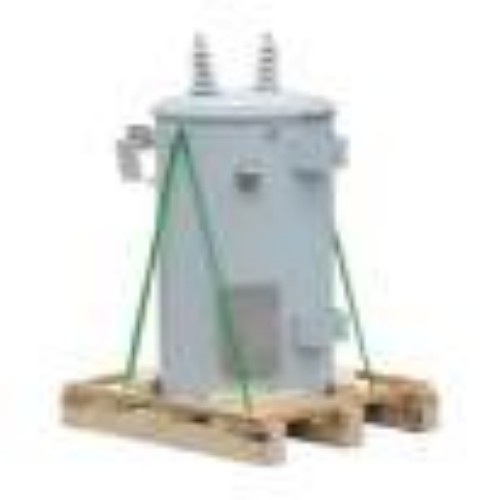

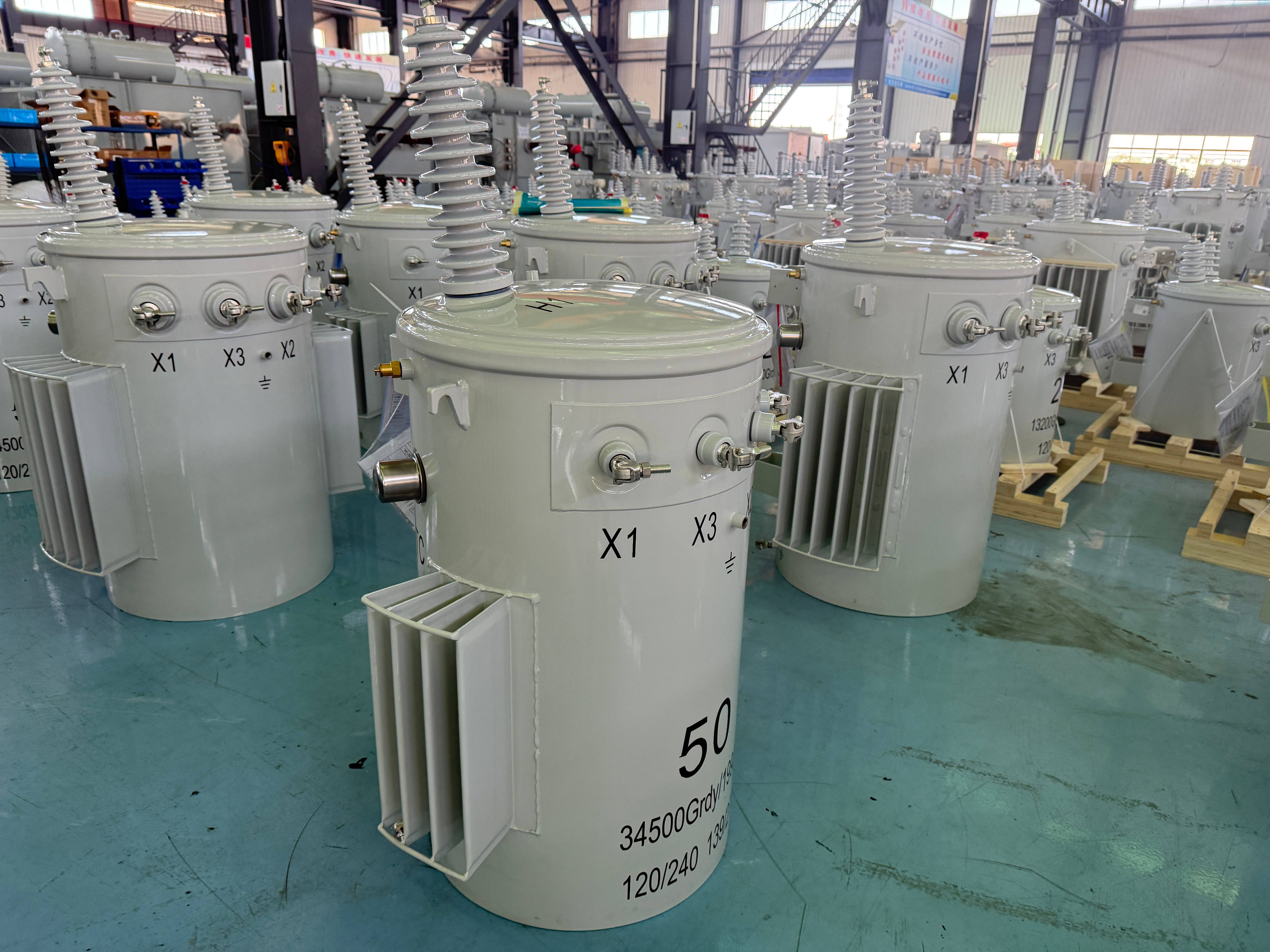

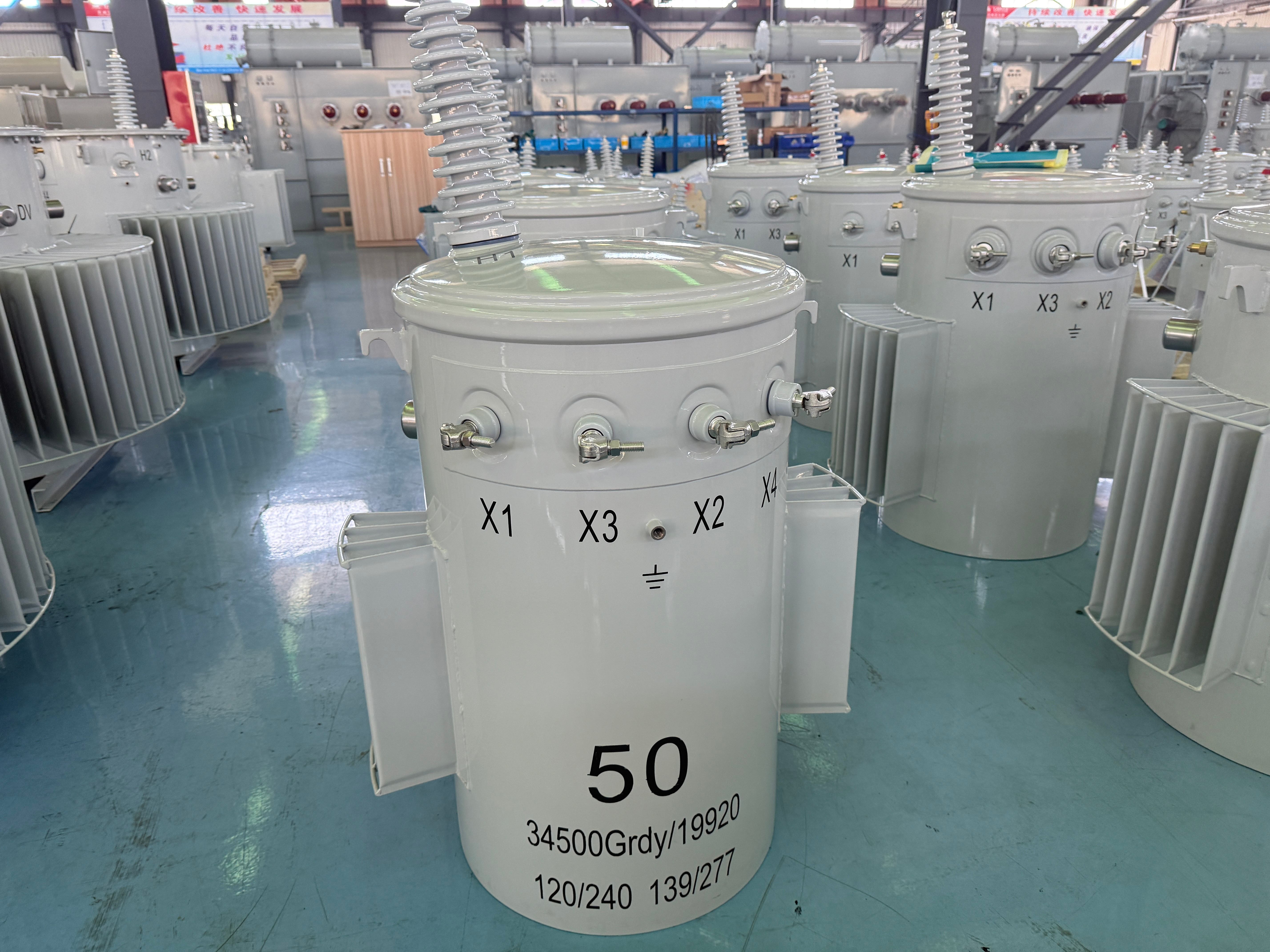

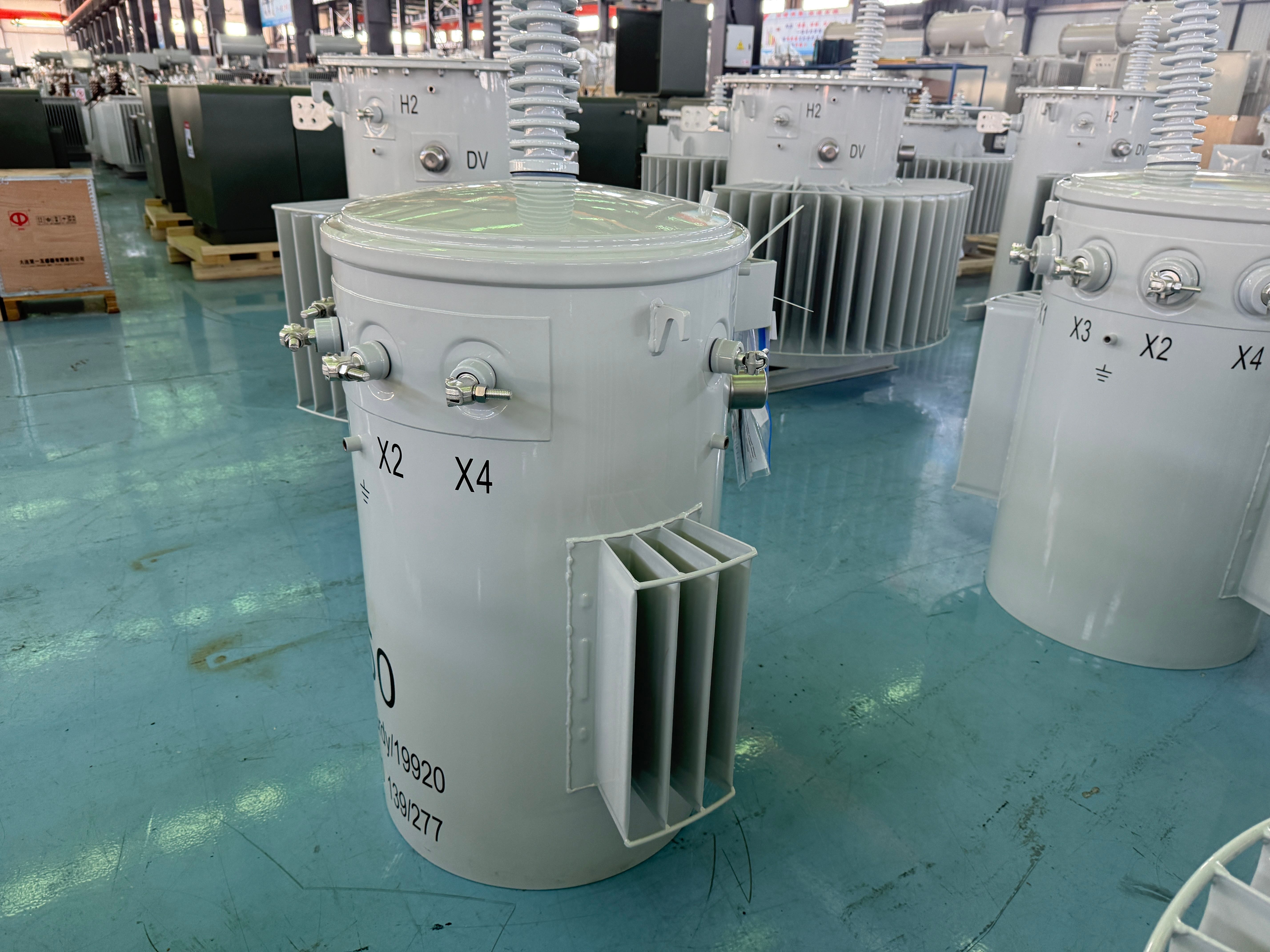

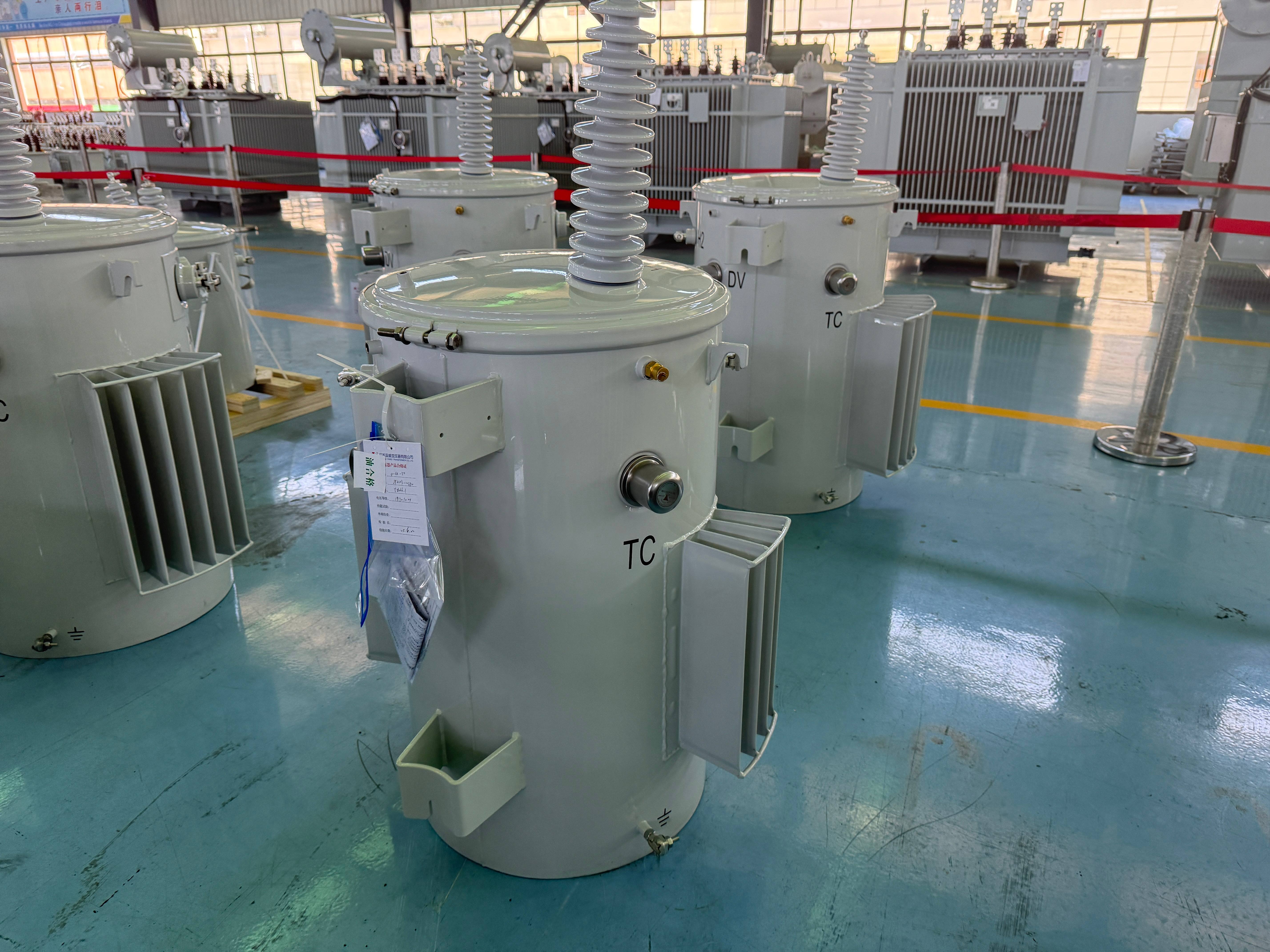

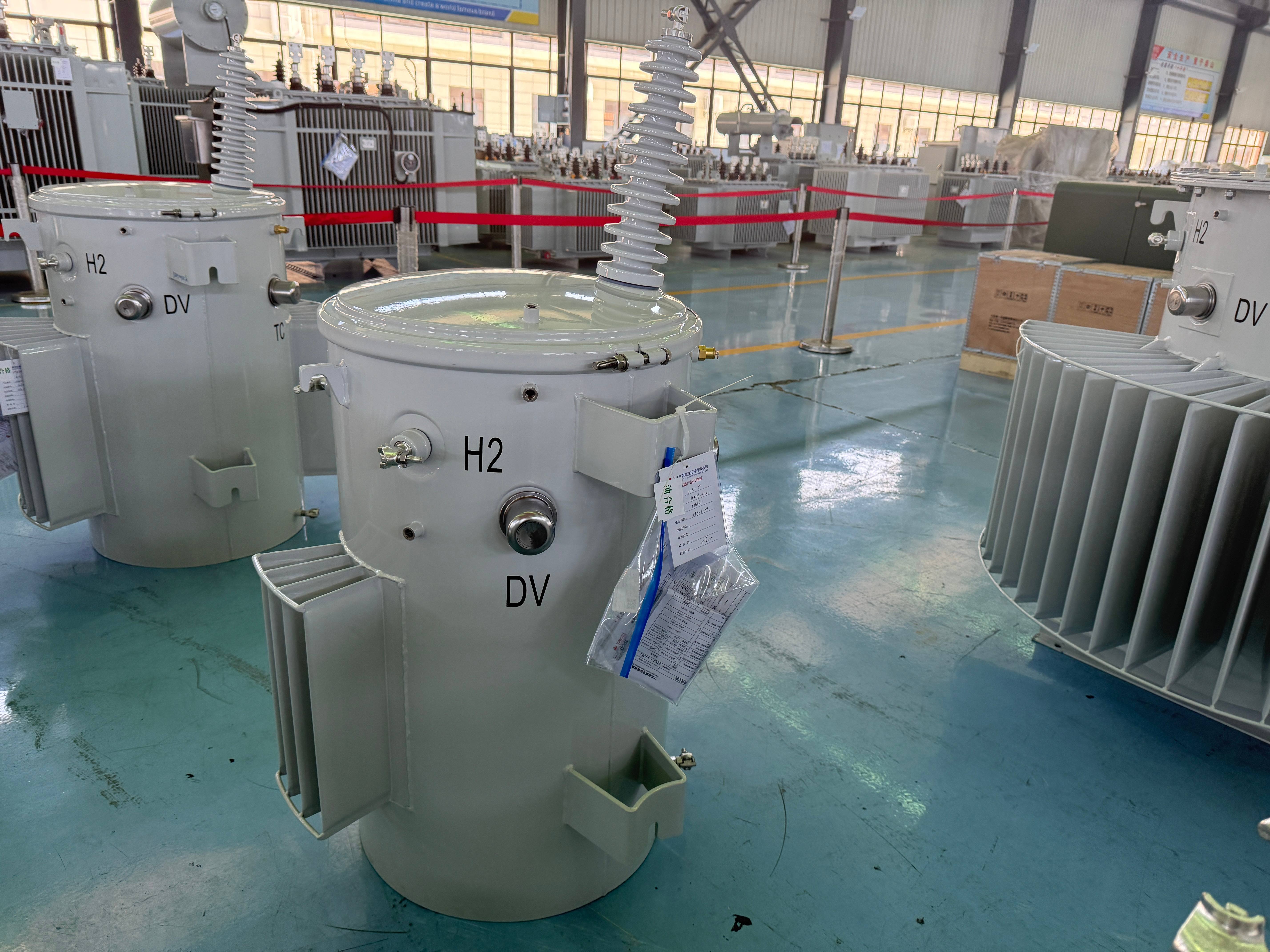

50kVA 34500Grdy/19920V Pole Mounted Transformer

Product description: Engineered and manufactured by Yawei, the single-phase, pole-mounted transformer model 50kVA, 34500GrdY/19920V - 120/240V 139/277V, is primarily deployed to adapt medium-voltage distribution line potentials (typically ranging from 19.9kV to 34.5kV) for end-user applications. A key feature of this unit is its capability to deliver two distinct low-voltage outputs: the common single-phase system of 120/240V, widely used in residential and light commercial settings, and the 139/277V configuration, which is essential for commercial and industrial lighting and equipment. This versatility makes it a fundamental component in the final stage of the power distribution network.   Specification   No. of phases 1 Capacity 50 Primary Voltage 34500Grdy/19920V Secondary Voltage 120/240V 139/277V Frequency 60Hz Temperature Rise 55℃,55/65℃,65℃ Cooling Method ONAN Winding Material Copper/Aluminum Vector Group Ii0 Standards IEEE/ANSI/CSA/DOE/IEC Yawei's M…
