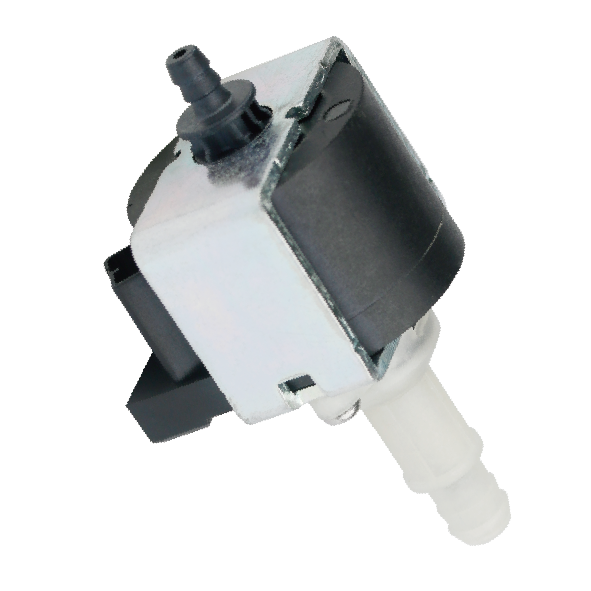

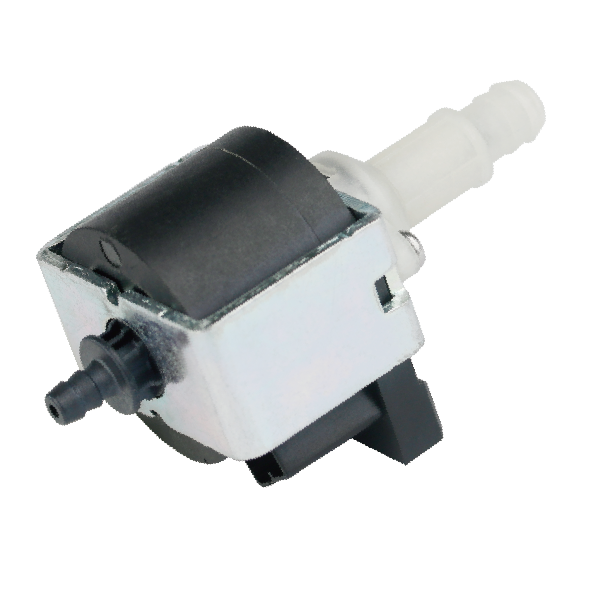

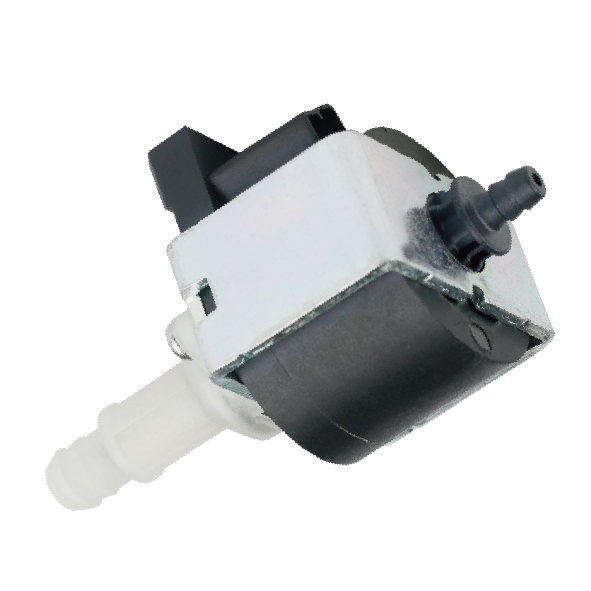

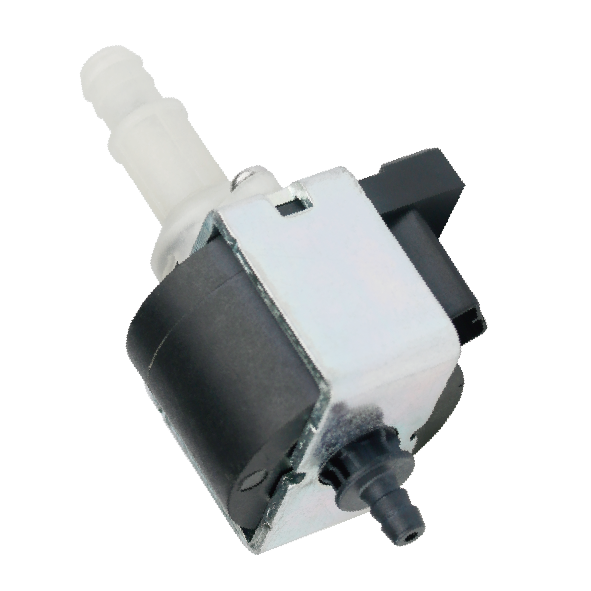

AC230V solenoid water pump for steam mops

AC230V , 50HZ solenoid pump DYX-SPS-01 model Mainly used for steam mops, steam iron, steam oven etc.Micro electromagnetic water pump using electromagnetic drive, high efficiency, relative to the traditional mechanical water pump energy saving about 30%, at the same time can accurately control the flow, reduce energy waste. 1) Structure: Micro electromagnetic water pump is usually composed of electromagnet, valve body, valve, vibration plate, spring, water nozzle and so on. 2) Working state: when the electromagnet is not energized, the valve is closed; When the electromagnet is energized, the electromagnet creates a magnetic field that pulls the valve up, allowing liquid to flow through the valve. 3) Vibrating plate vibration: After the electromagnet is energized, the vibrating plate is sucked up, so that the flow of the water nozzle is opened. At the same time, the spring drives the vibrating plate to vibrate, so that the liquid is constantly sucked in and out. 4)…
