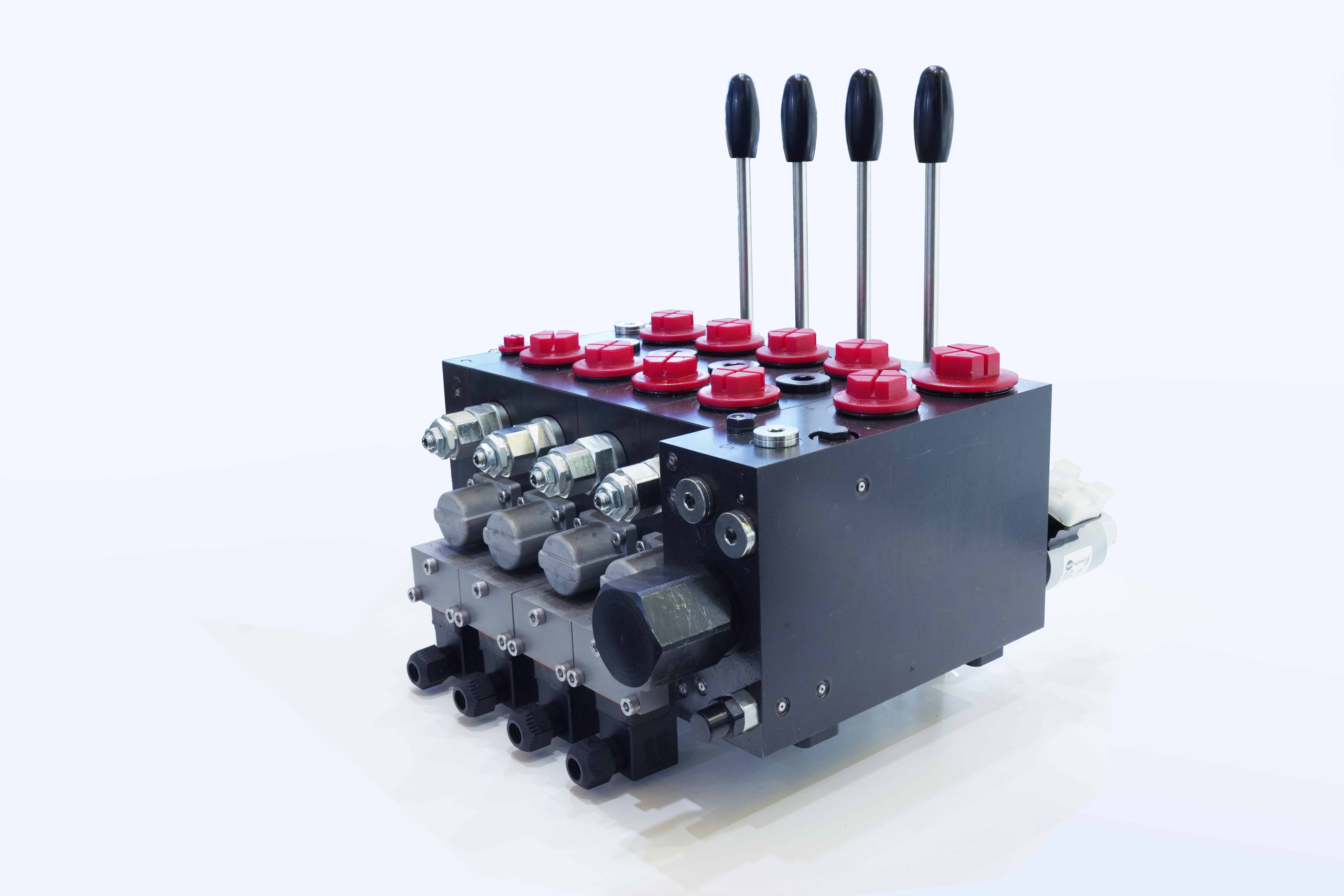

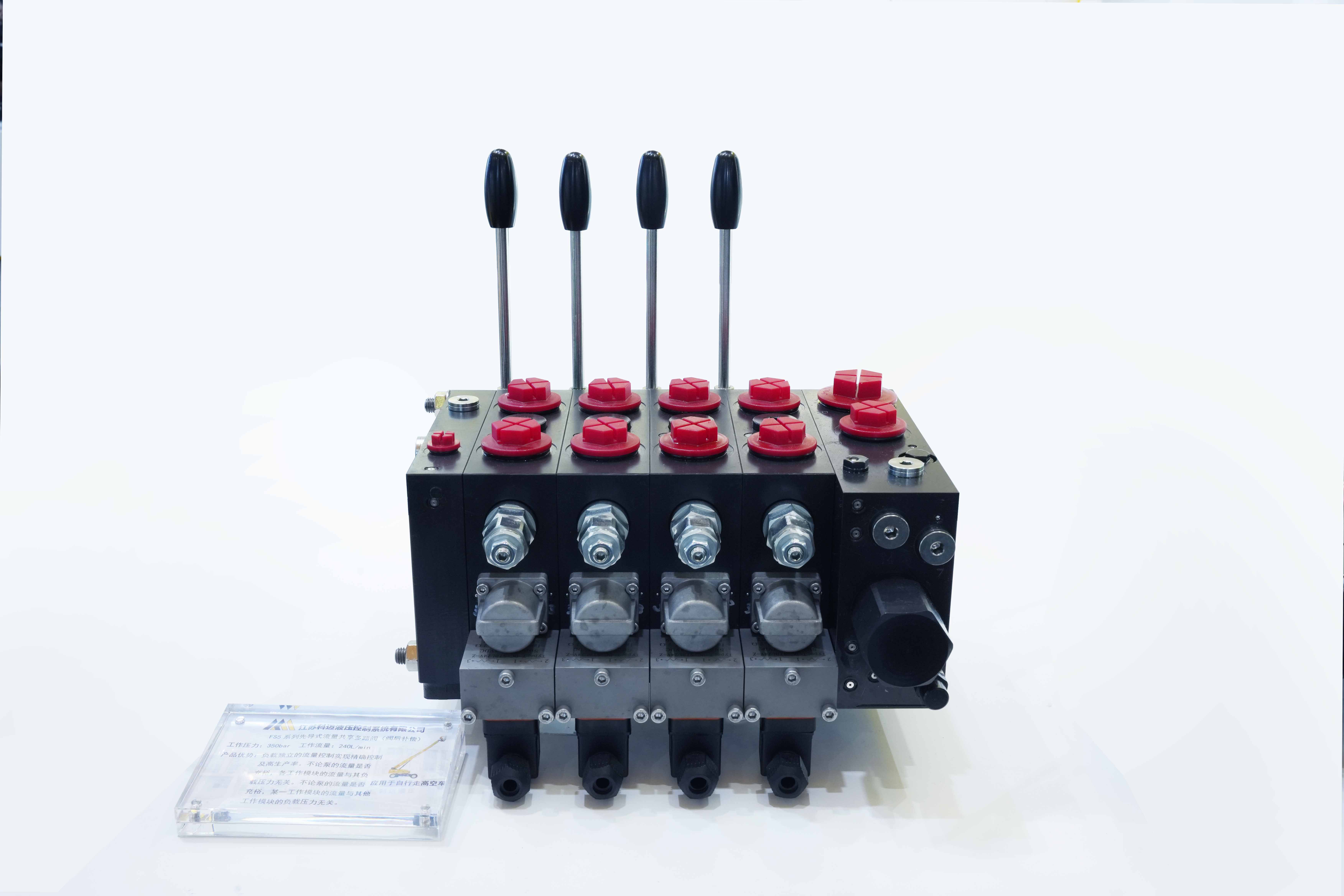

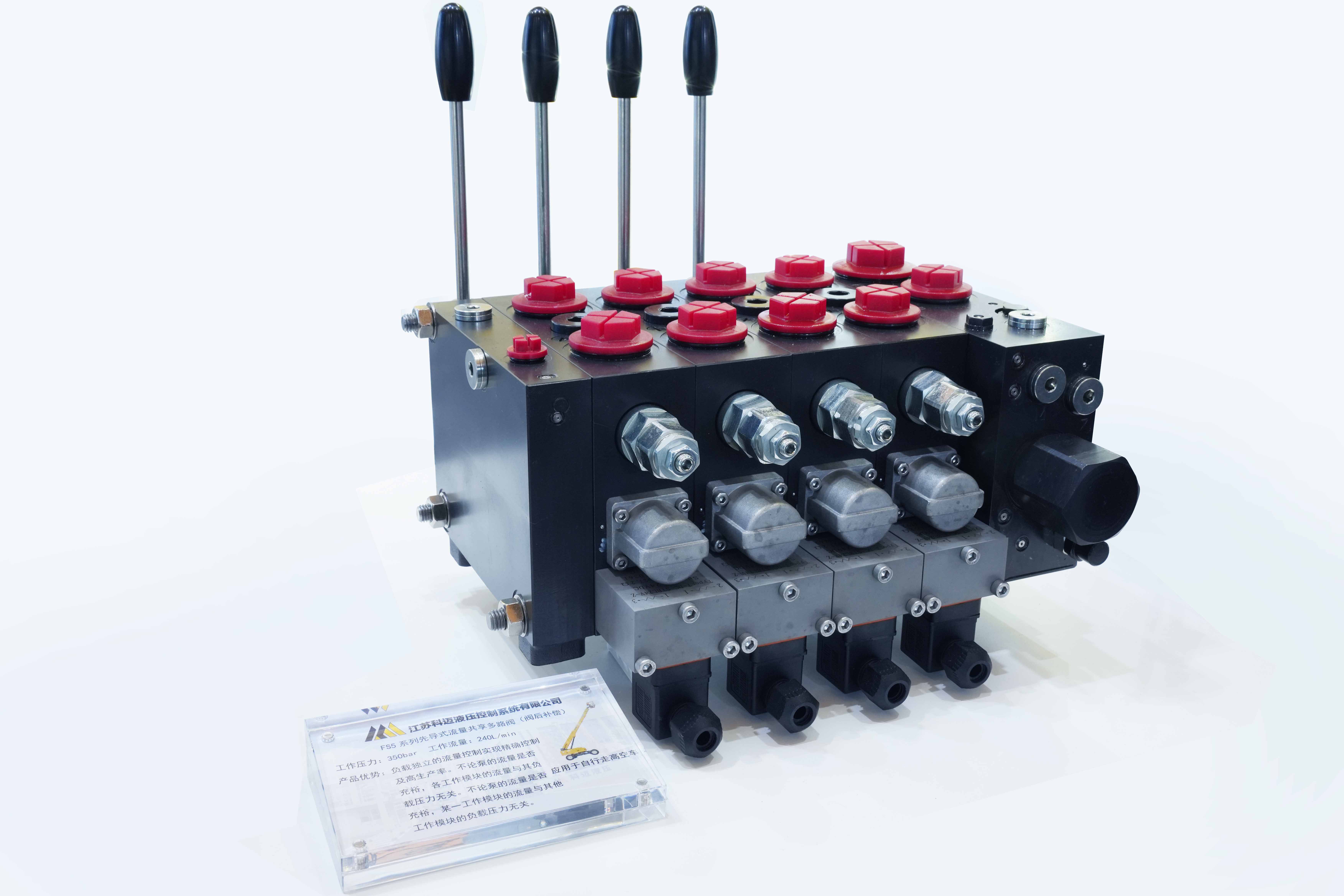

ATEX Load Sensitive electrical Proportional Hydraulic Valve

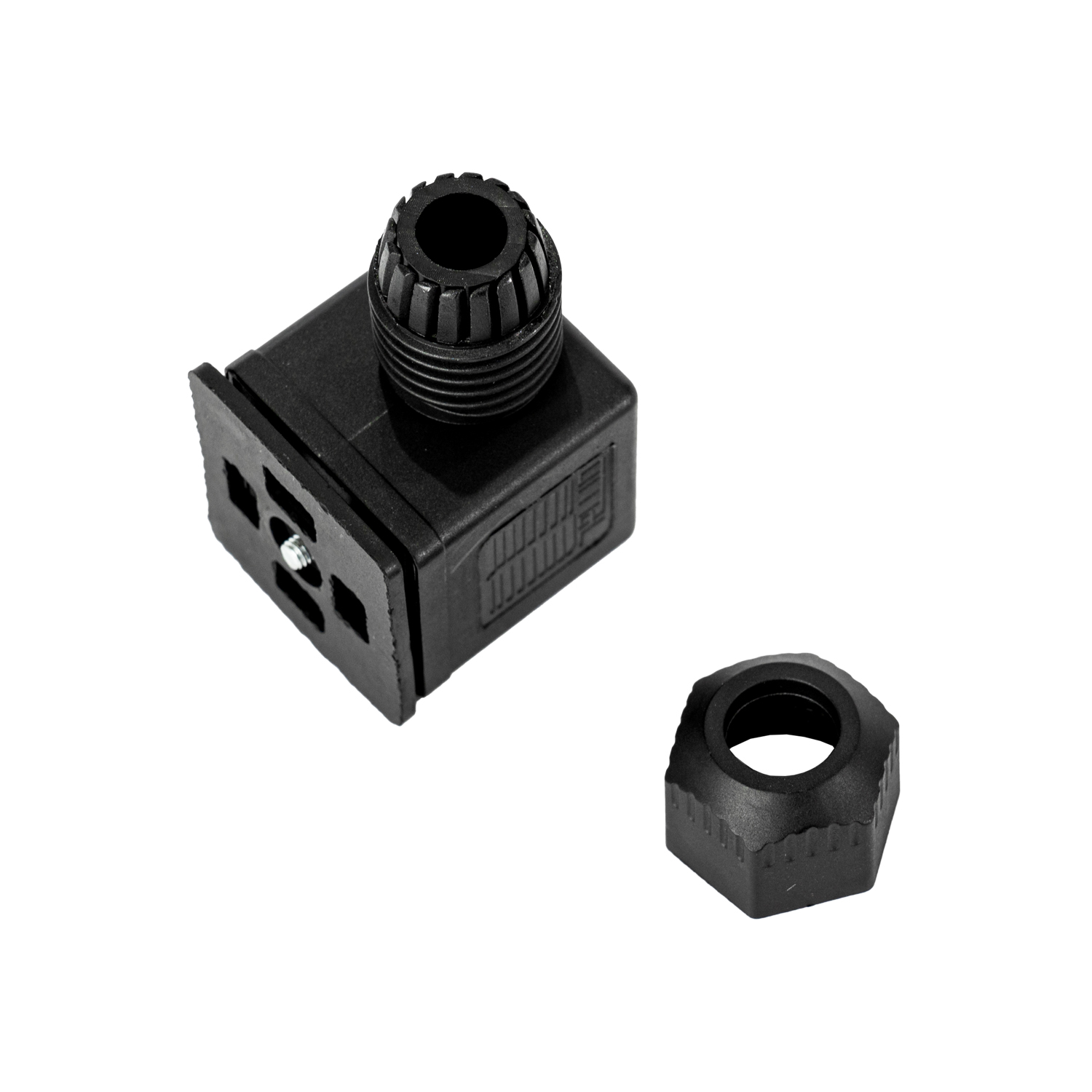

Valve Type: HLPSL 6C1C/220-5 -52 L 160/160 /EA -52 H 160/160 /EA -52 H 160/160 /E -E4-G24Ex-10M-WMCL Technical descriptionHLPSL - used for Fixed volume pump oil supply system with flow control (open loop)  6 - Threaded Connection of port P and port R of the connection block (according to 6 / 45 ISO Standard 288/1) - G 1 1/4 BSPP;C-Additional component:C, standard type; 1 - with a three-way pressure reducing valve, it is used to supply control oil (control pressure should be about 20 bar);C-2/2-way magnetic ball valve for system unloading: C, without magnetic ball valve; 5 – size 5;220- the main satey pressure 220bar; 3EA- total 3 spool valve sections with coil;2-A and B prot (according to 6 / 45 ISO Standard 288/1) - G 1 BSPP;L,H: As bellow image;   160/160- A and B prot max flow 160 LPM;G24- 24VDC,DIN 4365010M- with cable 10m;   Ex-anti-explosion type. Grade I,Ex mb I Mb;   WMCL – Supplier's markin…
