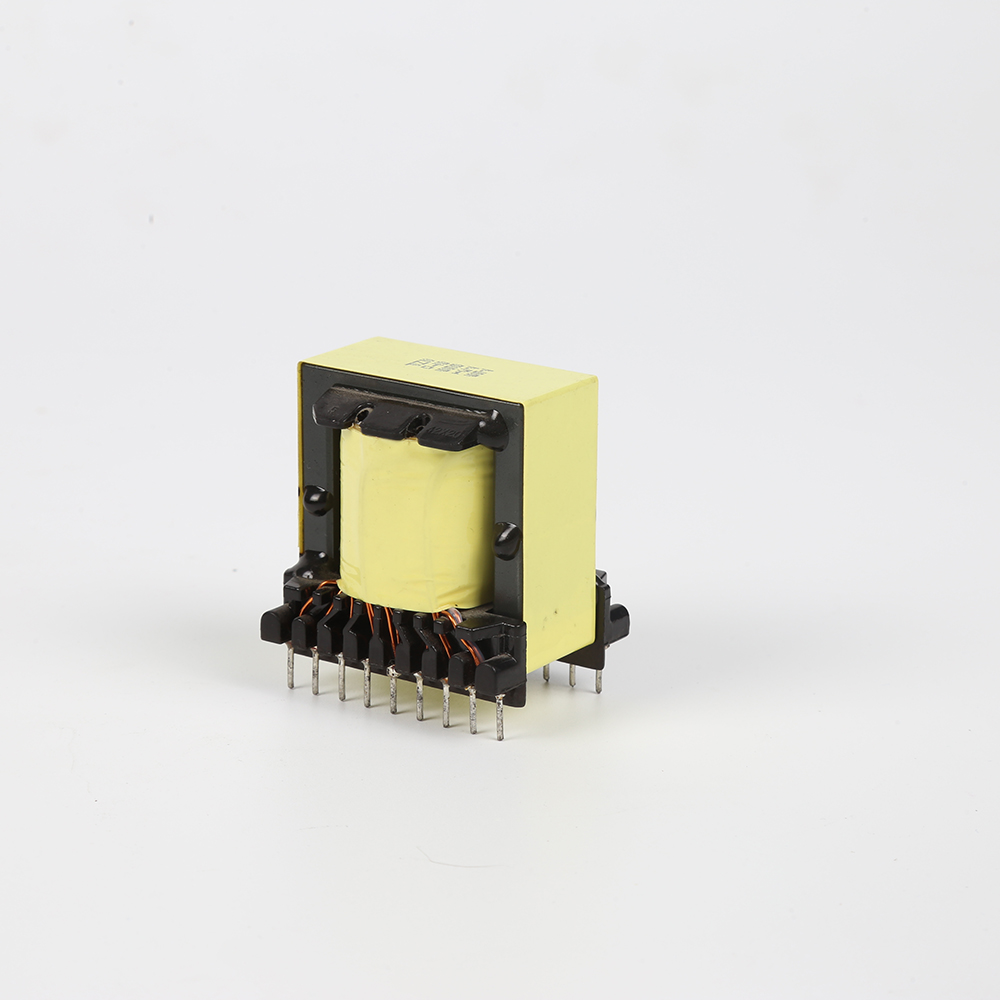

EE42 switching power high-frequency transformer

A switching power high-frequency transformer is a type of transformer used in switching power supplies. It is designed to operate at high frequencies, typically in the range of several kHz to several MHz, and is used to step up or step down the voltage of the power supply. The transformer consists of a primary winding and one or more secondary windings, which are wound around a magnetic core made of materials such as ferrite or powdered iron. The primary winding is connected to the input voltage source, while the secondary winding is connected to the load. The high-frequency operation of the transformer allows for smaller and lighter components to be used in the power supply, making it more efficient and cost-effective. However, the high-frequency operation also requires careful design and construction to minimize losses and ensure proper operation. Overall, switching power high-frequency transformers play a crucial role in modern power electronics, enabling efficient and reliable…
