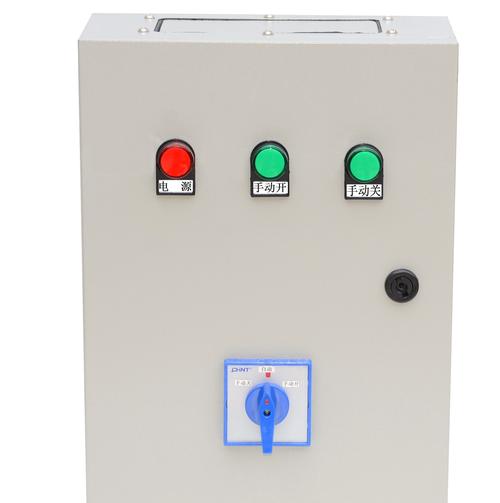

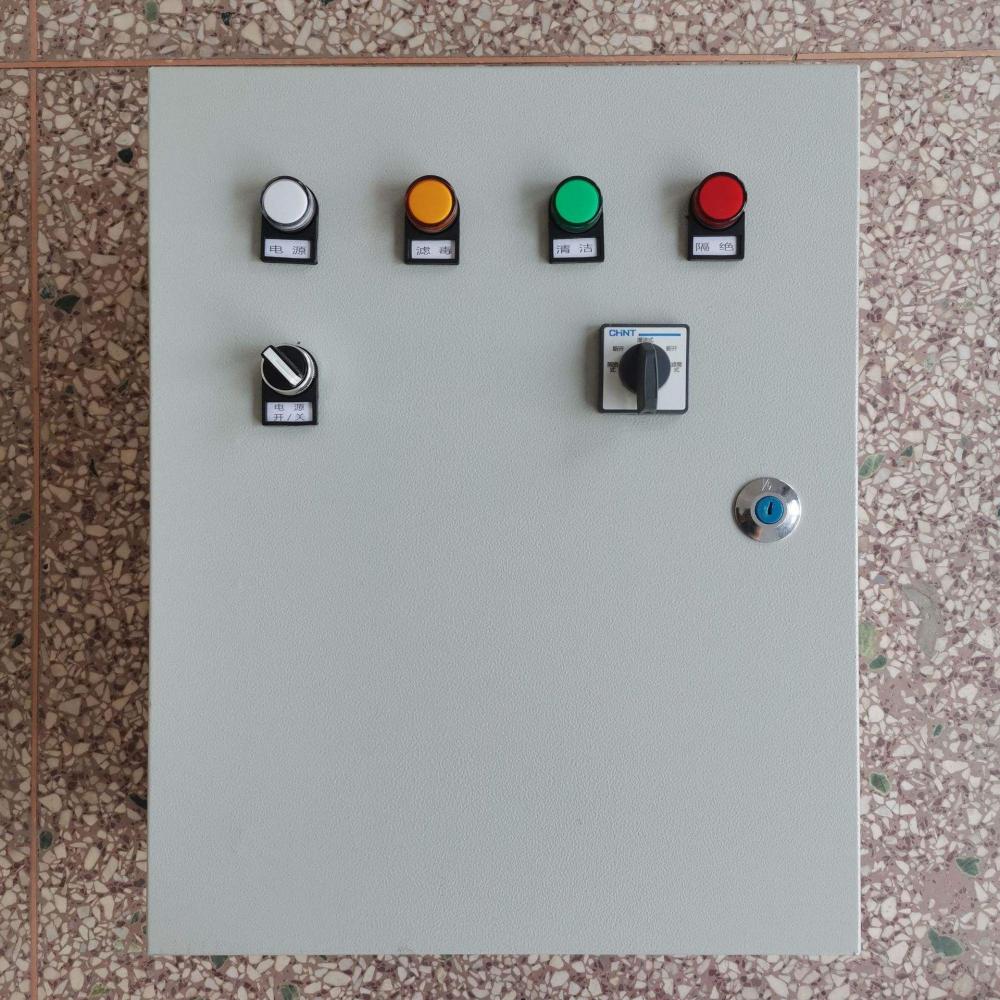

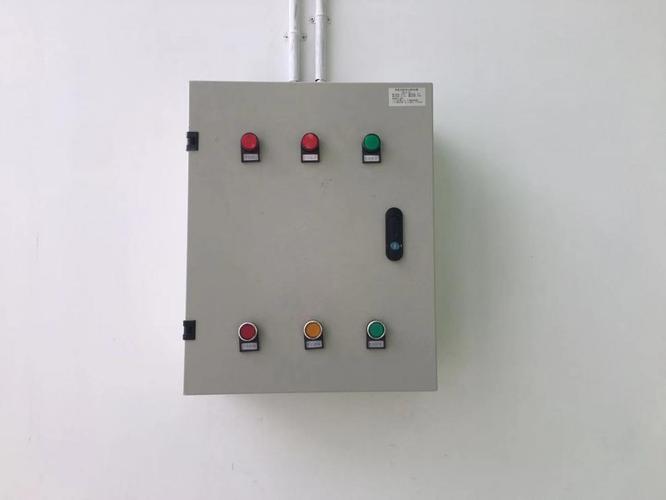

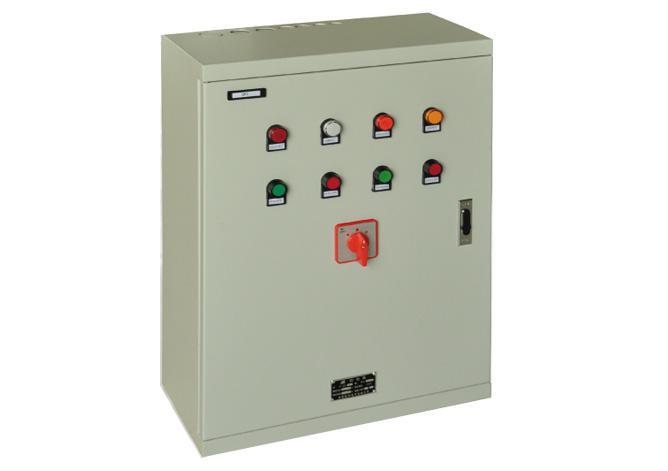

Electrical Control System cabinet

The role of the electrical control system: for a machine tool or a piece of equipment, motion control, status The monitoring and control of other switching quantities require an electrical control system to complete. It can be said that electrical control The control system is the brain of the machine tool. The basis for this system is to select an appropriately designed electrical control cabinet. Design principle: The electrical control system cabinet includes a cabinet body and a cabinet door set on the cabinet body. There are heat sinks on the opposite side walls of the cabinet body. The heat sink pipes are connected with the inside of the cabinet body. The heat sink pipes are located in the cabinet. A fixed mesh panel is provided on one side inside the cabinet, and a protective mesh panel is provided on one side of the heat sink outside the cabinet. A cooling fan is installed on the fixed mesh panel; the heat sinks on the side walls on both sides alternate…
