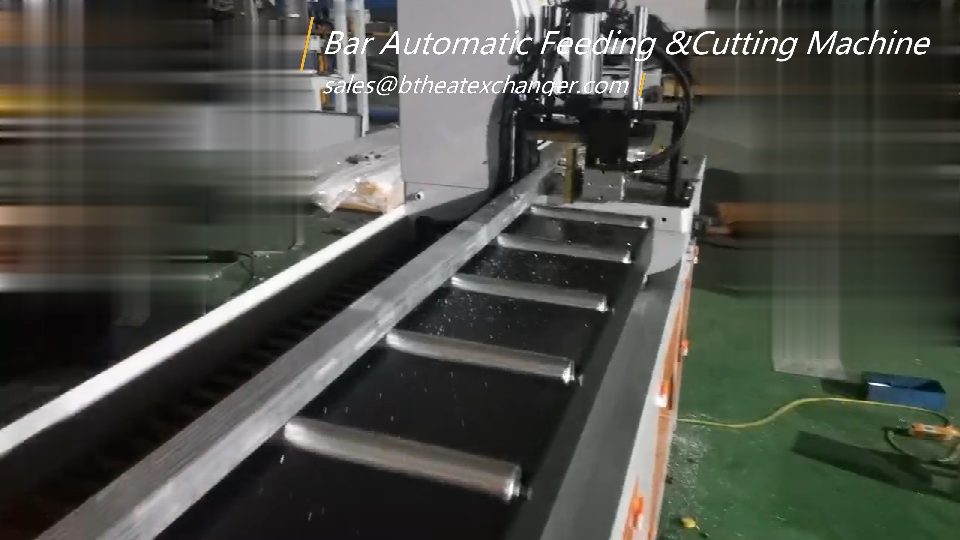

Full Automatic Bar Feeding and Cutting Machine

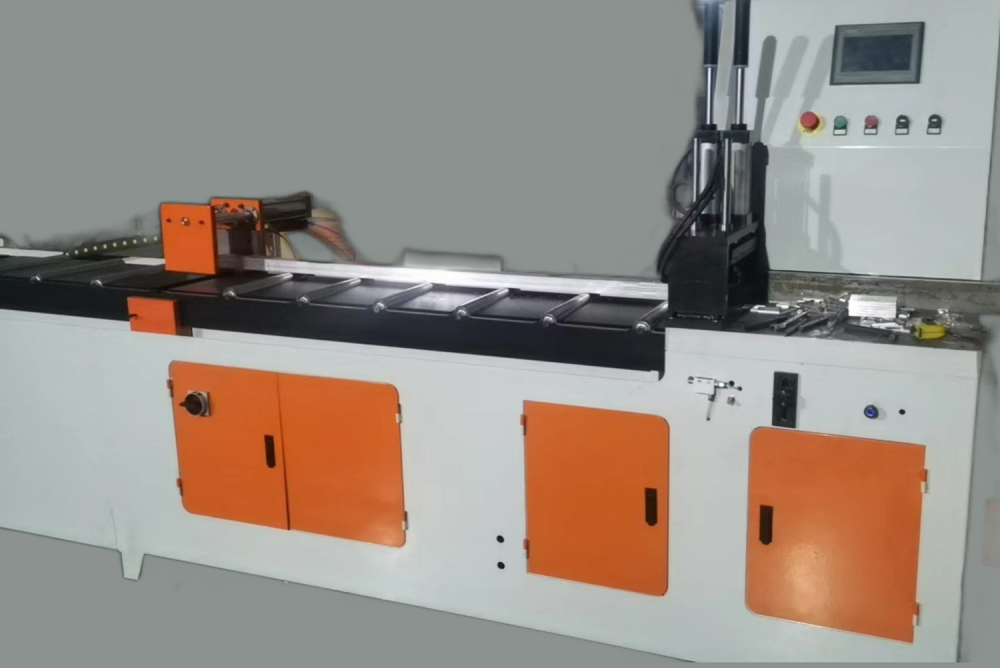

Automatic Bar Feeding and Cutting Machine adopts PLC control system, uses touch screen to set control parameters to control servo motor. The servo feeding is through high-precision ball screw to automatically transport the bars. Meanwhile, the sawing machine automatically cuts the bars. The automatic feeding and cutting bar machine greatly improves production efficiency and reduce labor. The bar cutting machines have been widely used for heat exchanger production. Aluminum Bar Automatic Feeding and Cutting Machine Main Parameters Set cutting length: 30~2500mm Sawing material: Aluminum bar Cutting height: 120mm Sawing motor power: 4kw Conveying motor power: about 3kw Conveying motor speed: maximum 20m/min,adjustable Operation control: touch screen  Aluminum Bar Automatic Feeding and Cutting Machine's Feature 1. Servo motor, PLC control 2. Touch screen operation; 3. High-precision ball screw for feeding 4. Automatic oil spraye…
