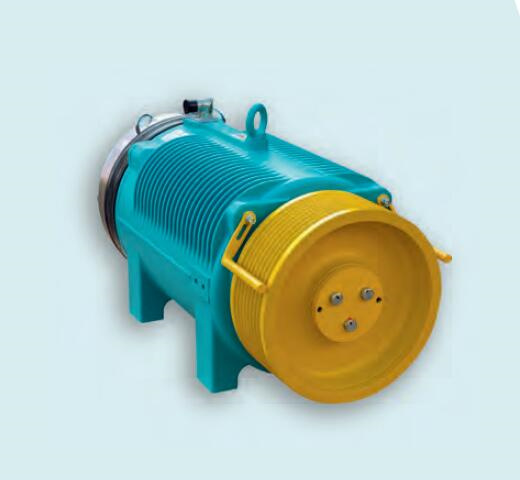

Gearless Traction Machine Permanent magnet synchronous motor

Gearless Traction Machine Permanent magnet synchronous motor Product Description 1. Conforms to EN 81-20/50 2. The wire rope tension force is consistent in any direction 3. Perfectly matched magnet design ensures low vibration and low noise 4. Modular system provides multiple options 5. Sturdy structure, the maximum shaft load Fs at the traction wheel can be 45,000N 6. Safety brake is equipped with electromagnetic release device, manual release device is optional, contact brake control 7. EC type test certification according to EN 81-20/50, can be used for UCM solutions 8. Synchronous motor, 20-pole, equipped with high-efficiency permanent magnets, heat resistance class 155 (F), temperature control, cable connection or junction box or plug connection 9. Various options are available according to voltage, speed, torque, measuring system, braking torque and traction…
