High Insulation Dry-type Transformer 10kV SC10 SCB10

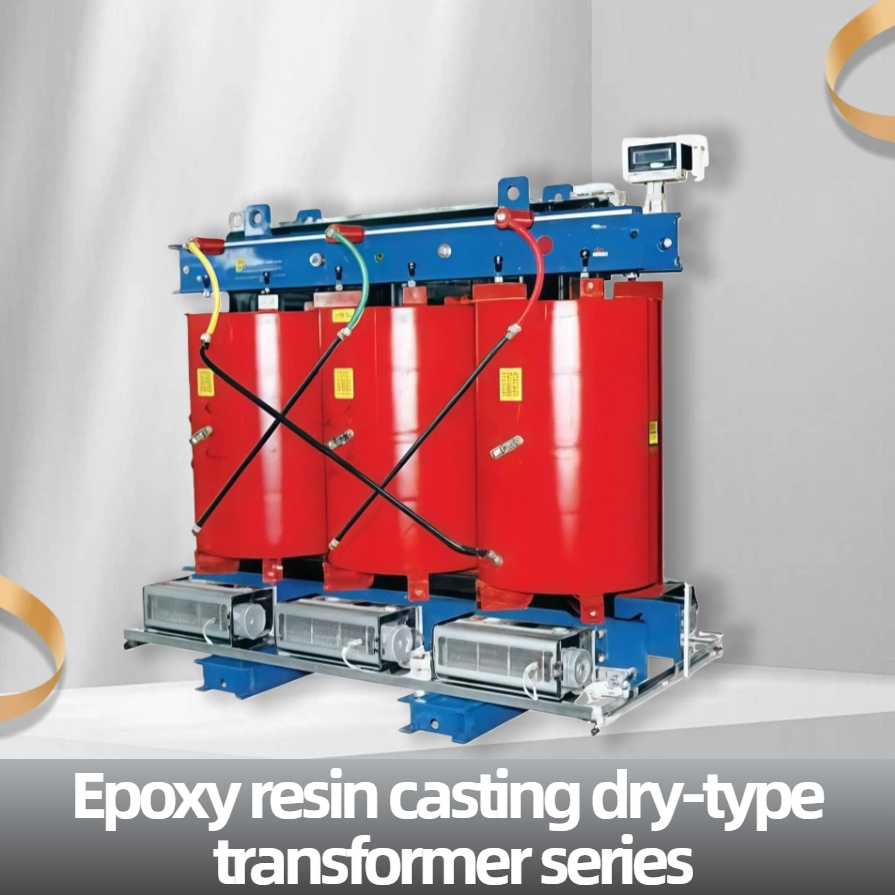

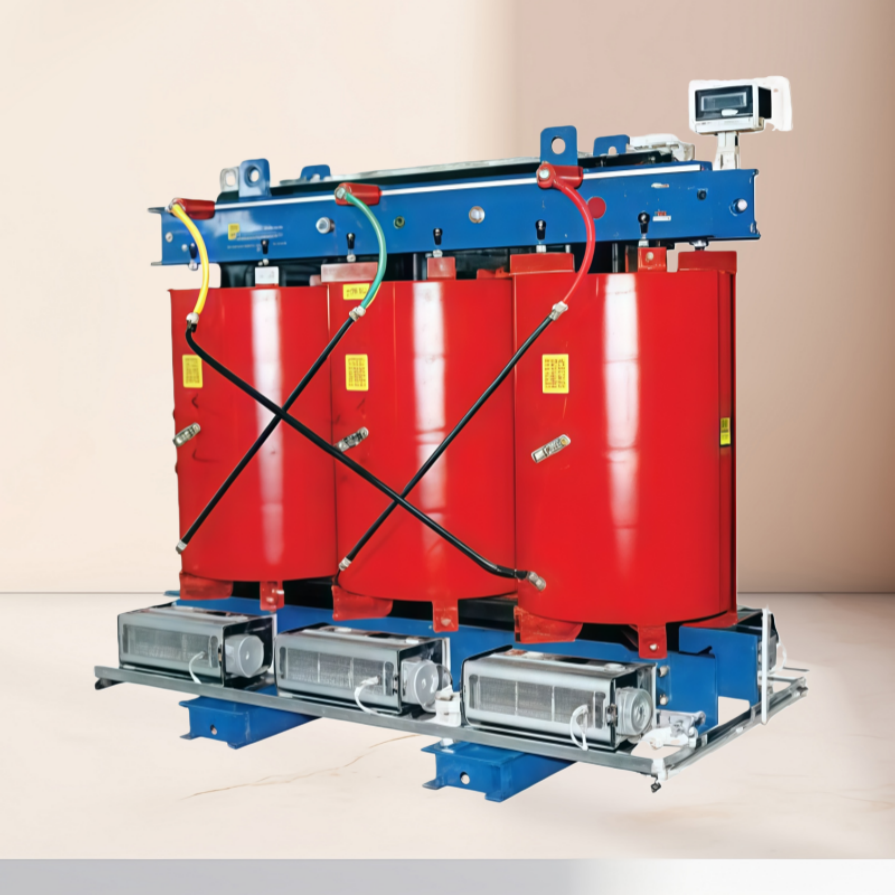

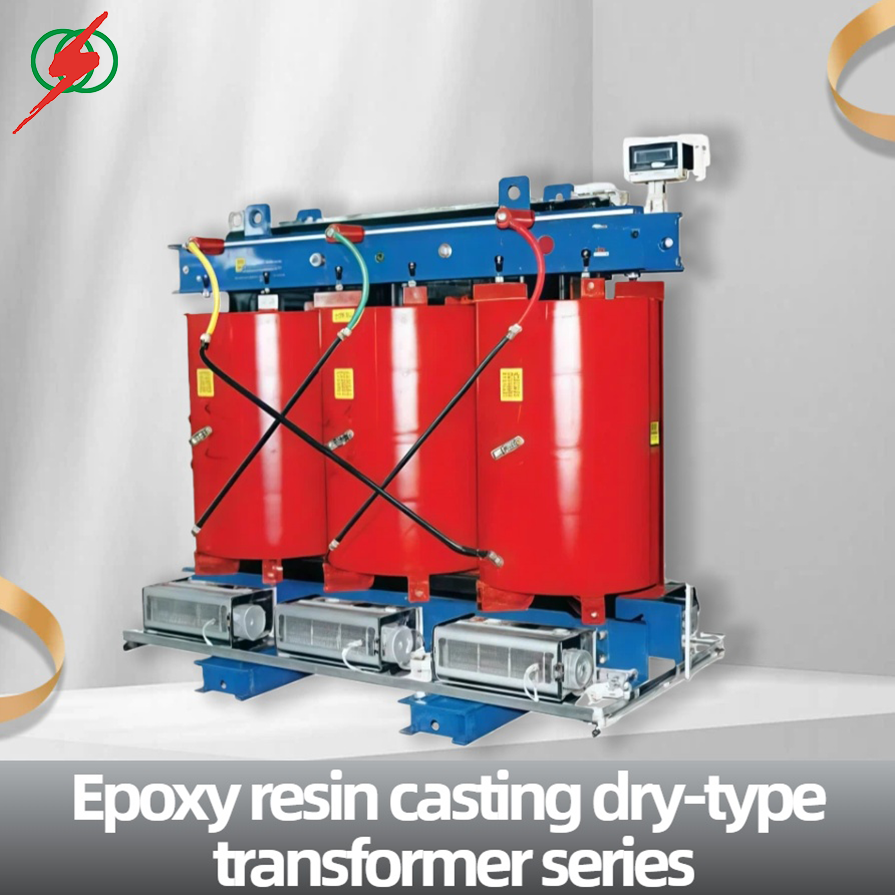

The SC10/SCB10 series epoxy cast dry-type transformers feature low loss and high insulation as their core advantages. They are the preferred distribution equipment for the 10kV voltage level. Their three-phase epoxy resin casting structure is oil-free, completely eliminating the risks of fire and leakage. They can be directly installed at the load center, saving construction costs. The low-voltage foil-type coils are wound with high-quality copper foil and combined with the vacuum casting process, resulting in excellent insulation performance and extremely low local discharge. The capacity ranges from 30kVA to 2500kVA, covering the entire range. The no-load loss is as low as 190W, and the load loss is optimized for long-term operation, significantly reducing electricity costs. The equipment supports high-voltage multi-voltage level adjustment, flexible connection group configuration, and insulation level meets the LI75AC35/AC3 standard, suitable for mainstream connection methods such…
