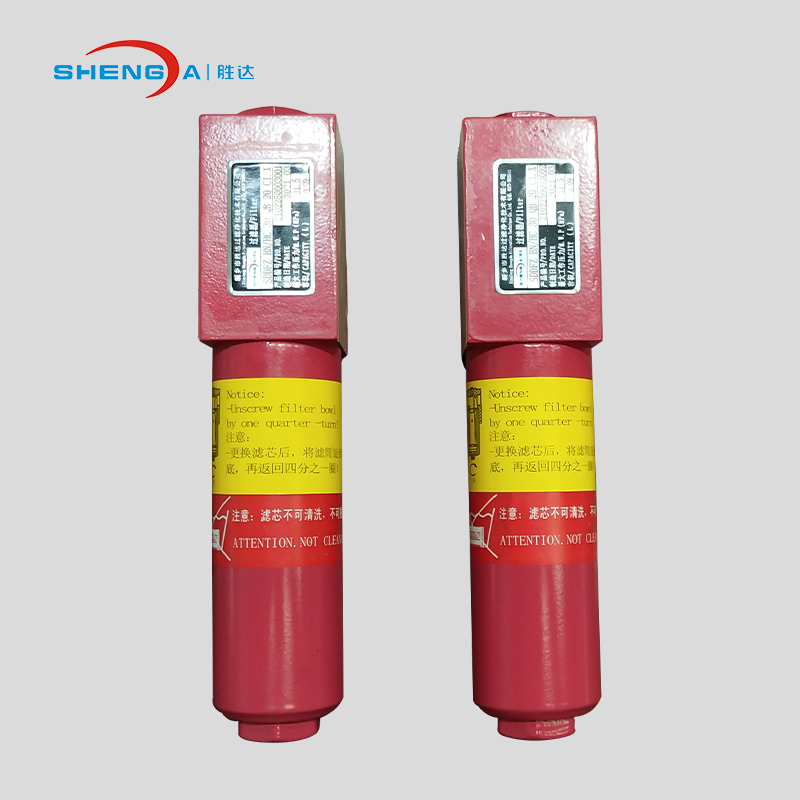

High Pressure Lubrication Oil Filter Assembly

Hydraulic high pressure line oil filter housing ----up to 80 L/min ---up to 315bar ---material: steel 1. Technical Specifications 1.1 Filter Housing Construction The filter housings are designed in accordance with international regulations. They consist of a filter head and a screw-in filter bowl. Standard equipment: *  Service access on the right *  Without clogging indicator connection 1.2  Filter Elements Max. Allowable D.P.: BH/HC： 210bar              V: 210bar   2.    Description Mounting                as pressure oil filter for flange mounting Temperature range    - 10 ℃ ~ + 100 ℃ Pressure setting of clogging indicator △ Pa= 5bar -0.5bar (others on request)…
