Home appliance compressor seal terminal

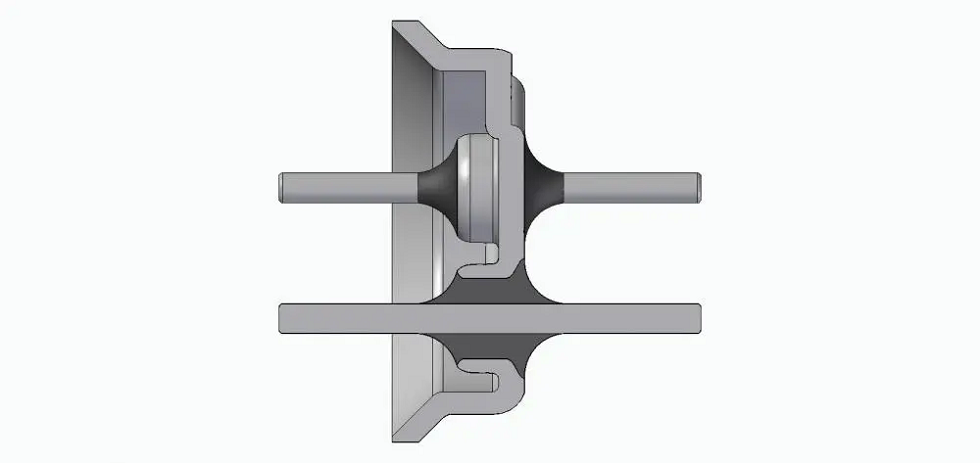

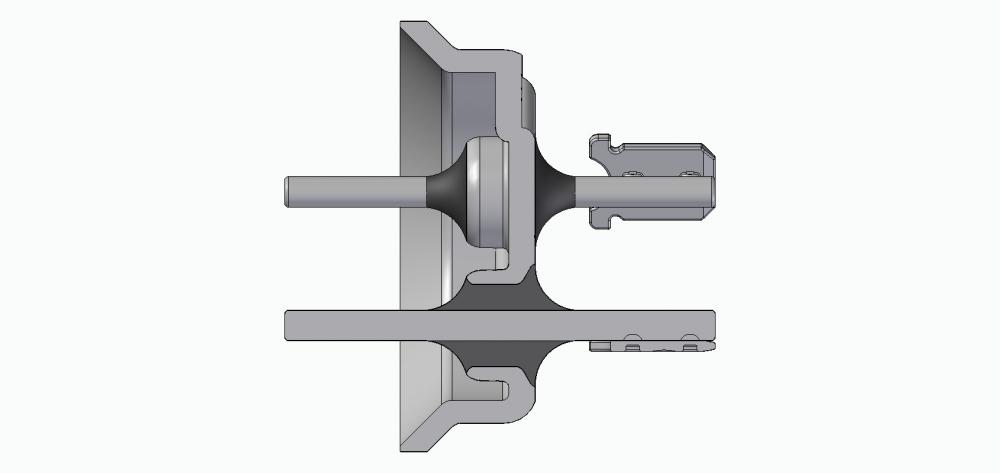

Model: YJ-1 Application field: Refrigerators, air conditioners, and other sealed compressors. Each glass-metal sealing terminal for the compressor is composed of a metal base, multiple steel needles, and a glass body. The glass body mainly uses customized sodium barium glass, which has extremely high electrical insulation. According to customer needs, we can customize the length of the steel needle, the top solder angle, and the addition of ceramics on the inside. Product advantages: Our glass metal sealing products for compressors have various excellent performances; High sealing performance; High electrical performance. Technical parameters: CAP: Minimum outer diameter: 28.5mm Maximum outer diameter: 32.6mm Thickness: 1.45mm PIN: Material: Iron Chrome Diameter: 2.3mm Length: 27mm Solder Lugs: External: PIN Internal: PIN Minimum distance: Distance along face: Spatial distance: External: 3.2mm…
