Hydraulic Flow Control Valves

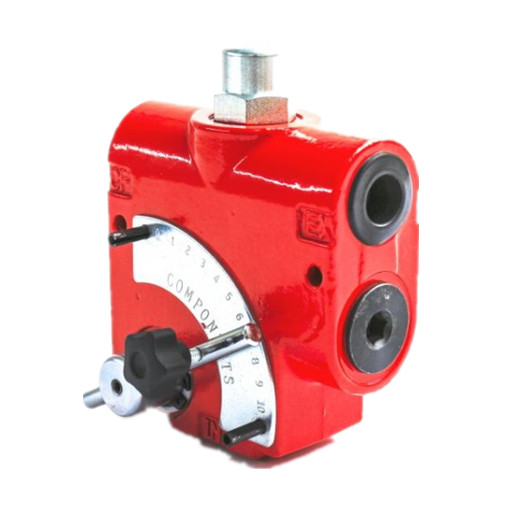

Introduction of Flow Control Valve LKF model is a full range pressure compensating variable flow control. It is designed so that the orifice area varies as the lever is rotated. The outlet flow is smooth and constant regardless of the pressure on the control flow port. An adjustable ball spring relief allows for pressure compensated flow up to the pressure setting on the relief. Relief valve are preset at 1500 psi and field adjustable from 750 to 3000 psi. Specifications Dimensions Curve of Flow
