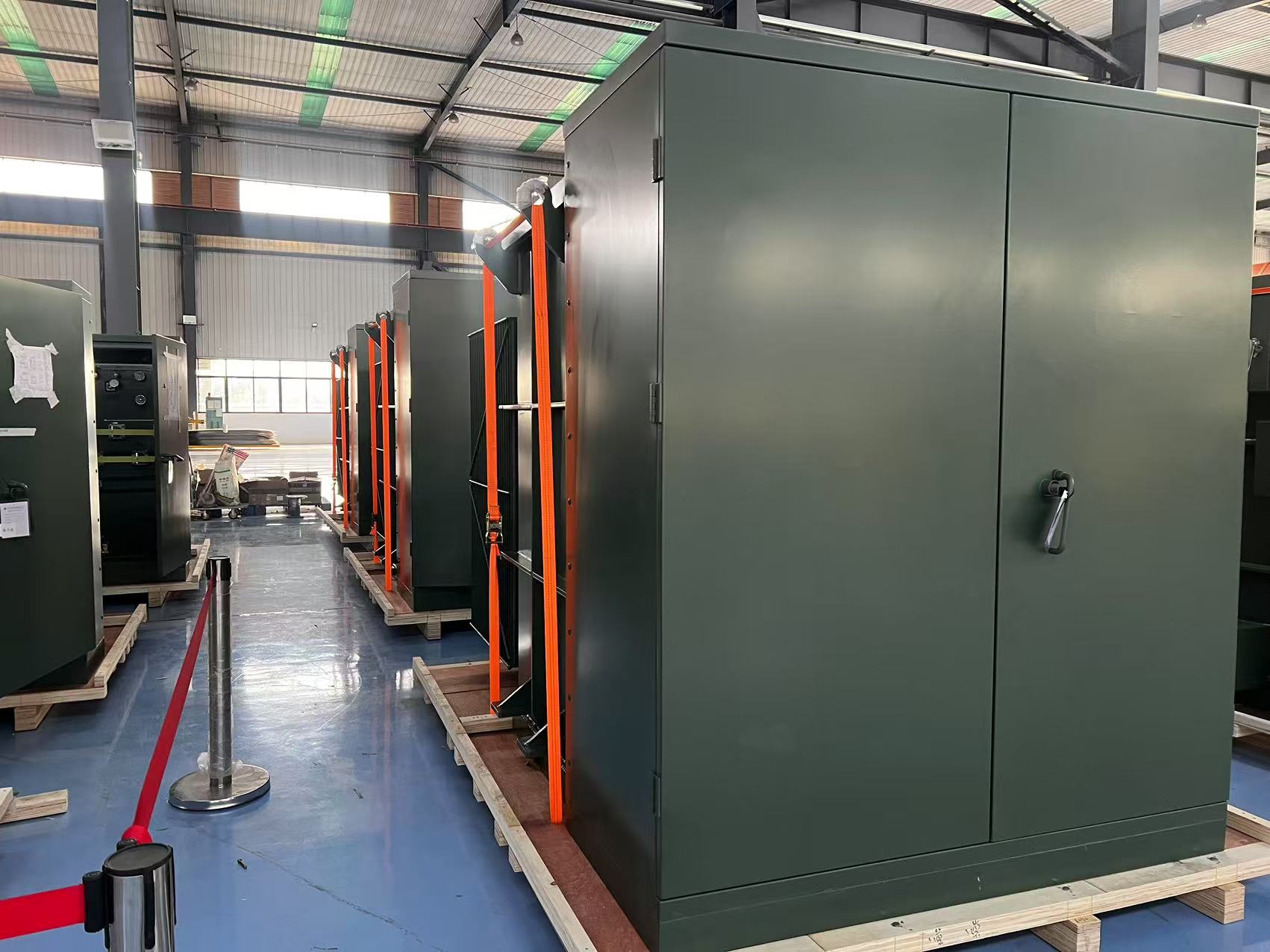

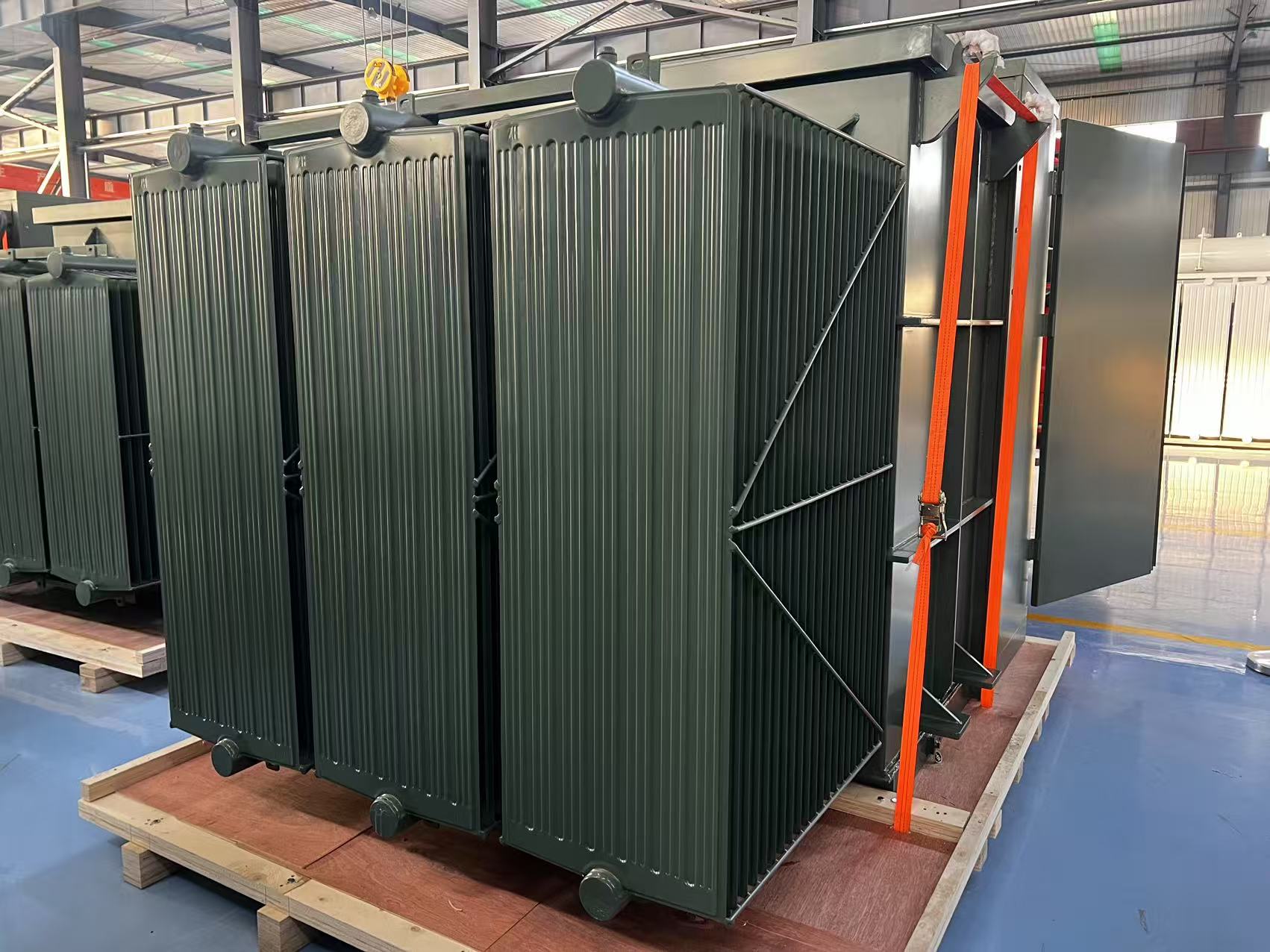

IEEE 2250KVA 60Hz Three Phase Pad Mounted Transformer

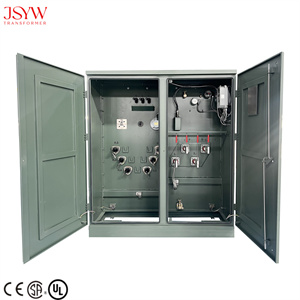

Pad mounted  transformer  Pad mounted  transformer is compact distribution equipment that integrates transformers, high-voltage load switches, fuses, and other devices into a sealed oil tank. They are widely used in urban power grids, residential communities, commercial centers, industrial and mining enterprises, and other locations. The following are their main features, advantages and disadvantages, and application areas: 1. Compact Structure The transformer, high-voltage load switch, fuses, and other components are all housed within the oil tank. 2. Flexible Power Supply Configuration It can be used for both ring network power supply and terminal power supply, with easy conversion between the two, thereby enhancing power supply reliability. 3. Strong overload capacity Allows short-term overloads (e.g., 2 times the rated load for 2 hours, or 1.6 times the rated load for 7 hours) without affecting the service life. 4. Comprehensive protection measures Dual fuse protection is employed…
