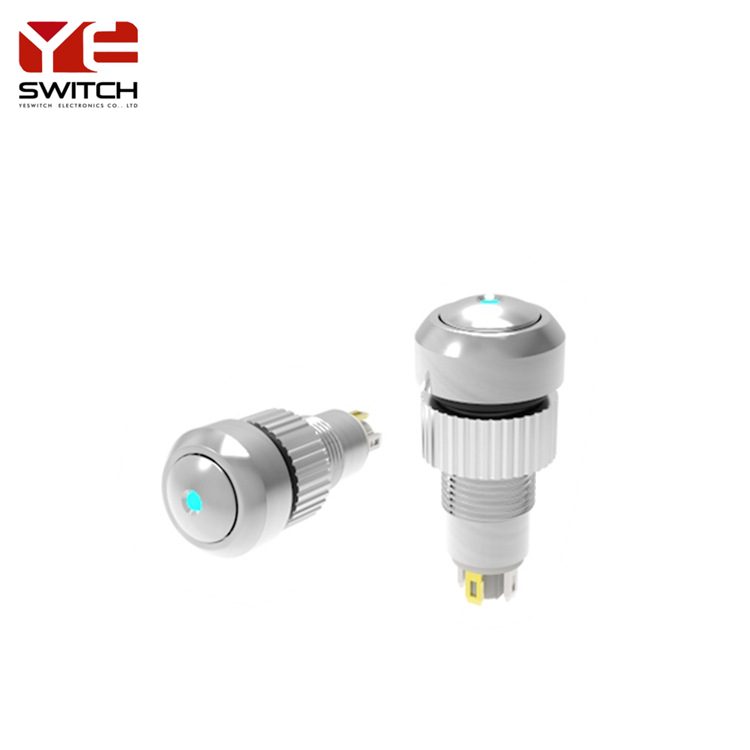

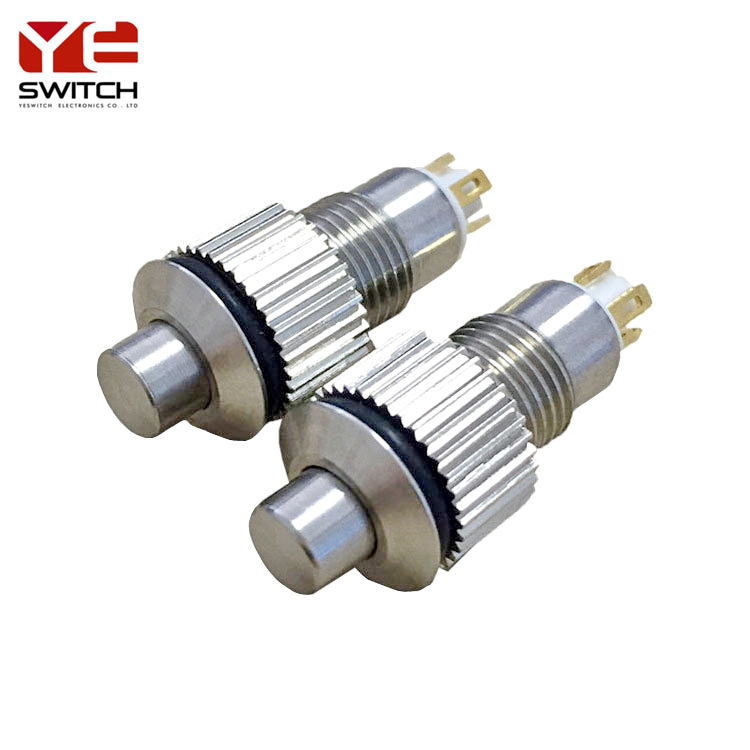

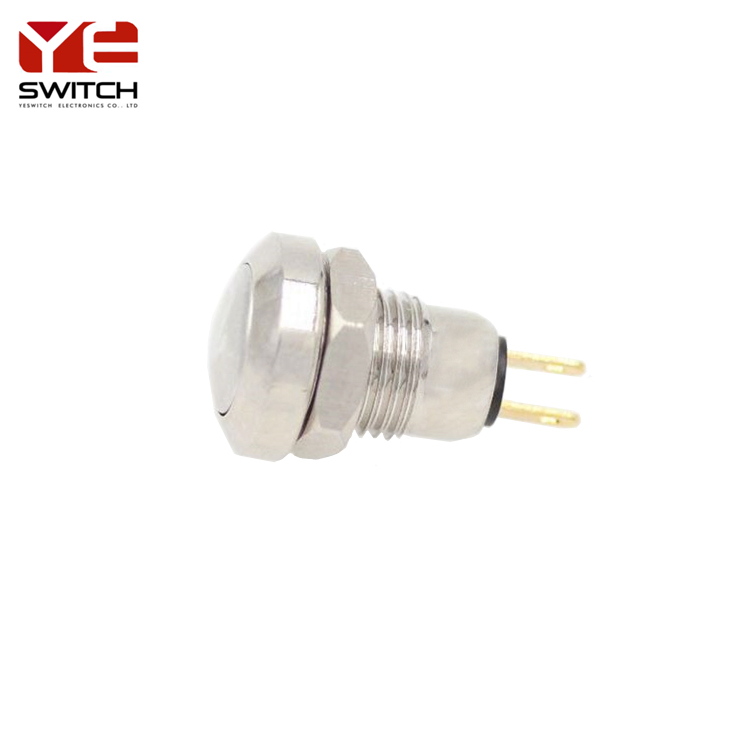

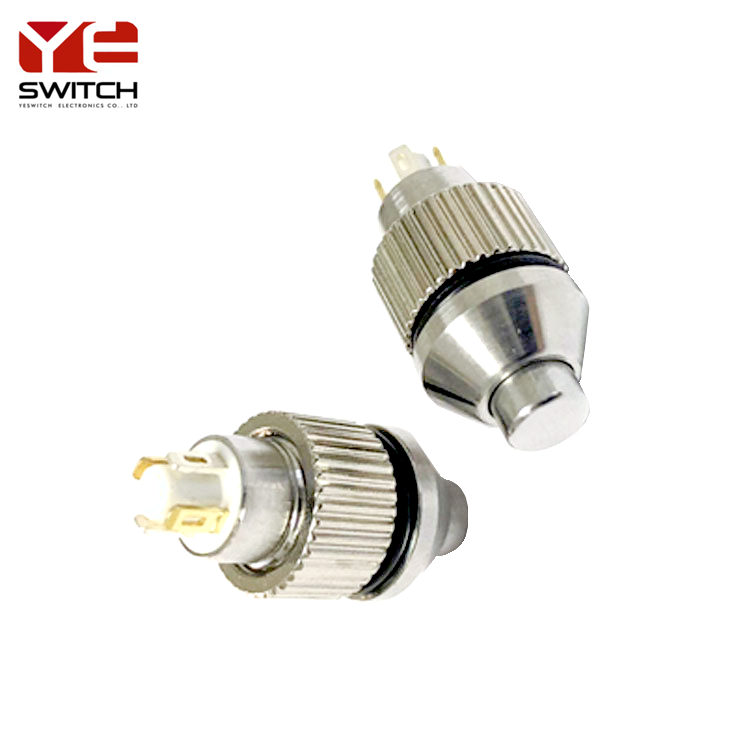

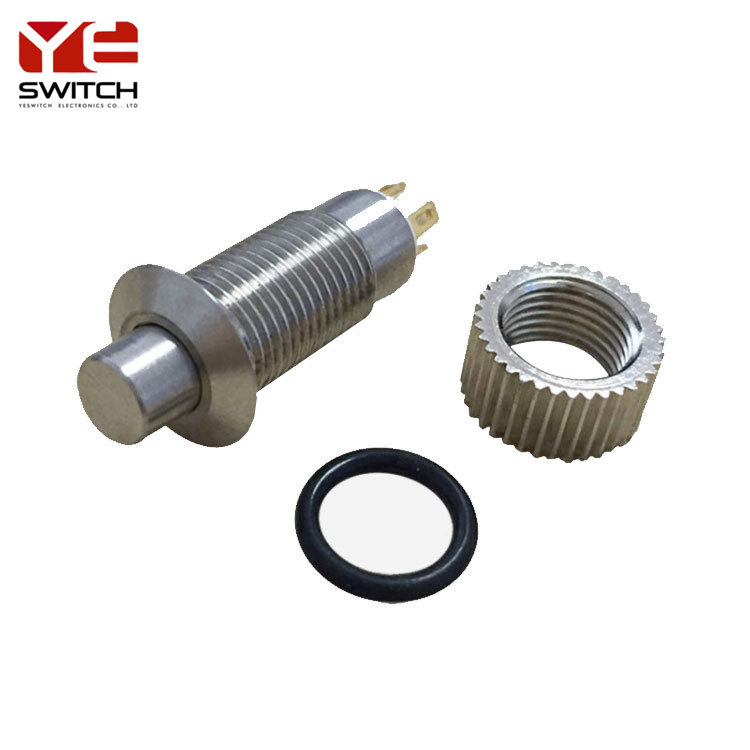

IP68 8mm Metal Pushbutton Switches

8mm Metal Pushbutton Switches SAFETY/QUALITY APPROVALS SGS/REACH/IP68   SPECIFICATIONS Panel Thickness: Ø8.20mm Contact Rating: 0.3A 12VDC Mechanical Life: Momentary 200,000 cycles   Self-lock 100,000 cycles Electrical Life: 50,000 make-and-break cycles at full load Torque: 5~14Nm Travel: About 3.0mm Operation Pressure: 2.5±1N  Contact Resistance: 50 mΩ max.  Insulation Resistance: 100MΩ min. Dielectric Strength: 1,000 Vrms @sea level. Operating Temperature: -20°C to 85°C Ingress Protection: IP68   MATERIALS BUSHING : Stainless Steel / Nickel plated brass / Aluminum alloy BASE : PBT, PC ACTUATOR : PC ; Stainless Steel / Nickel plated brass / Aluminum alloy INNER ASSEMBLY : POM / PA66.  SPRING : Spring steel. SEALING : Sillicone. O-Ring : Sillicone TERMINAL : Brass,with silver or gold plated. HEX NUT : Nickel plated brass   Led: 1.8V/3V/6V/12V/24V/36V/48V/110V/2…
