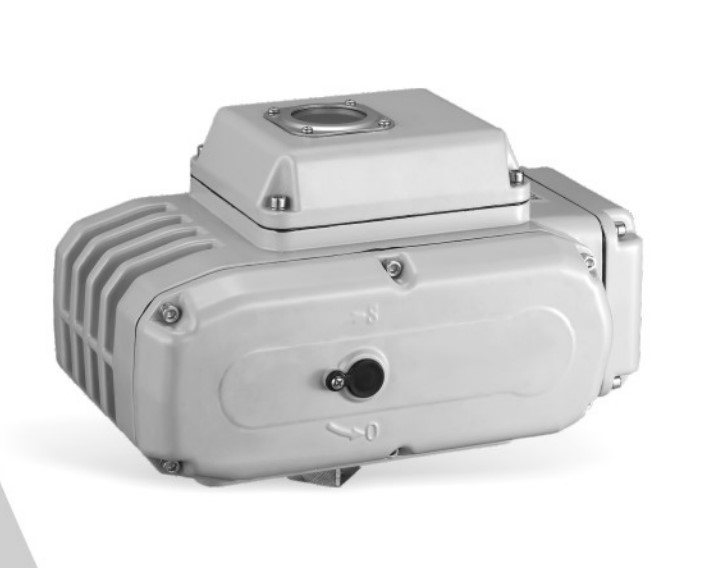

JC-MD-100 angular travel electric actuator(50hz)

The angular travel electric actuator is a servo actuator that accepts the control signal of the host computer or instrument, automatically controls the mechanical corner motion, and at the same time feedbacks the field corner position back to the host computer or instrument.Widely used in central air conditioning, hydropower, chemical, petroleum, metallurgy, heating, light industry and other control places that need automatic rotation/stroke, the series of actuators produced by our company have absorbed many domestic and foreign brands with the following characteristics The product adopts standard imported reversible AC motor, without oil cooling. When there is no signal, the motor does not work, and the actuator is in standby state, which extends the working life of the motor and the actuator. Its position sensor adopts the sealed large size conductive plastic technology of all-aluminum alloy, its independent linearity reaches more than 0.1%, the service life is gr…
