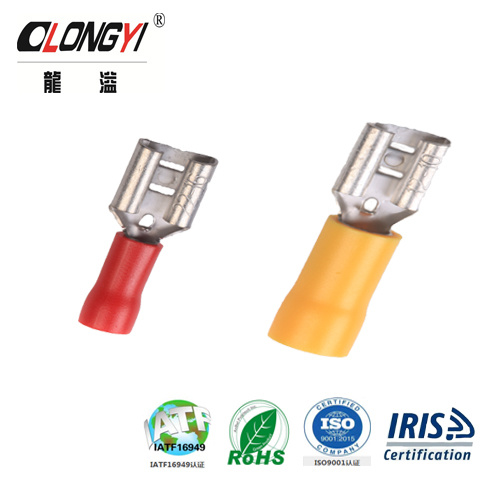

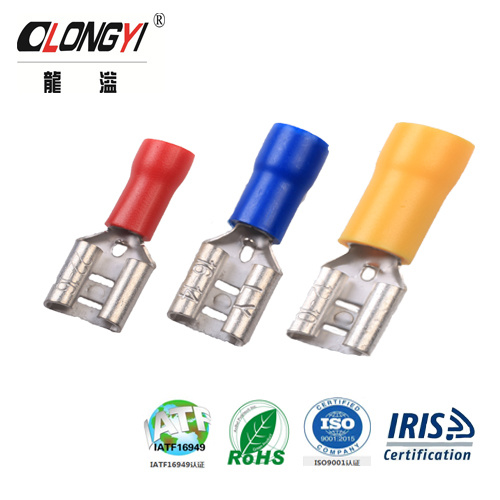

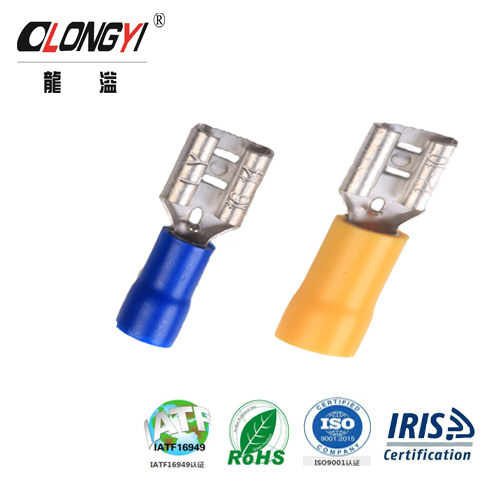

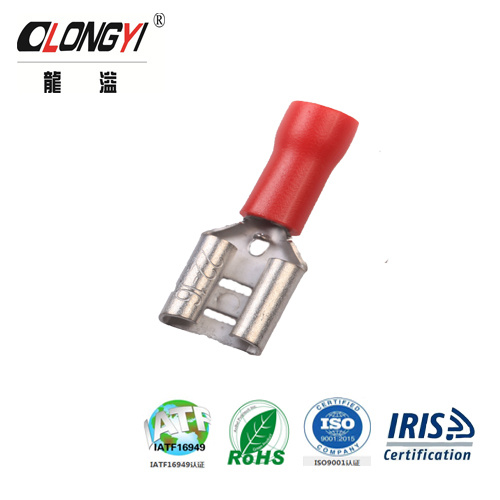

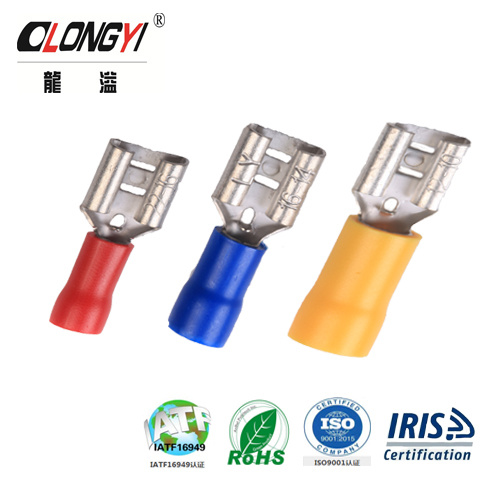

Longyi RF Copper Connecting Bimetallic Terminal Lug

Wiring Copper Terminals are generally composed of shrapnel, conductive parts and insulating parts (plastic case).  When wiring, the screwdriver import plastic shell on the right side of a square hole, upward tilt screwdriver, give a downward pressure shrapnel, shrapnel square hole can be aligned with the conductive wire frame of holes, again from plastic shell hole into the wire, make it into the conductive parts so as to realize the connection of wires and Copper Tube Terminals, wire connection, then the terminal plug and fixed on the circuit board supporting the socket connection,  Can realize the circuit board to transmit signal function.  It should be pointed out that when the socket of the wiring terminal block is connected with the plug, the solder feet (or conductive parts) in the socket can achieve seamless contact with the conductive parts in the plug, so as to ensure good conductive effect.  The unwiring process is similar to the wiring proce…
