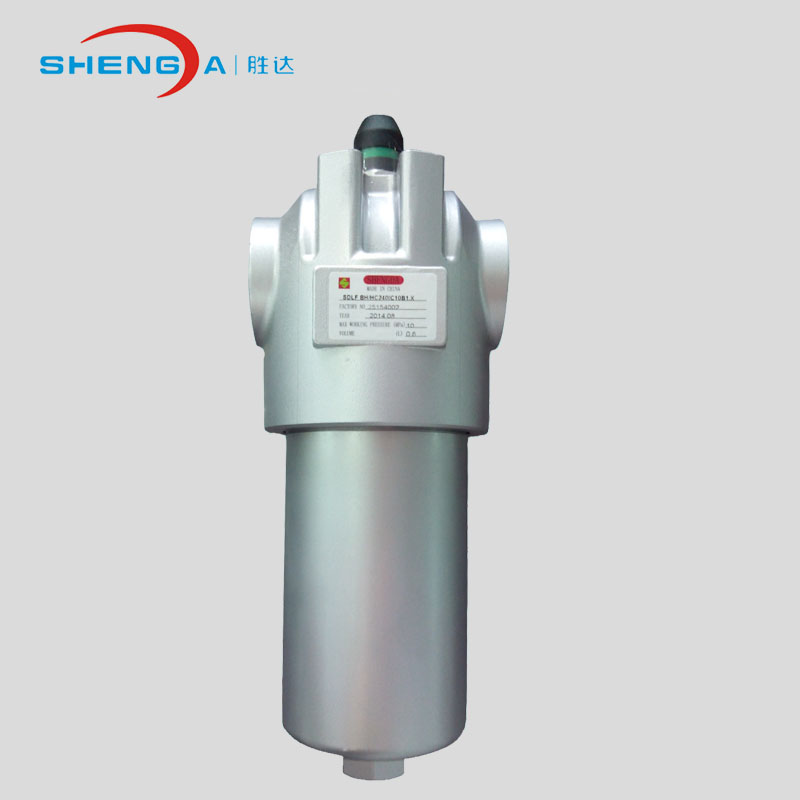

Low Pressure Oil Filter Kit for Hydraulic System

Low Pressure Inline Oil Filter ---up to 7000 L/min ---up to 100 bar ---material: aluminum 1.    Introduction Construction The filter housings are designed in accordance with international regulations. They consist of a filter head and a screw-in filter bowl. Standard equipment: *  connection for a clogging indicator in filter head *  mounting holes in the filter head *  drain screw with pressure relief (SDLF 330 and above) Filter Element Max. Allowable D.P.: BN/HC：20bar；   BH/HC: 210bar    W/HC：20bar      V: 210bar 2.    Description Mounting                As inline oil filter Temperature range    - 30 ℃ ~ + 100 ℃ Pressure setting of clogging indicator △ Pa= 5bar -0.5bar (others on request) Cracking pressure of bypass…
