Metal Gasket Face Seal Gasket

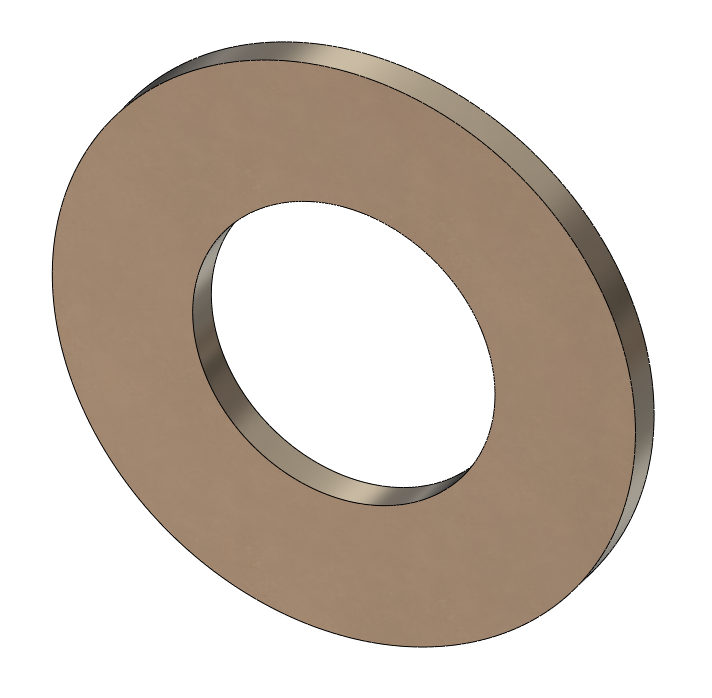

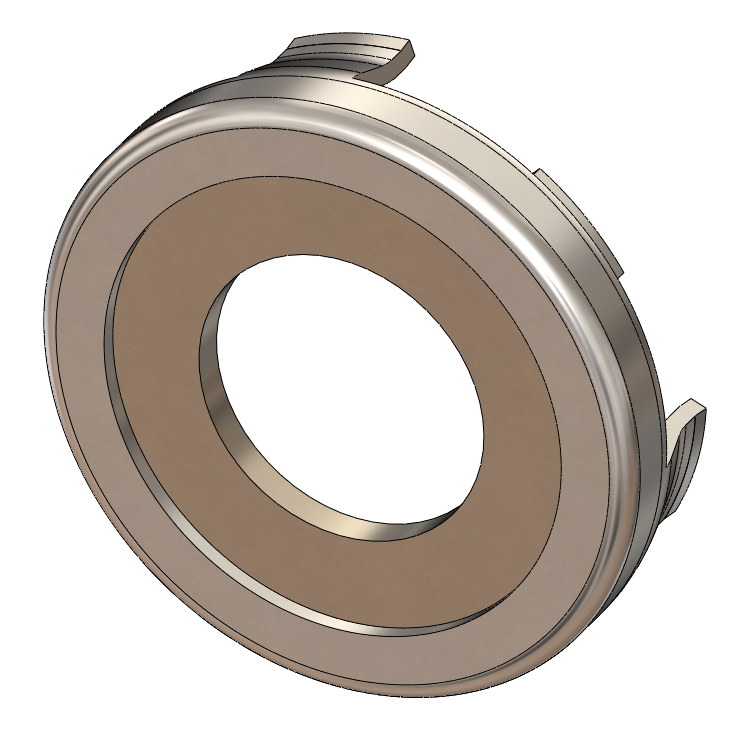

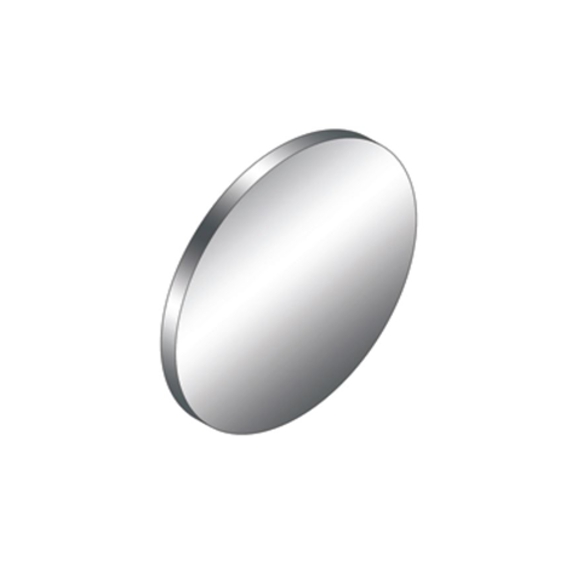

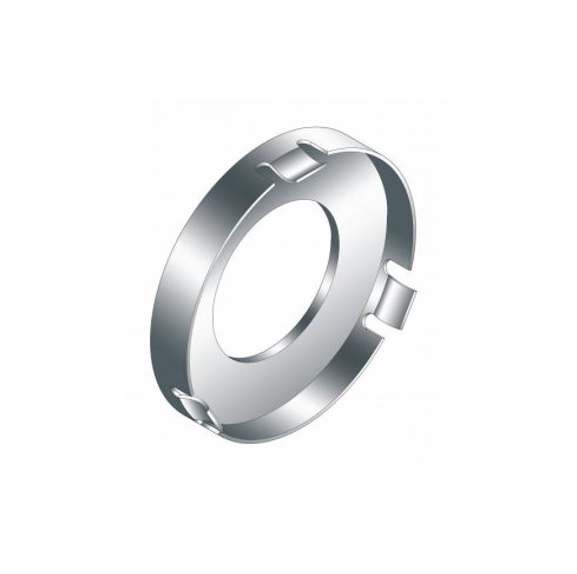

VCR Gland Flat Gasket The base material is 316L secondary smelted, and the body is engraved with a traceable base material code.The key inner surfaces are visually inspected 100% with the aid of a magnifying glass and special lighting fixtures.Surface Finish: BA ≤ 0.8μm; EP ≤ 0.3μmProduct Description: Pressure Resistance Coefficient: The rated working pressure is determined by the gasket material at room temperature.Temperature Resistance Coefficient: For the joint, it is 537°C; for the nickel gasket, it is 315°C, and for the stainless steel gasket, it is 537°C. Cleaning and Packaging: Ultrasonic cleaning is carried out in a clean room, and double-layer packaging is done in a dust-free room.Vacuum Leakage Rate: It is determined by the sealing gasket. When using a silver-plated or copper gasket, the leakage rate is 4×10⁻⁹ std cm³/s; when using an unplated gasket, the leakage rate is 4×10⁻¹¹ std cm³/s.2D and 3D format drawings are available. If you have any needs, please contact the sa…
