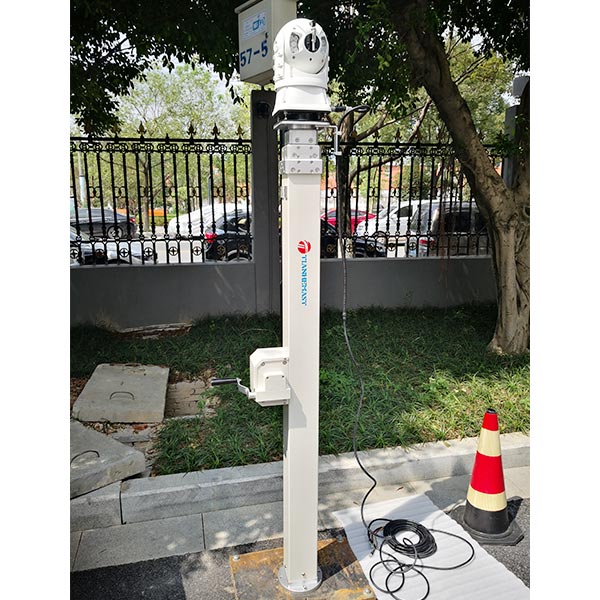

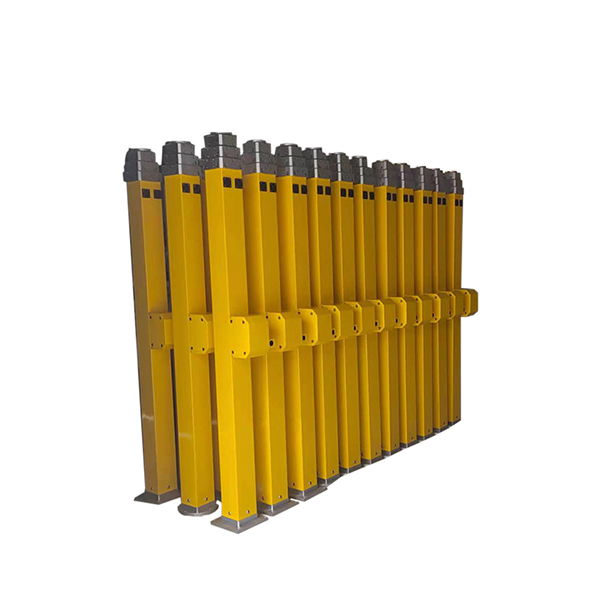

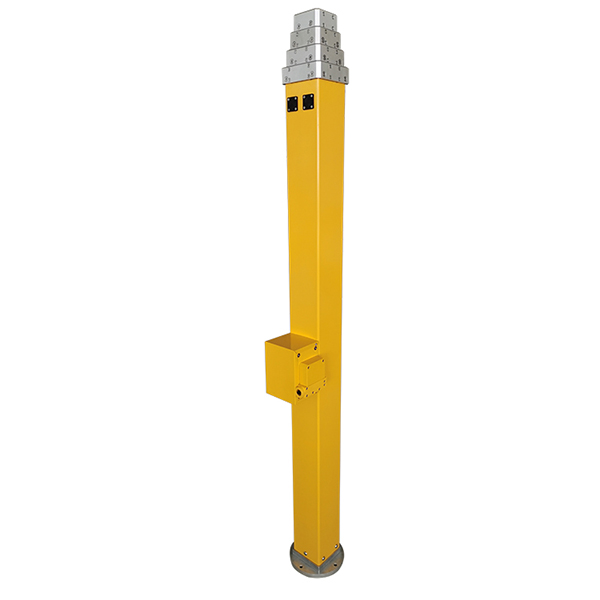

MEW manual winch telescopic mast

MEW manual winch mast is already designed by tianhemast for over 10 years, during the years, it has 5 time major upgrades, now it would be the outstand one in the telescoping mast industry. MEW series telescopic mast Model No Extend height (m/ft) Retract height(m/ft) No of section Tube diameter range (mm/in) Payload capacity(kg/lb) MEW-40*3 4m/13.1ft 1.7m/5.6ft 3 70-136mm 50kgs/110lbs MEW-50*4 5m/16.4ft 1.7m/5.6ft 4 70-124mm 40kgs/88lbs MEW-58*4 5.8m/19ft 1.9m/6.2ft 4 70-124mm 40kgs/88lbs MEW-60*5 6m/19.7ft 1.7m/5.6ft…
