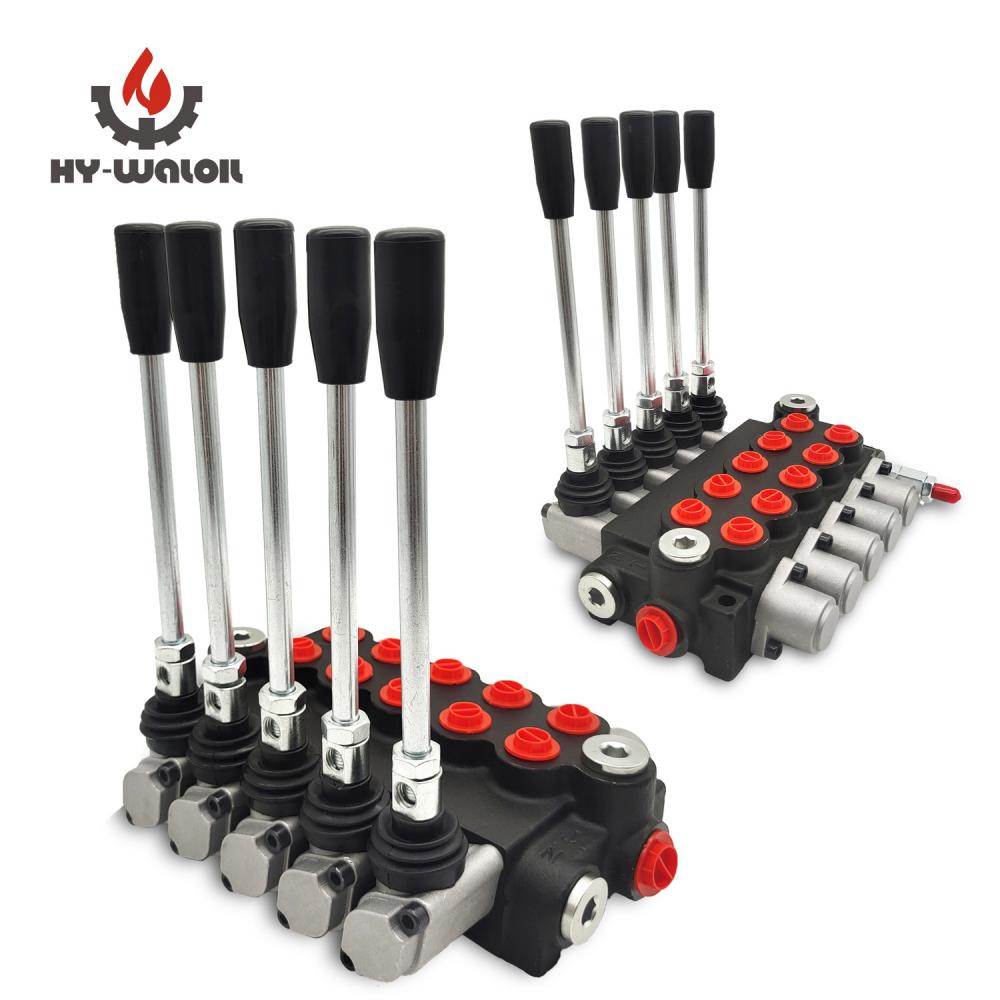

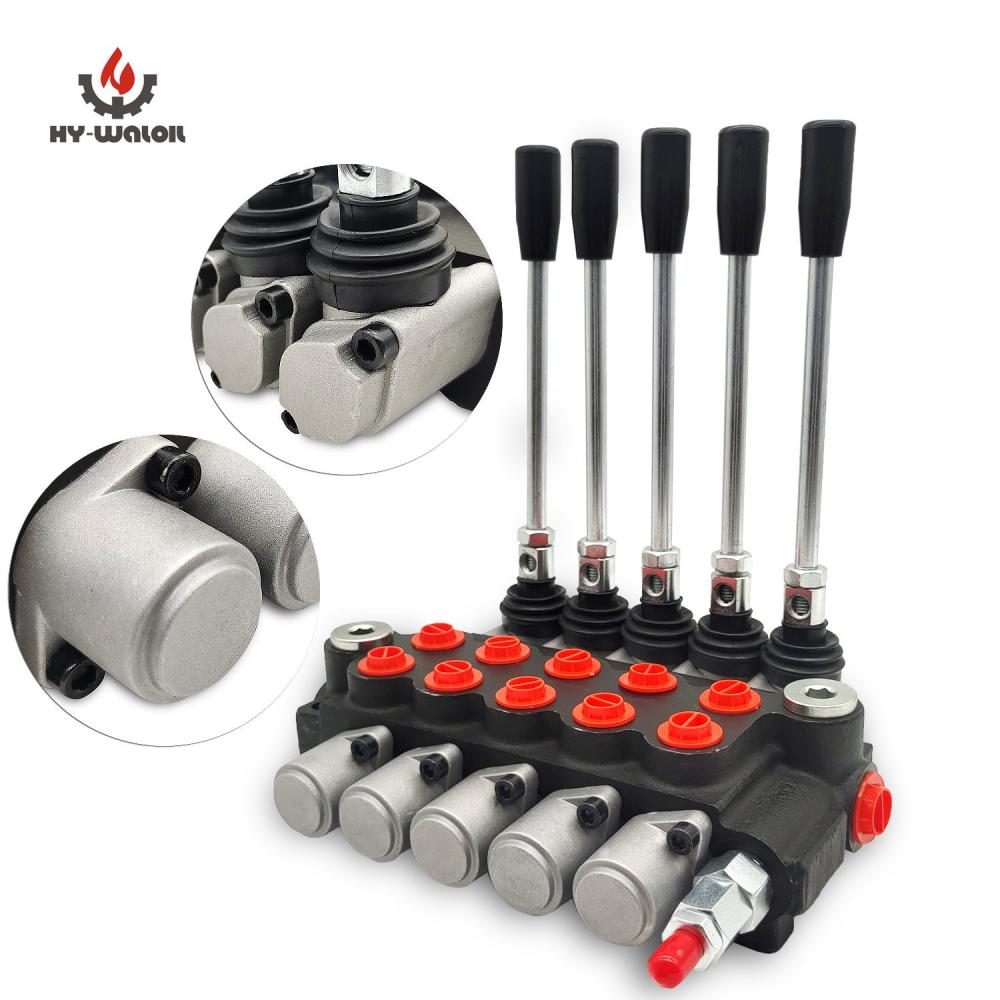

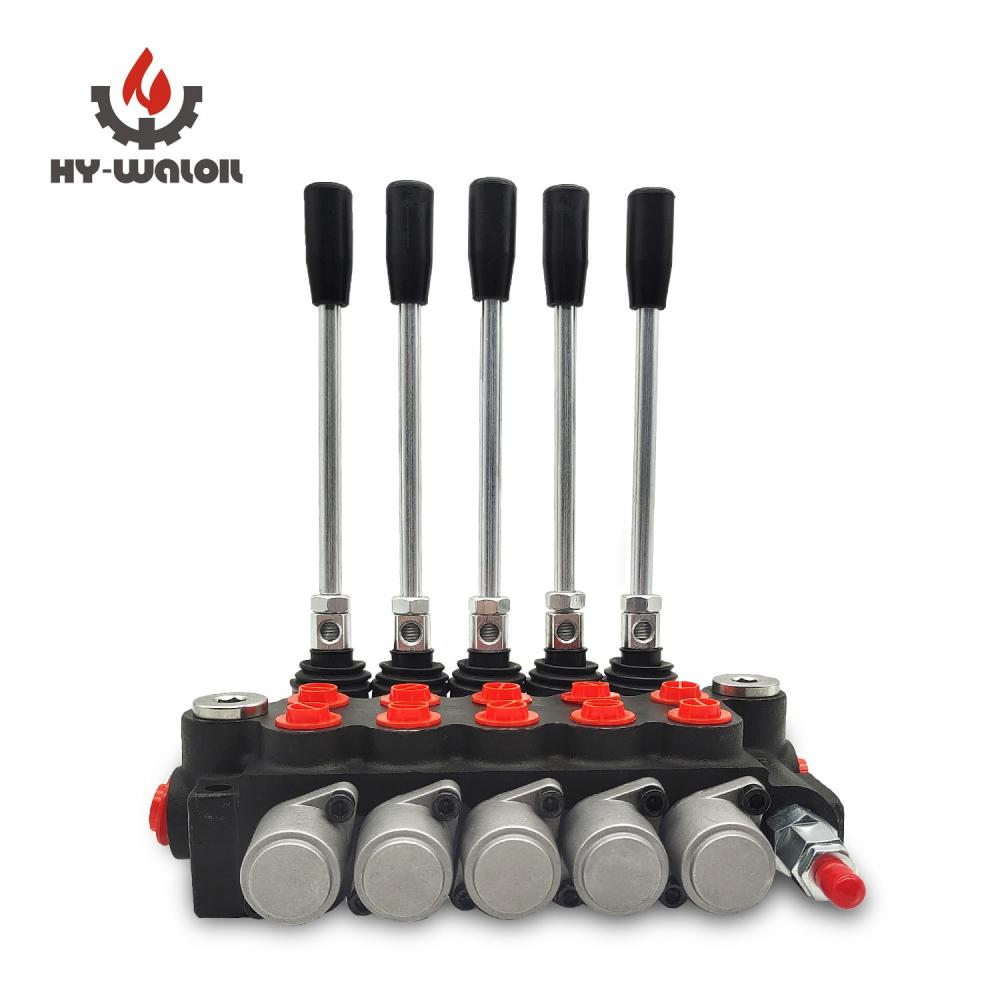

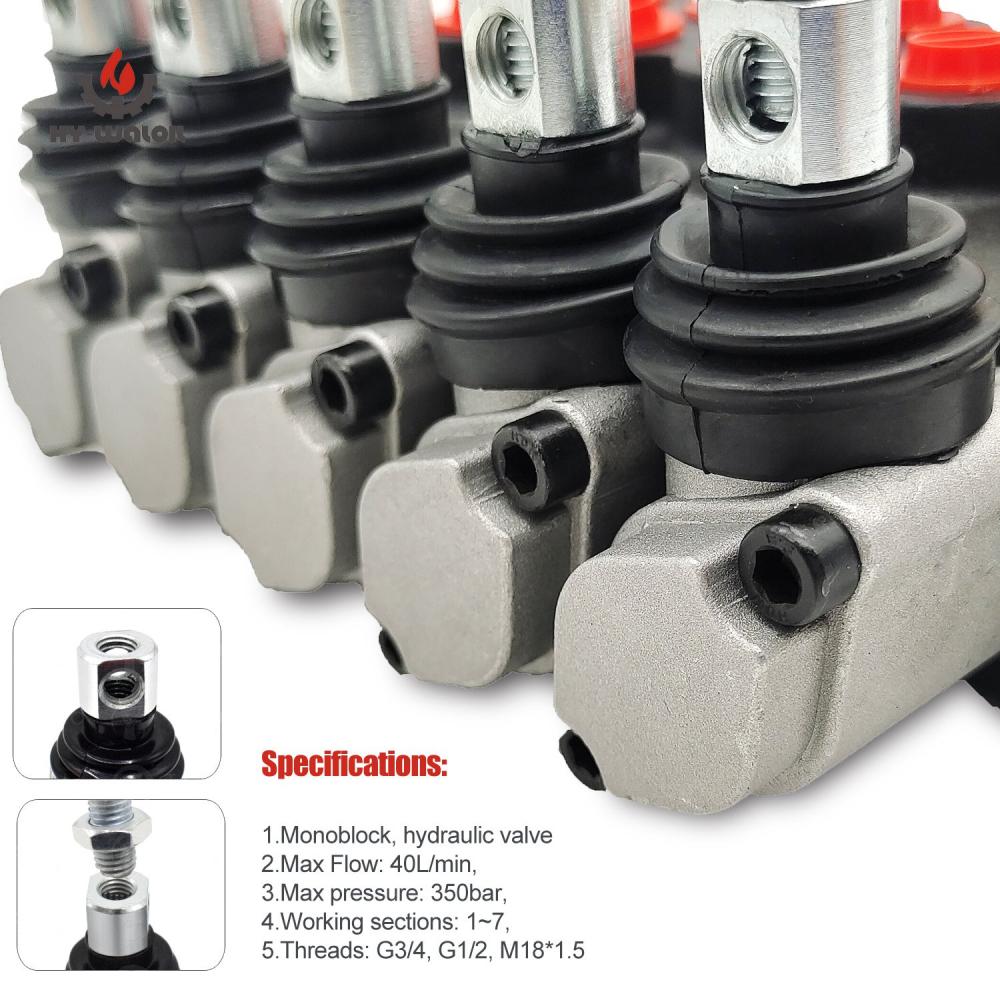

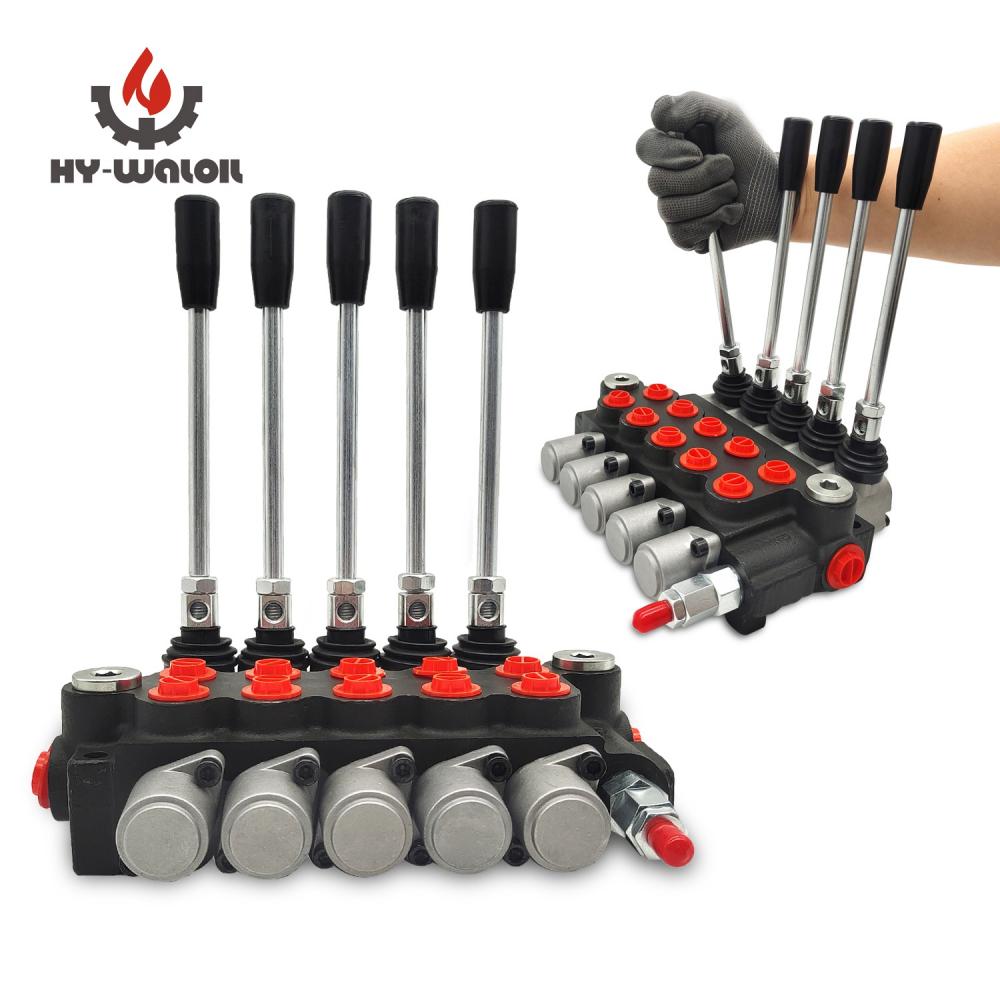

Middle-high Pressure 11GPM Monoblock Hydraulic Control Valve

5p40 Hydraulic Control Valve Description: 1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;  2. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.  3. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption. 4. Work group number can be added according to demand, 7 spools at most.  5. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers * Valve construction: monoblock construction, 1-7 levers/spools. * Spool Function: O,Y, P,A. * 5P40 Center Hydraulic Control Valve Option: Hydraulic lock is available to be added on A and B port. * Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric contr…
