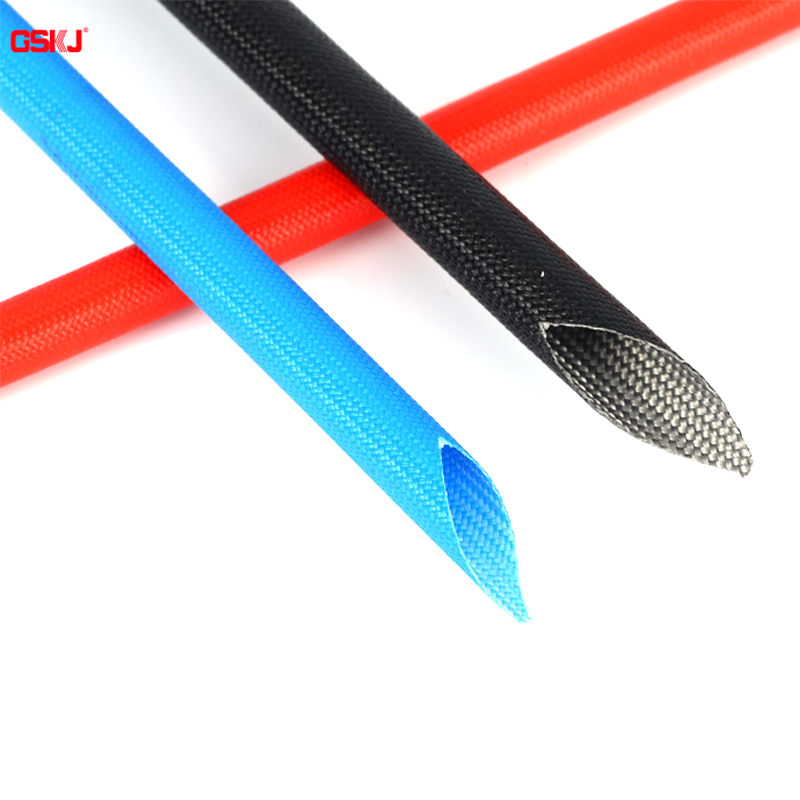

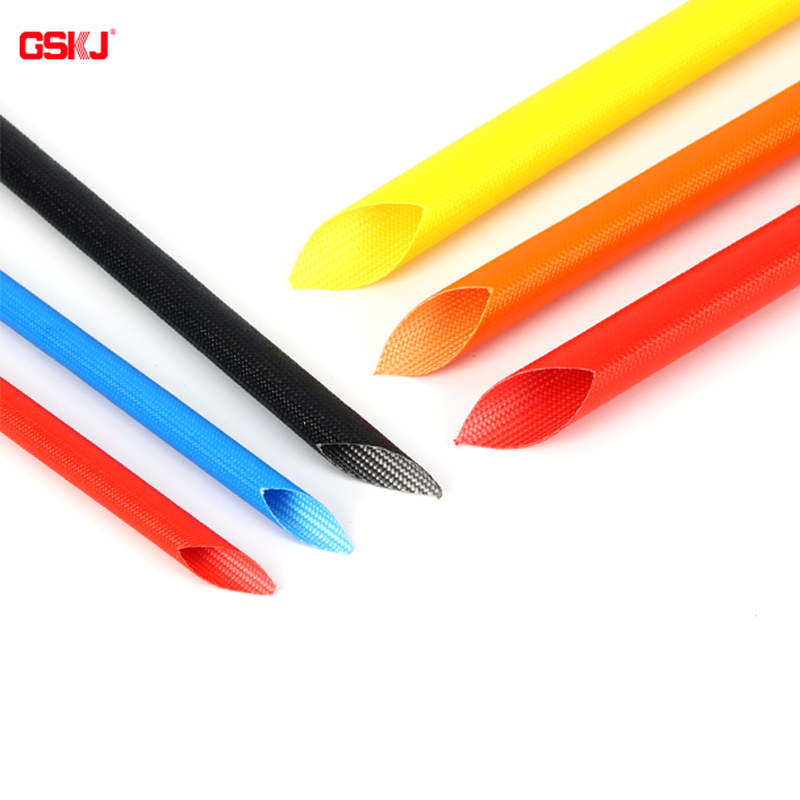

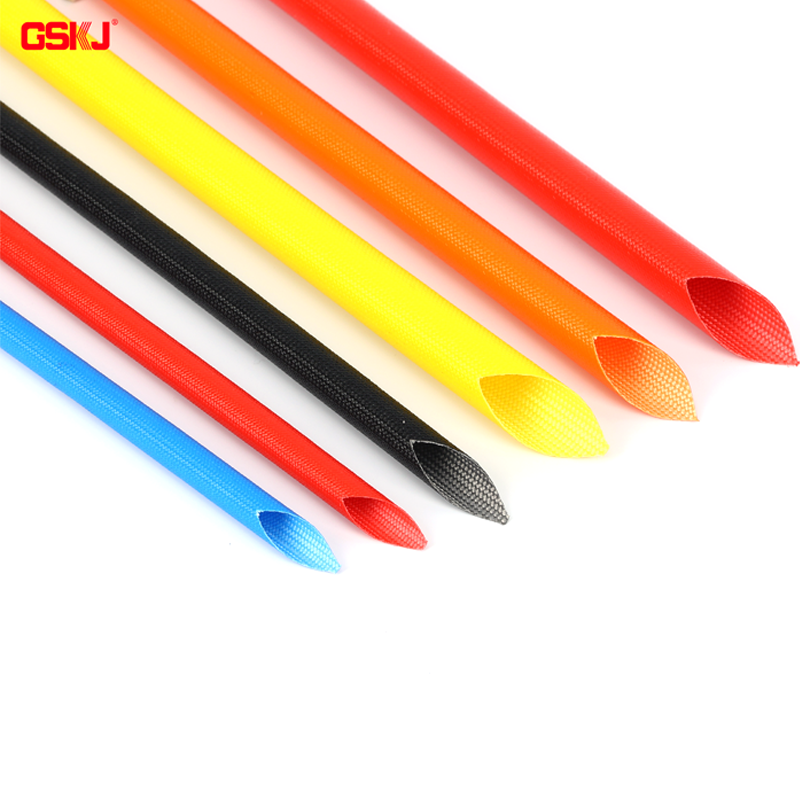

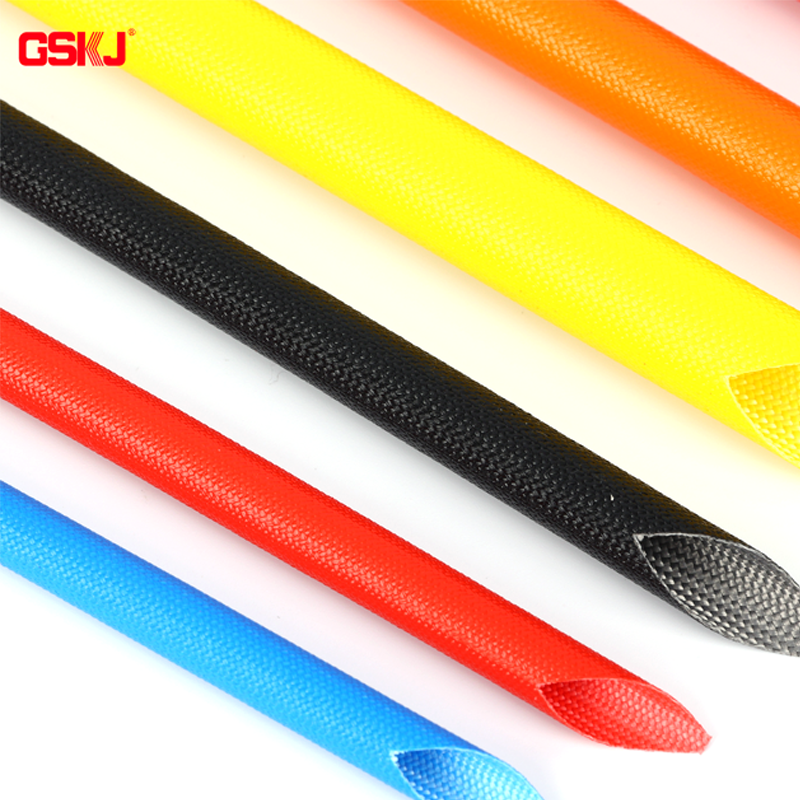

Multi-color Braided Insulation Sleeves

The Multi-color Braided Insulation Sleeves offer a versatile solution for protecting electrical components in demanding industrial and consumer applications. GSKJ-SGS fiberglass sleeve is made of alkali-free glassfiber woven with silicone coated, and then dried and shaped at high temperature. The product has the characteristics of heat resistance, corrosion resistance, aging resistance, flexibility and good insulation. It is mainly used in electronic appliances, electric heating equipment and other industries. Specification Sheet Part No. Specification （mm） Inner Diameter（mm） Voltage 1500V 2500V GSKJ-SGS-008 Φ0.8 0.8+0.2 0.28±0.05 0.35±0.05 GSKJ-SGS-010 Φ1.0 1.0+0.2 0.28±0.05 0.35±0.05 GSKJ-SGS-015 Φ1.5 1.5+0.2 0.28±0.05 0.35±0.05 GSKJ-SGS-020 Φ2.0 2.0+0.2 0.28±0.05 0.35±0.05 GSKJ-SGS-025 Φ2.5 2.5+0.2 0.30±0.05 0.35±0.05 GSKJ-SGS-030 Φ3.0 3.0+0.2 0.30±0.05 0.35±0.05 GSKJ-SGS-035 Φ3.5 3.5+0.3 0.38±0.05 0.42±0.05 GSKJ-SGS-040 Φ4.0 4.0+0.3 0.38±0.05 0.42±0…
