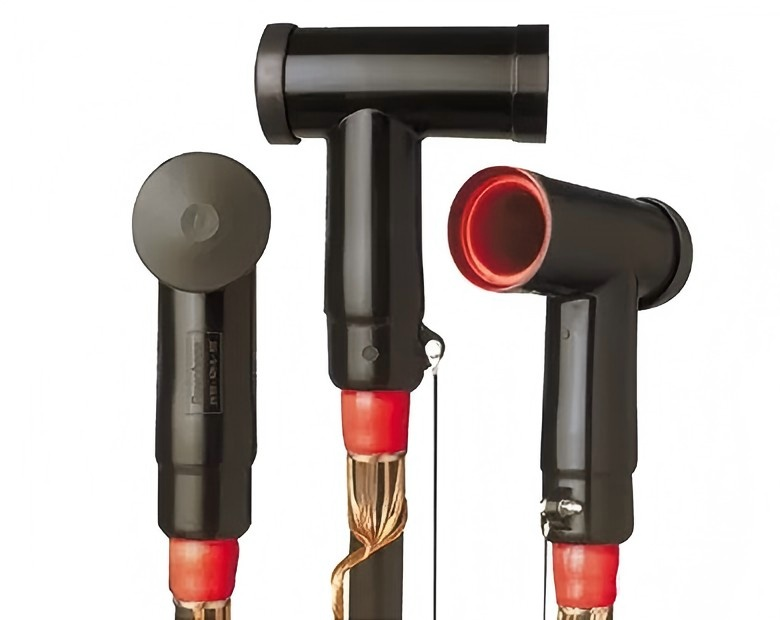

Multi-functional Elbow Terminations kit

T-body Separable Terminations Kit for MV Cables – for single-core cables up to 24 kV– Deadbreak – Max current 630 A– Single-core MV cables up to 24 kVA = Conductor Cross-section [mm2]B = Cable Insulation Diameter Min. – Max. [mm] Key features include: Rated current: 400A (continuous load), short-time withstand current 20kA/1s.Interface type: IEEE 386 compliant, suitable for pipe interface (e.g. 200A/600A casing).Protection level: IP67 (mated state), suitable for outdoor direct burial or wet environment of cable well.       Parameters Technical indicators   Rated voltage 15kV (maximum applicable voltage 24kV) Rated current: 400A (temperature rise≤55K) Lightning impulse withstand voltage 110kV (peak) Power Frequency Withstand Voltage 45kV/1min (Dry) Contact resistance ≤25μΩ (mated) Mating life: ≥500 times (with load mating) Insulation EPDM or silicone rubber (weather resistance) Shielded design: fully shielded or semi-shielded (optional) Compatible cable single co…
