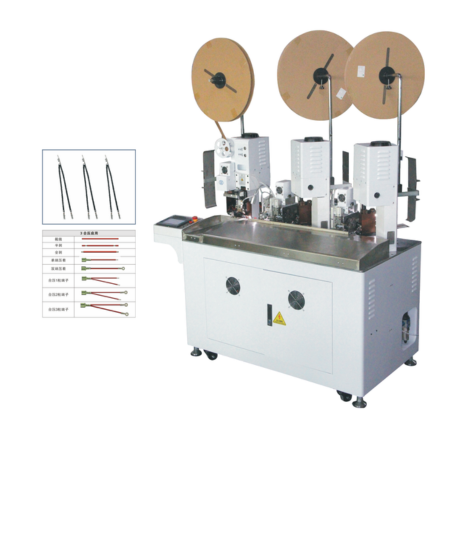

Multi-Head Combined Terminal Crimping Machine

Each machine is unique. The TYDC-3308 series is an excellent system for processing multiple terminals in a single cycle. The fully automatic terminal crimping machine integrates wire cutting stripping, insulation stripping, multi-terminal crimping, and precise positioning into a continuous, automated workflow. Model TYDC-3308-2 (Double-Head Combined Crimping) TYDC-3308-3 (Triple-Head Combined Crimping) TYDC-3308-4 (Quad-Head Combined Crimping) Power Supply AC 220V 50Hz AC 220V 50Hz AC 220V 50Hz Function Double-wire double-end combined crimping Double-wire triple-head combined crimping Four-wire combined crimping Applicable Wire Range AWG16# – AWG28# AWG16# – AWG28# AWG16# – AWG28# Applicable Terminal Ordinary, straight, OTP molds Ordinary, straight, continuous terminals Ordinary, straight, continuous terminals Cutting Length 50 mm – 999 mm 50 mm – 999 mm 50 mm – 999 mm Processing Efficiency Approx. 4000 pcs/hour (within 100 mm) Approx. 4000 pcs/hour (within 100 mm) Appr…
