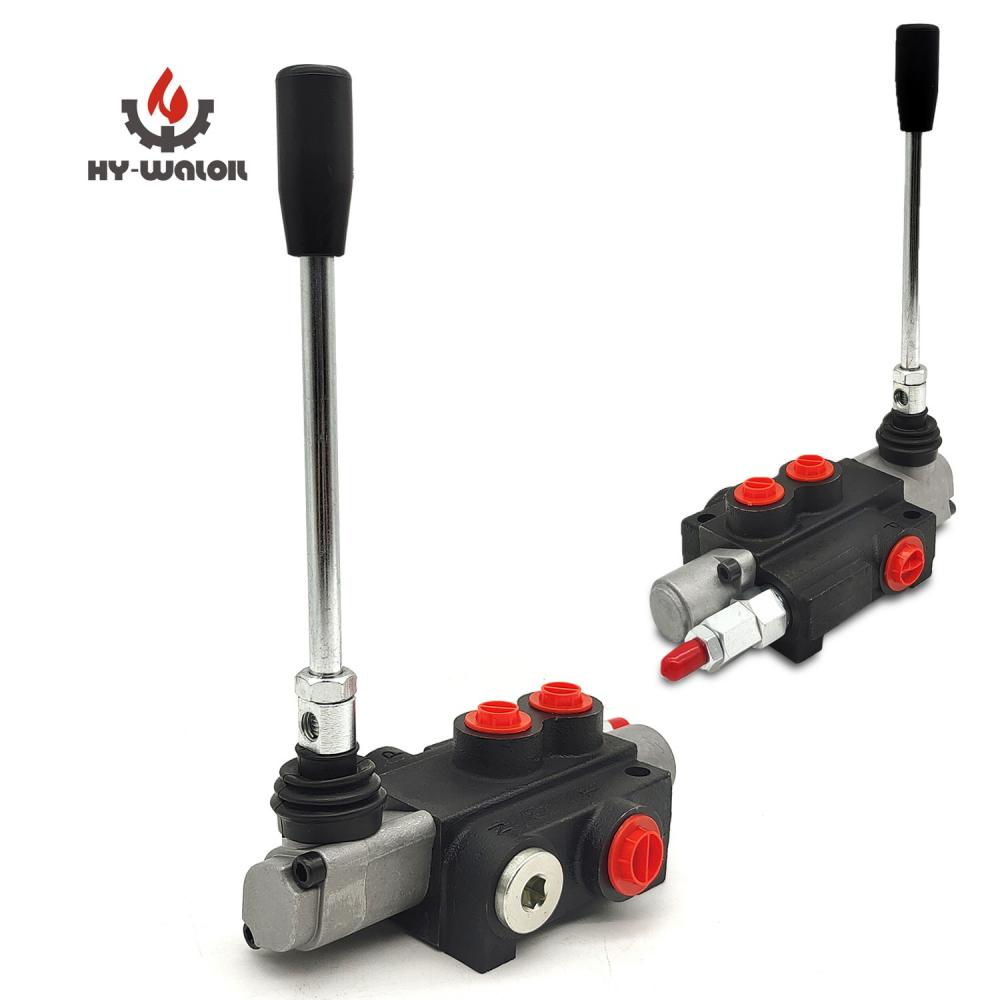

P40 Hydraulic Spool Monoblock Valve For Loader Winch

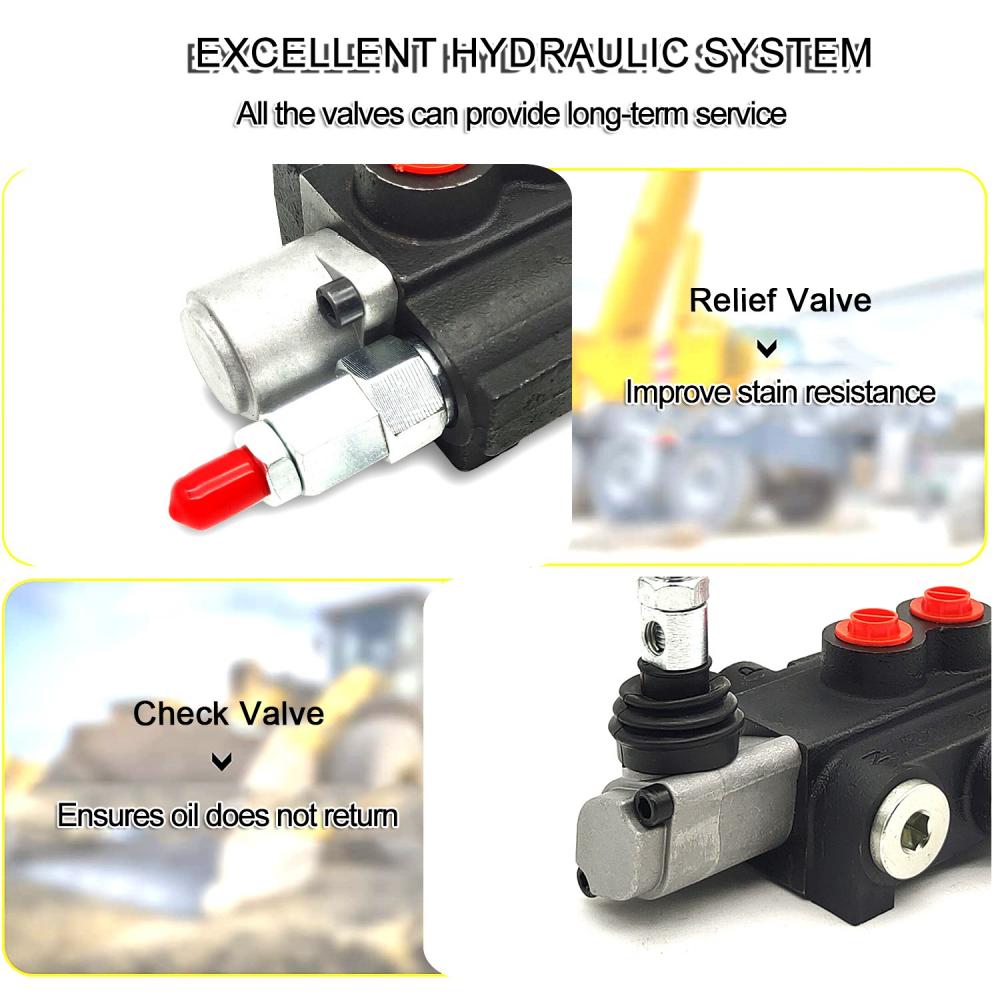

Type:Hydraulic Directional Control Valve Features: Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI Flow Rating: 21 GPM (80 l/min) A & B Work Ports: #10 SAE O-Ring (7/8”-14) Thread Inlet Port: #10 SAE O-Ring (7/8”-14) Thread Outlet Port: #12 SAE O-Ring (1-1/16”-12) Thread 3 – 5/16” Mounting Holes Description: 1. Compact size, light and handy structure, small weight, simple operation and safety & reliability; 2. Work group number can be added according to demand, 7 spools at most. 3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers; 4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation. 5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption. 6. Wide Appl…
