Plate and Frame Heat Exchanger for Heating

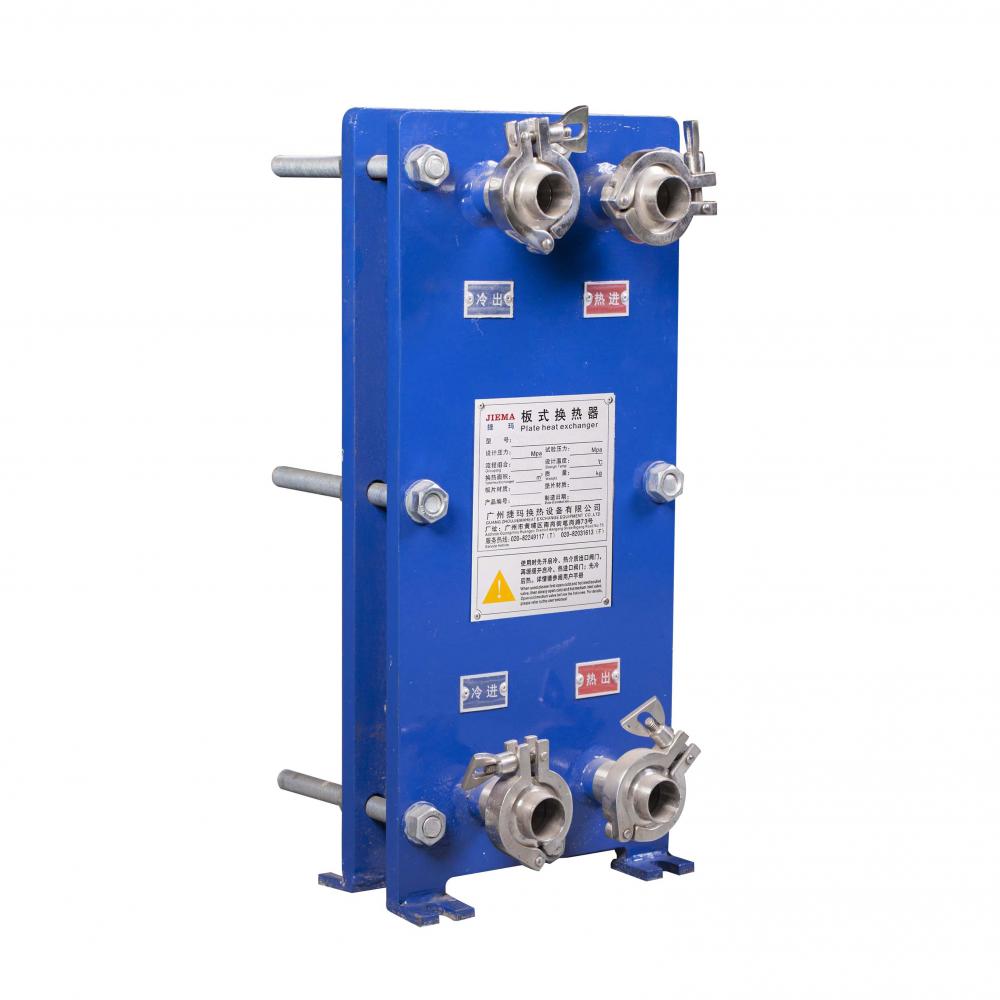

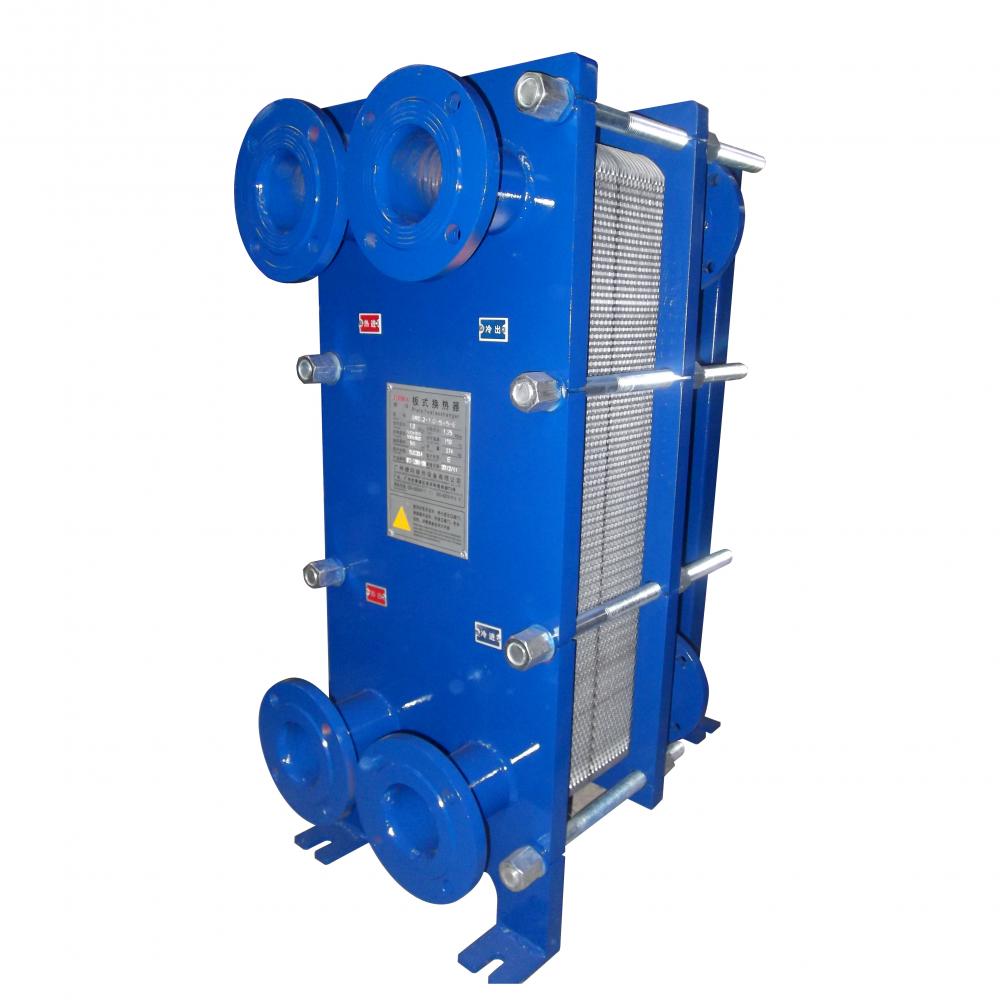

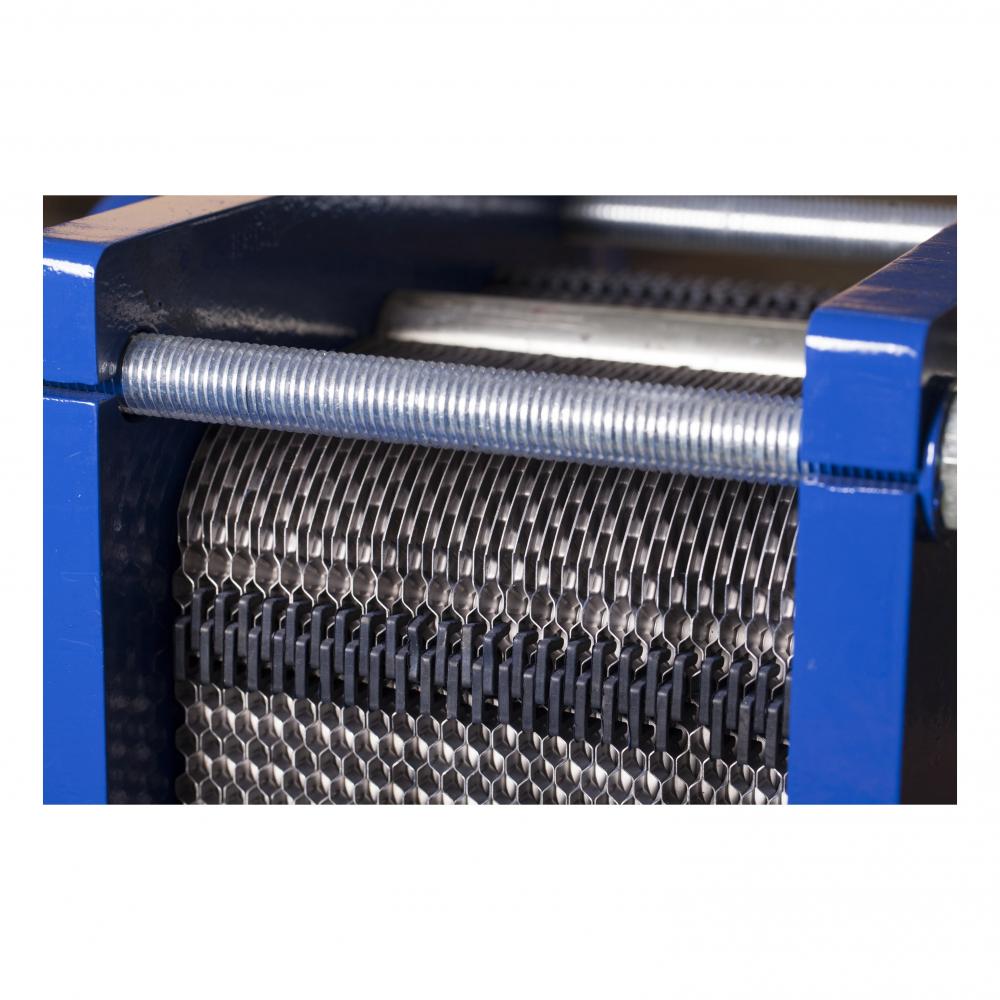

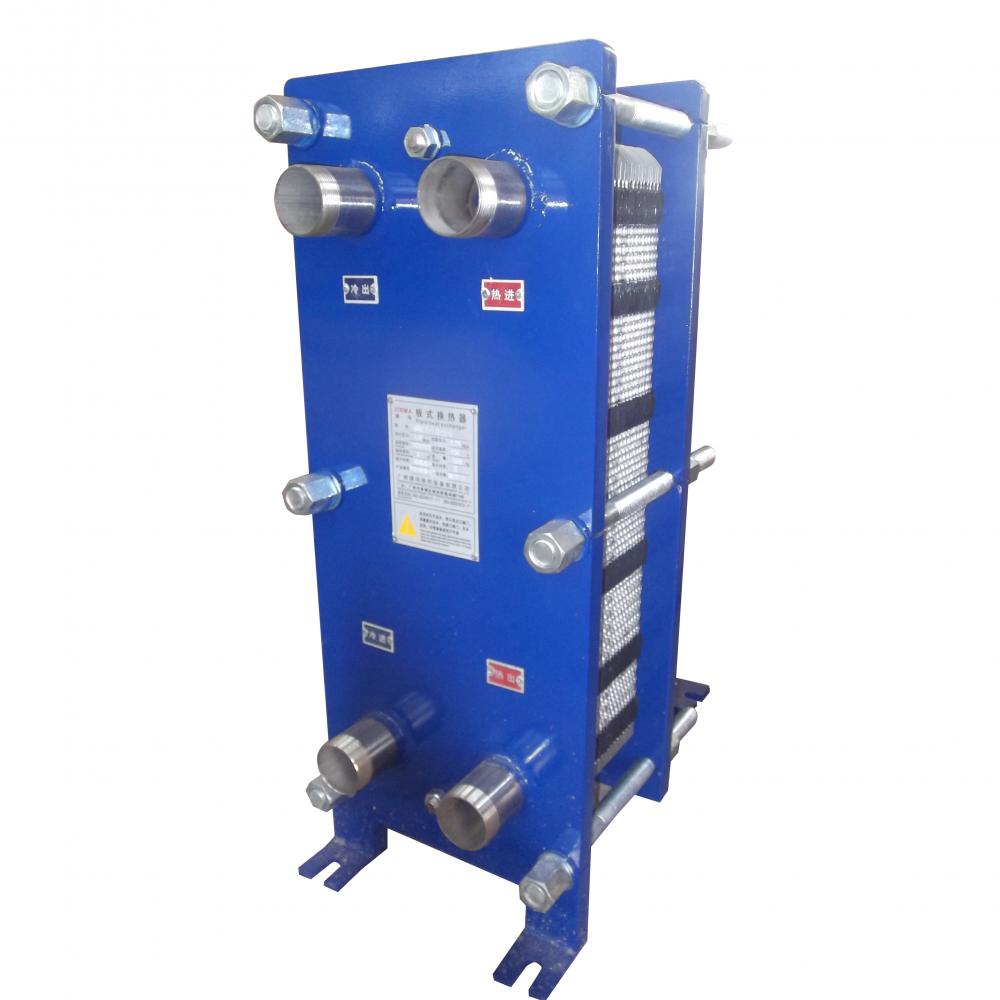

Plate and Frame Heat Exchanger for Heating Featuring with its characteristics of being compact and easy to assemble, JIEMA Plate and Frame Heat Exchanger, also known as gasket heat exchanger, is manufactured by pressing thin metal sheets into corrugated shape, then stacking and fixing them with clamping bolts in a frame. Narrow and chevron-angled channels are then formed between every two sheets. The transfer of heat from the hot work fluid to the cold work fluid thereby takes place when the two flow through different channels.   Component Material of Plate Type Heat Exchanger   Heat-exchange sheet: SUS304, SUS316L, SMO254, Titanium, Nickel, Hastelloy Alloy Gasket seal: NBR, H-NBR, EPDM, food pad, fluorine rubber, silicon rubber Frame: Carbon steel, stainless steel, coated stainless steel Clamping bolt: Galvan…
