Release Film Release Paper Slitting Machinery

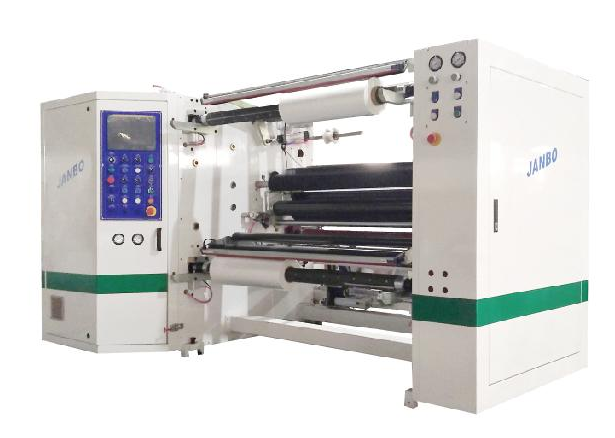

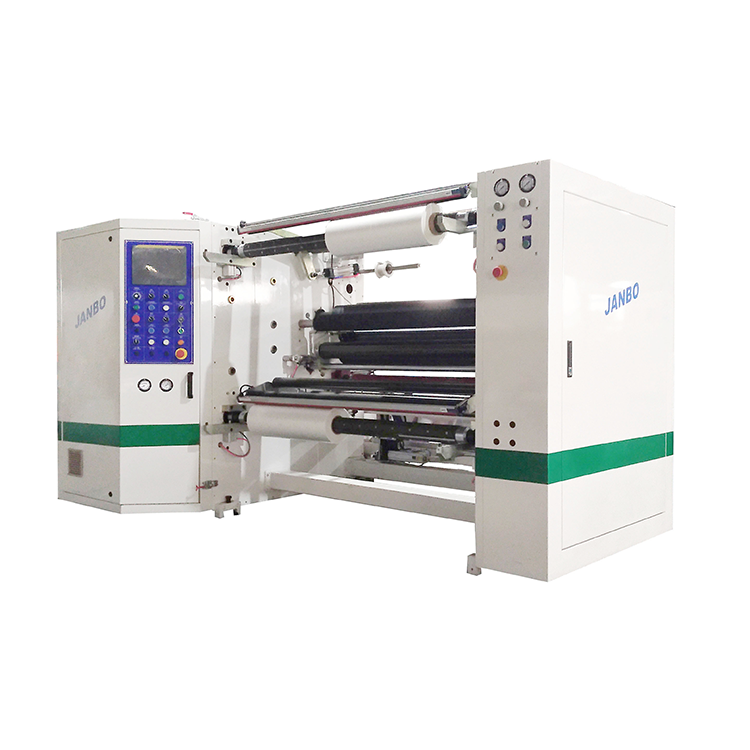

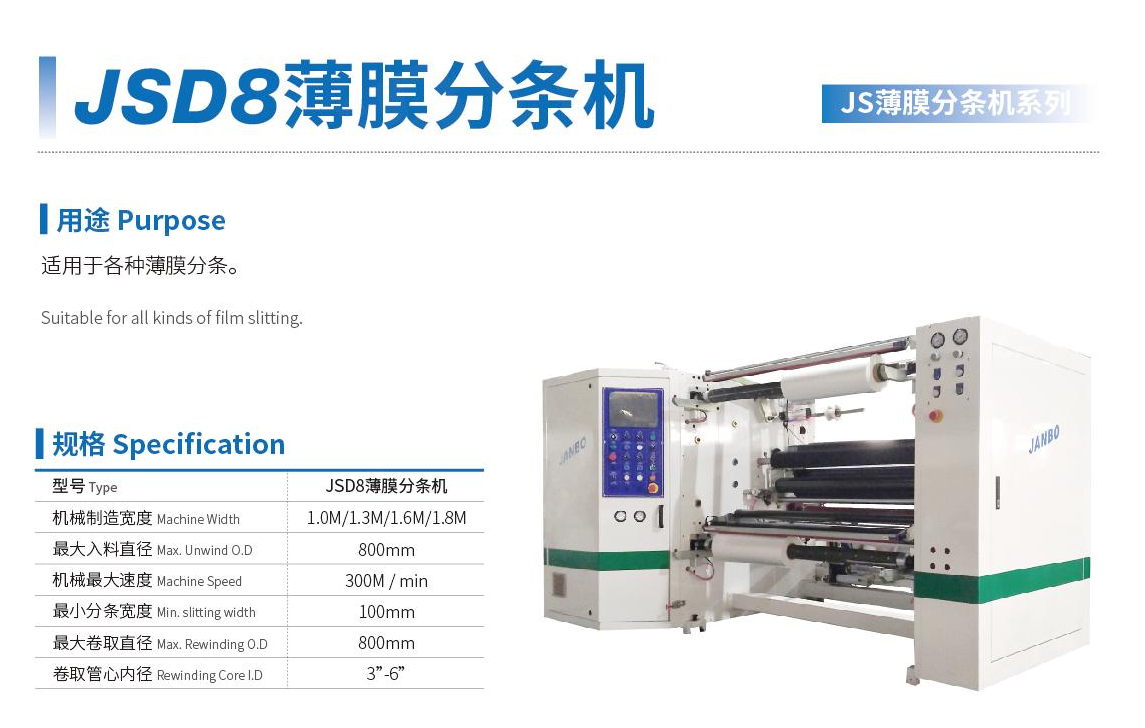

This high-performance winding and cutting machine is designed to meet the demanding needs of modern industrial environments. With a maximum winding diameter of 800mm, an inner diameter of 3-6 inches, and a mechanical manufacturing width ranging from 1m to 1.8m, this machine offers exceptional flexibility and precision. The device can handle feeding diameters up to 800mm and achieve minimum cutting widths of 50mm, making it ideal for a wide range of materials and applications.   Specifications: Maximum unwinding diameter: 800mm Inner diameter of coiling tube core: 3-6 " Mechanical manufacturing width: 1.0M/1.3M/1.6M/1.8M Maximum rewinding diameter: 800mm Minimum cutting width: 50mm Mechanical maximum speed: 300M/Min  characteristic: 1. Power part of winding: Two winding motors are used in conjunction with the main motor for three motor linkage control. The main motor controls the tension of the feeding and winding motors, ensuring stable tension and beautiful appearance of the finished…
