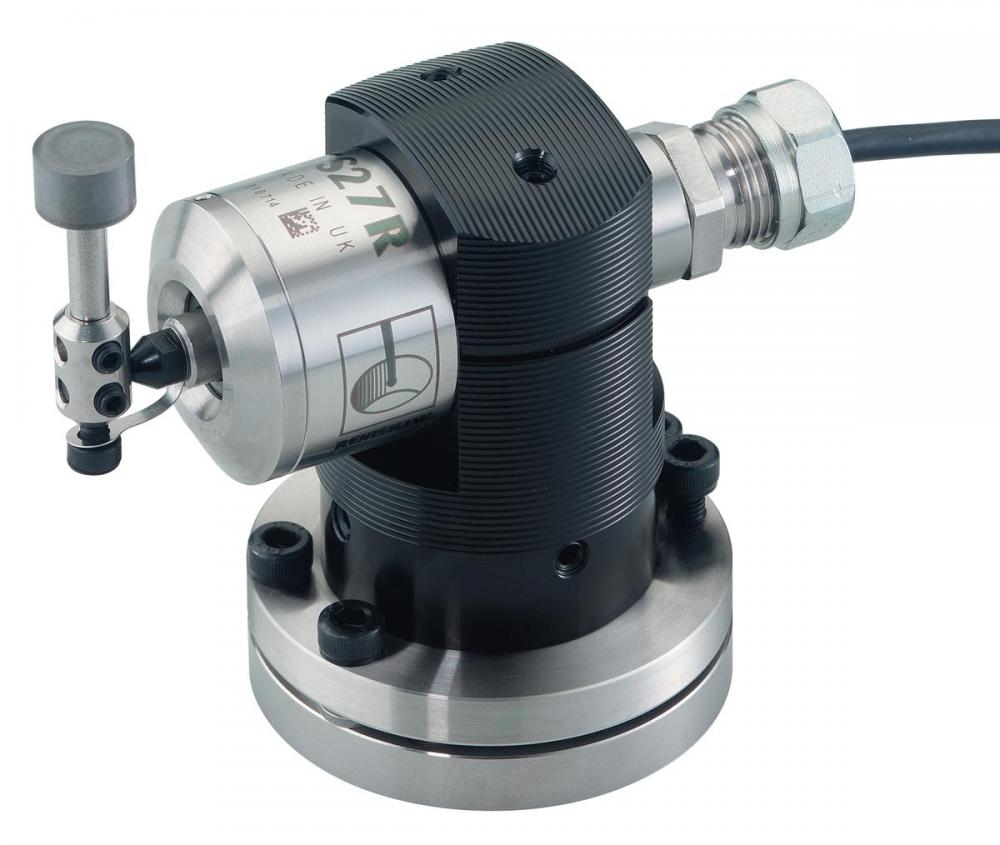

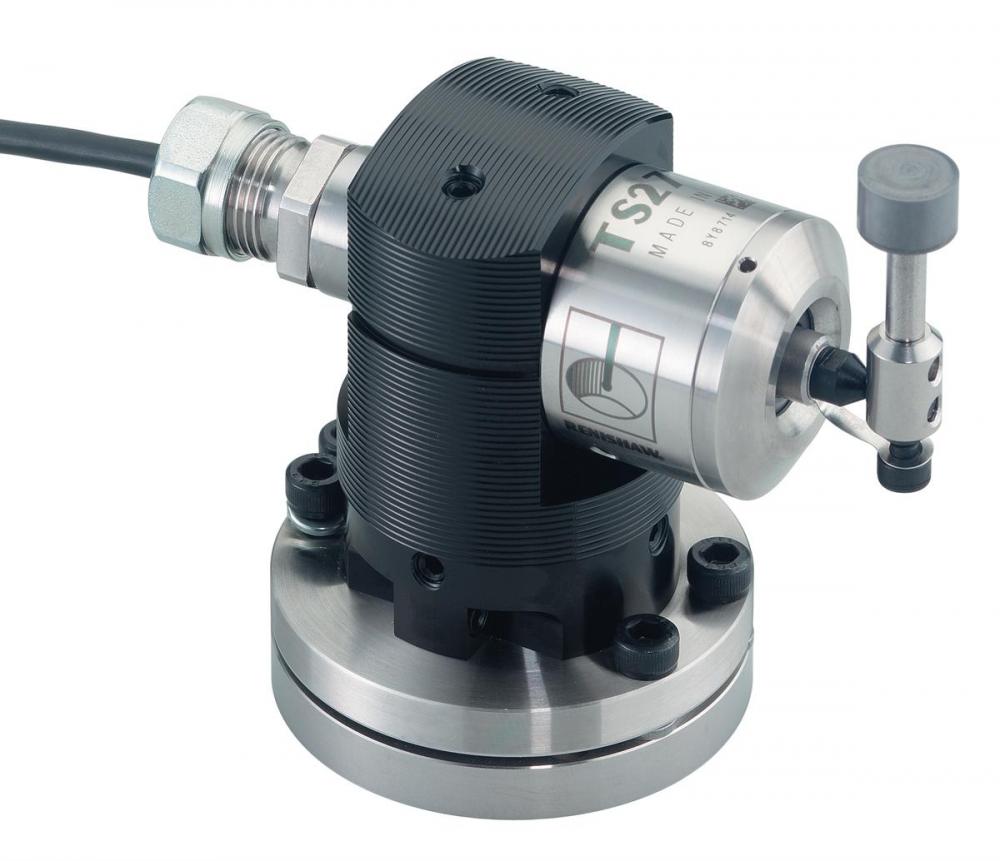

Renishaw TS27R Tool Setter

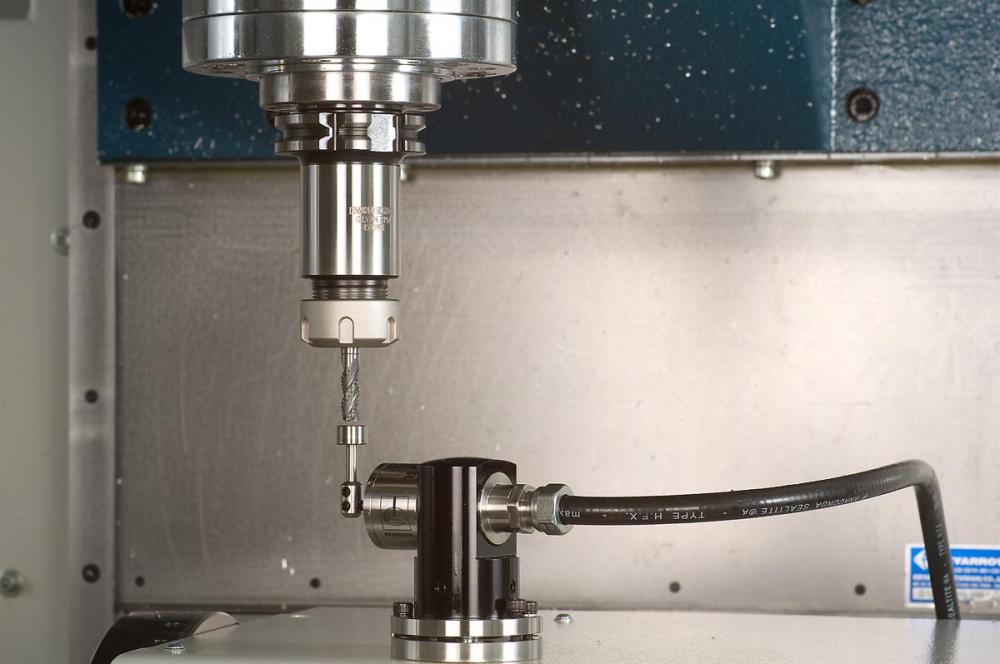

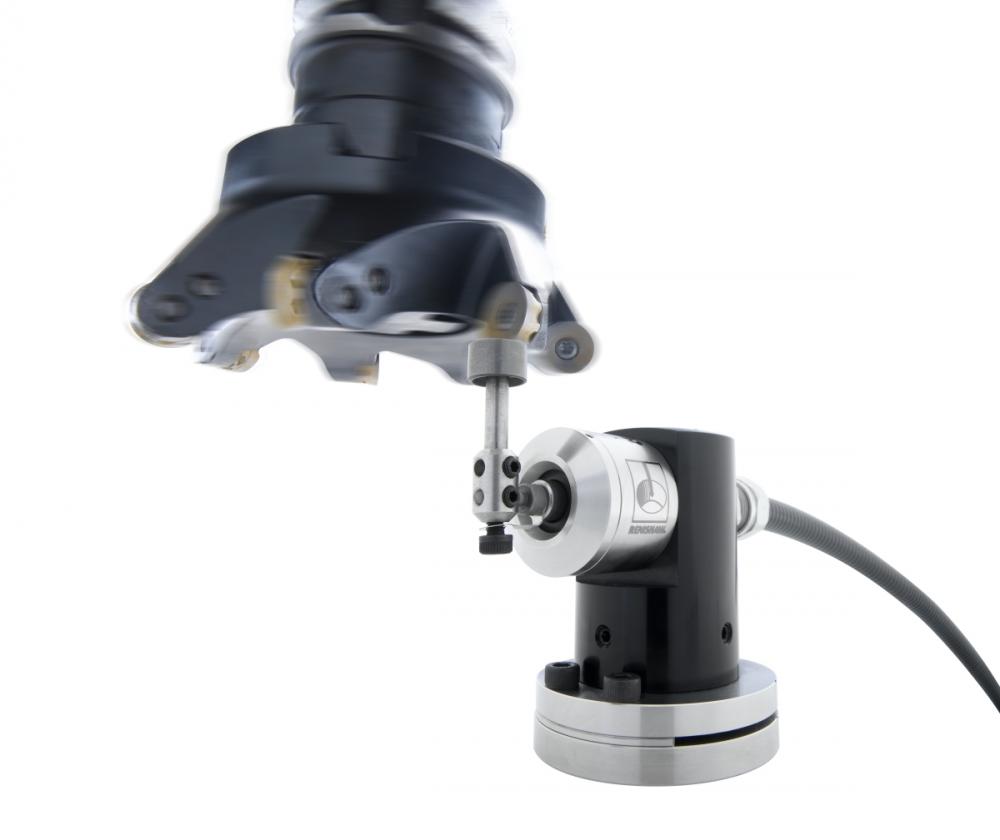

Renishaw TS27R Workpiece Probe  Description The TS27R tool setting instrument is used for tool setting operation on CNC machining centers. When measuring tool length and detecting tool damage, the program drives the tool to approach the tool measuring needle along the Z axis. Set the radius of the rotating tool on the X and Y axes of the machine tool. The screw adjustment tool aligns the measuring needle with the axis of the machine. The interface device processes the signal between the tool setting instrument and the CNC system. Product advantage The TS27R uses a hard-wired, ultra-small 3D trigger tool setter to perform damage detection and rapid tool length and diameter measurement on a variety of tools. Reduce unplanned machine downtime, thereby saving significant inspection time. Accurate tool length and diameter measurement. Automatic tool repair calculation and correction. Eliminate manual setting errors. Tool breakage detection in sequence. Reduce scrap rate.…
