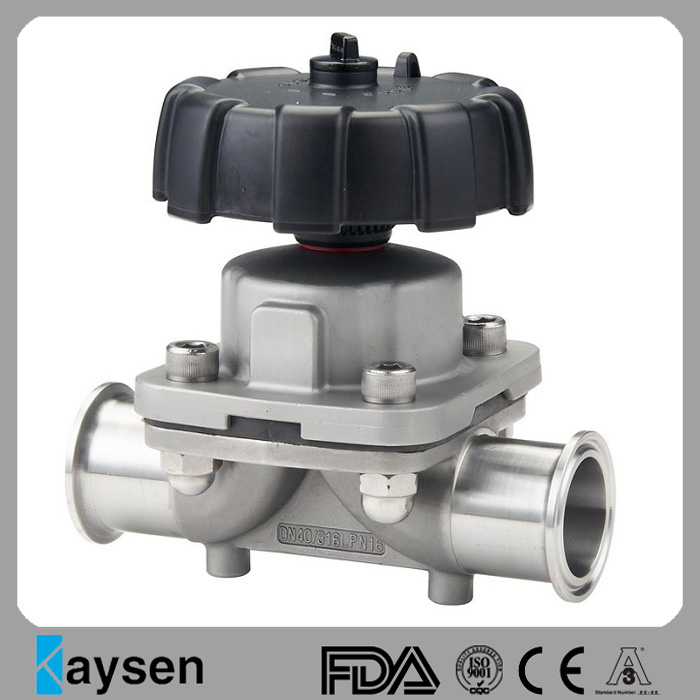

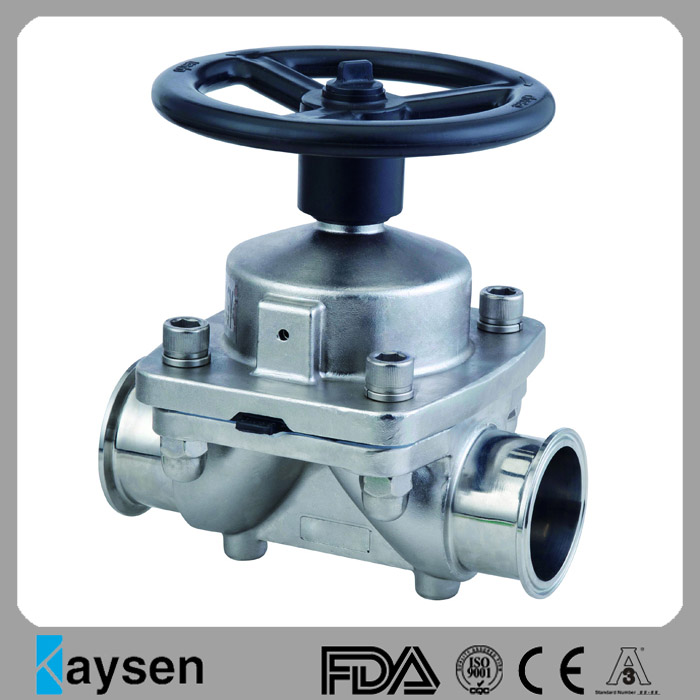

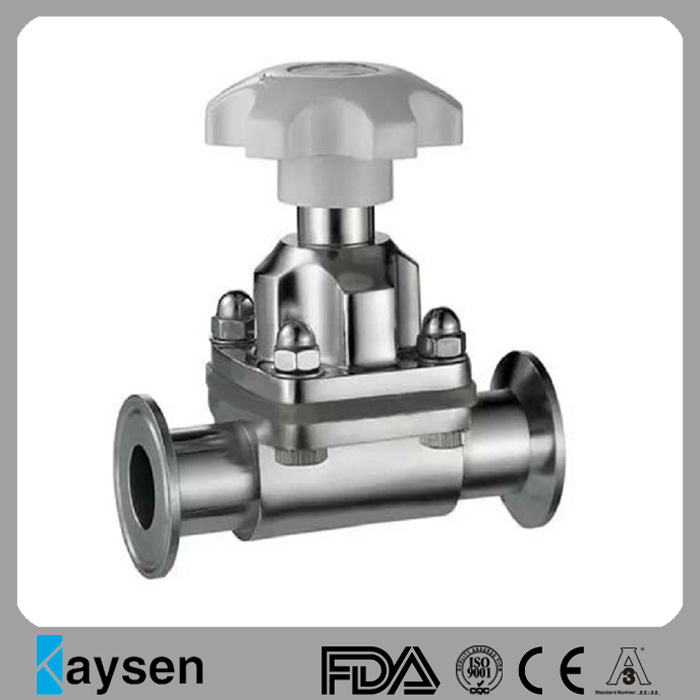

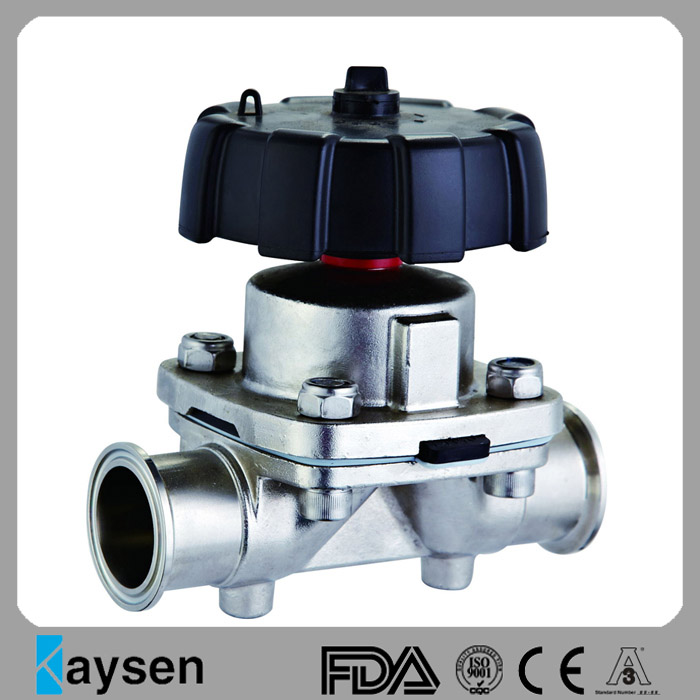

Sanitary Direct Way Diaphragm Valves with Tri-clamp Ends

Sanitary Diaphragm Valve with Tri-clamp Ends is Tri-clamp connected diaphragm valve, Manual or automatical operated and welded or clamp end, direct or three ways. The valve body is forged in stainless steel TP304 and TP316L, and size from 1/2″ to 2″ 3A, DIN, SMS, ISO, IDF, BPE, RJTstandard, We are able to offer every sanitary valves to meet variety needs for hygienic industries such as Food, Brewery, Beverage, Dairy, Pharmaceutical etc. Sanitary Diaphragm Valves with Tri Clamp Ends Size: 1" to 2"  Material: Stainless Steel 304,Stainless Steel 316L standards: 3A, DIN, SMS, ISO, IDF, BPE, RJT etc. End Connection: Tri-clamp, Butt-weld Valve body: AISI 316L. Valve seat: EPDM+PTFE Max. working pressure: 145psi (10bar) Working temperature range: -22 ~ 266°F (-30 ~ 130°C), or higher upon request. Inside surface treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default. Outs…
