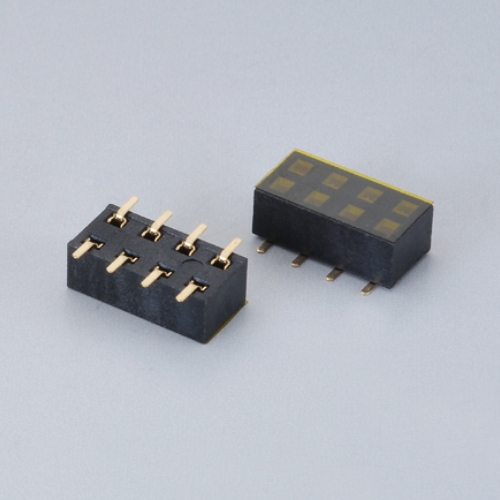

SMT dual row 2.54mm pitch female header connector

SMT dual row 2.54mm pitch female header connector Specifications: Product model: 2.54mm Pitch Female Header 2.54x3.55 Dual row SMT Plastic height: 3.55mm No.of circuits: 2*2P ~ 2*40P Material: Contact material: phosphor copper Terminal plating: gold-plated nickel bottom Plastic material: PA6T,UL94V-0 Plastic color: black Electrical characteristics  Rated current: 3.0AMP Contact resistance: 20 m Ω Max Insulation resistance: 5000 m Ω Min @ 500 v DC Resistant voltage: 1000V AC/1min Mechanical properties Operating temperature: -40°C ~ +105°C Welding temperature (PA6T material) : 260+/-5℃, time: 5+/-0.5 SEC  Sin-dipping property (PA6T material) : Sin-dipping area above 90% @ Temperature: 230+/-5℃, Time: 3+/-0.5 SEC SMT dual row 2.54mm pitch female header connector is a surface-mounted connector that features two rows of contacts spaced at a 2.54mm pitch. It is use…
