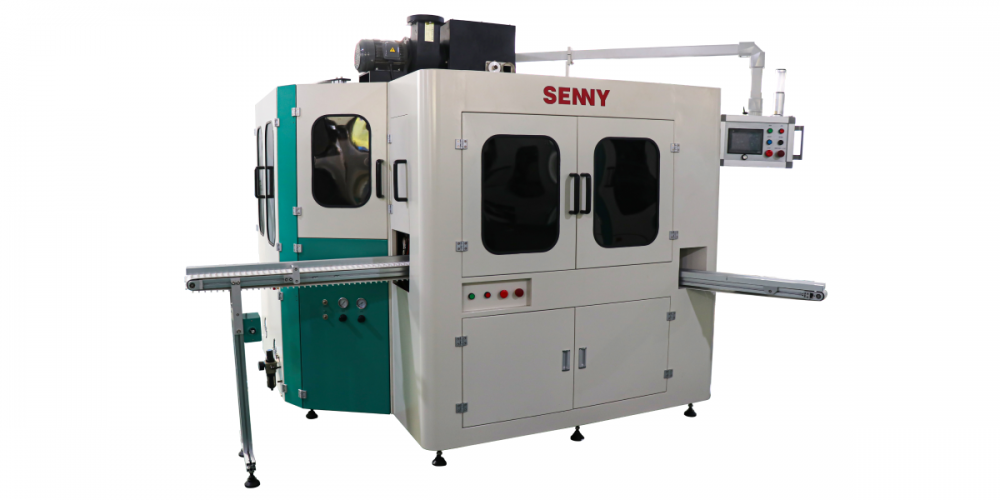

Soft Tube Full Automatic Screen Printing Machine

Soft Tube Full Automatic Screen Printing Machine 1. Machine Name & Model: Name: Soft Tube CNC UV Curing Machine with 1 Varnishing + 4 Screen Printing Model: SRS1666-1V4S 2. Design Principle: Various printing functions are realized through digitally controlled servo motors. It is suitable for offset printing glossy or matte varnishes and silk screen printing UV inks of various colors on plastic soft tubes with a diameter of 13-60mm. It can be equipped with hot stamping and finished product inspection functions. 3. Application: The machine is suitable for offset print 1 color varnish + screen print 4 colors UV ink on plastic soft tubes, can be used for printing facial cleanser, pharmaceutical soft tube. 4. Main Functions:  Batch storage tubes, automatic material unscrambling, select the direction of feeding (optional).  Servo-driven manipulator push tube feeding.  16 servo sta…
