Stainless steel horizontal trough type mixing machine

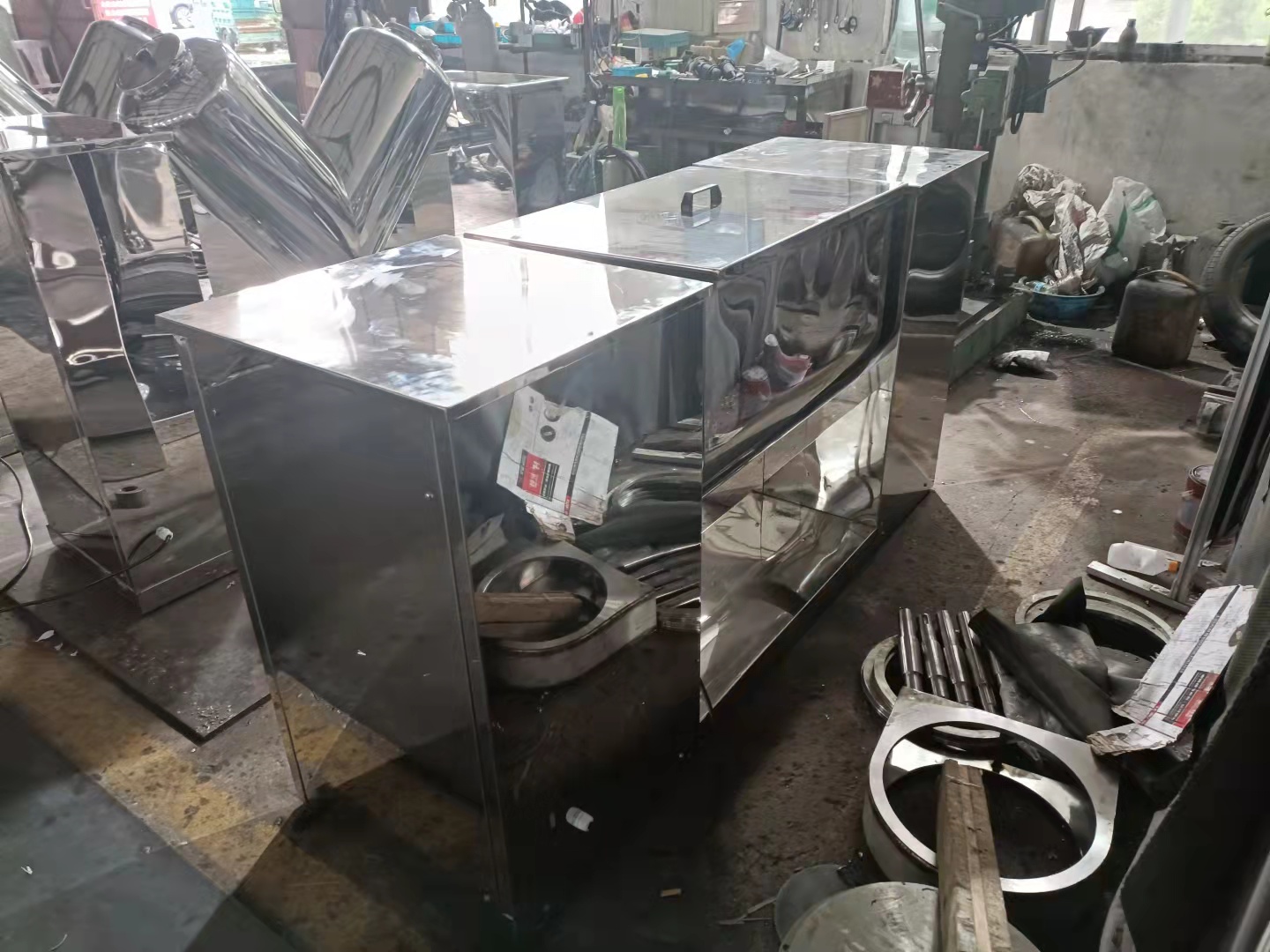

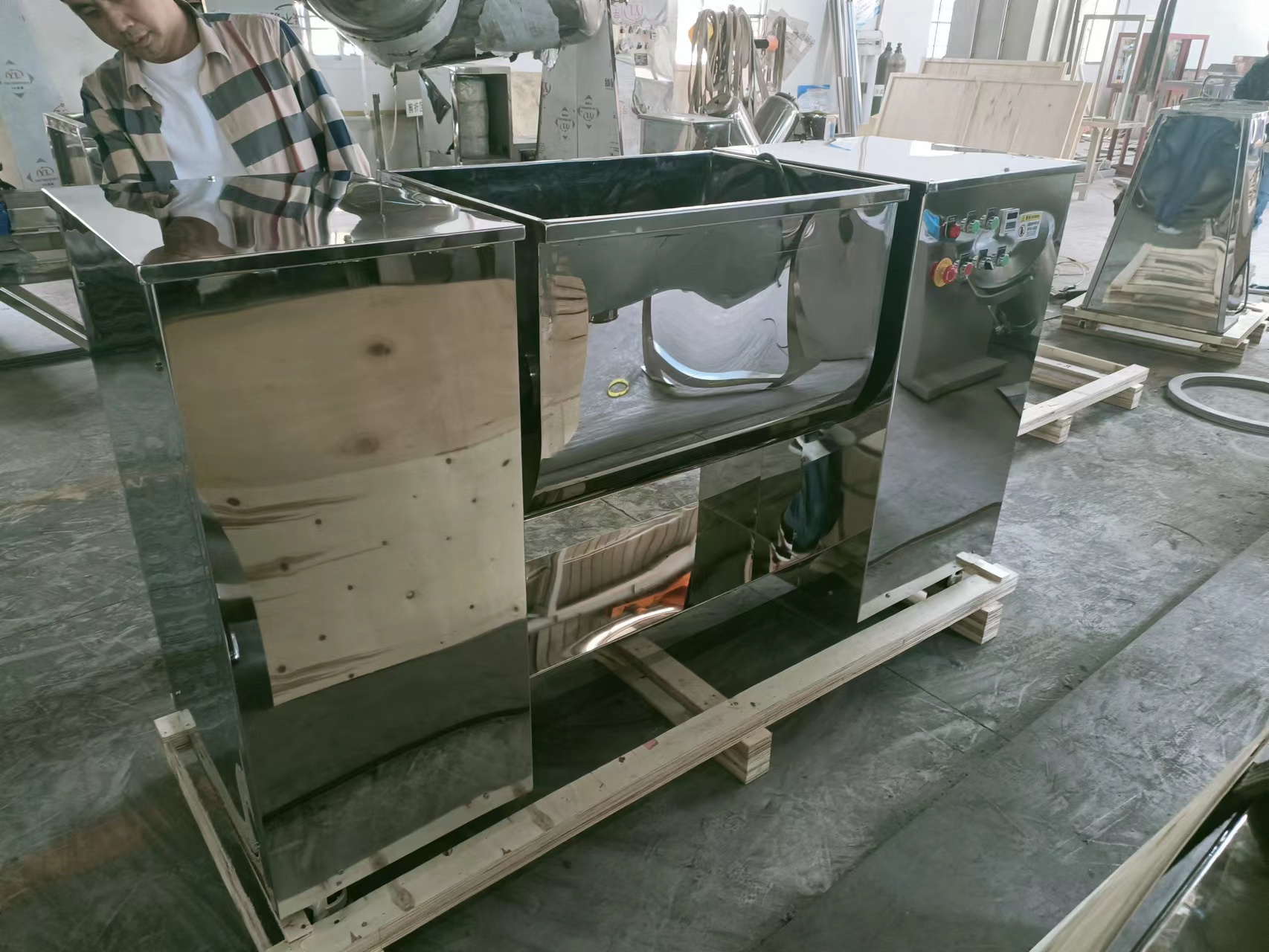

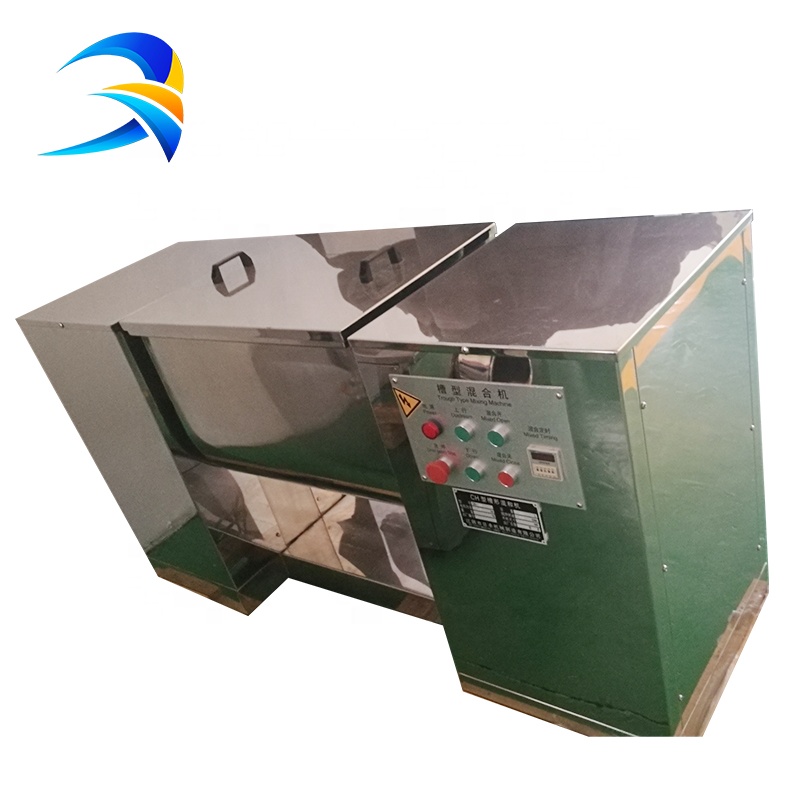

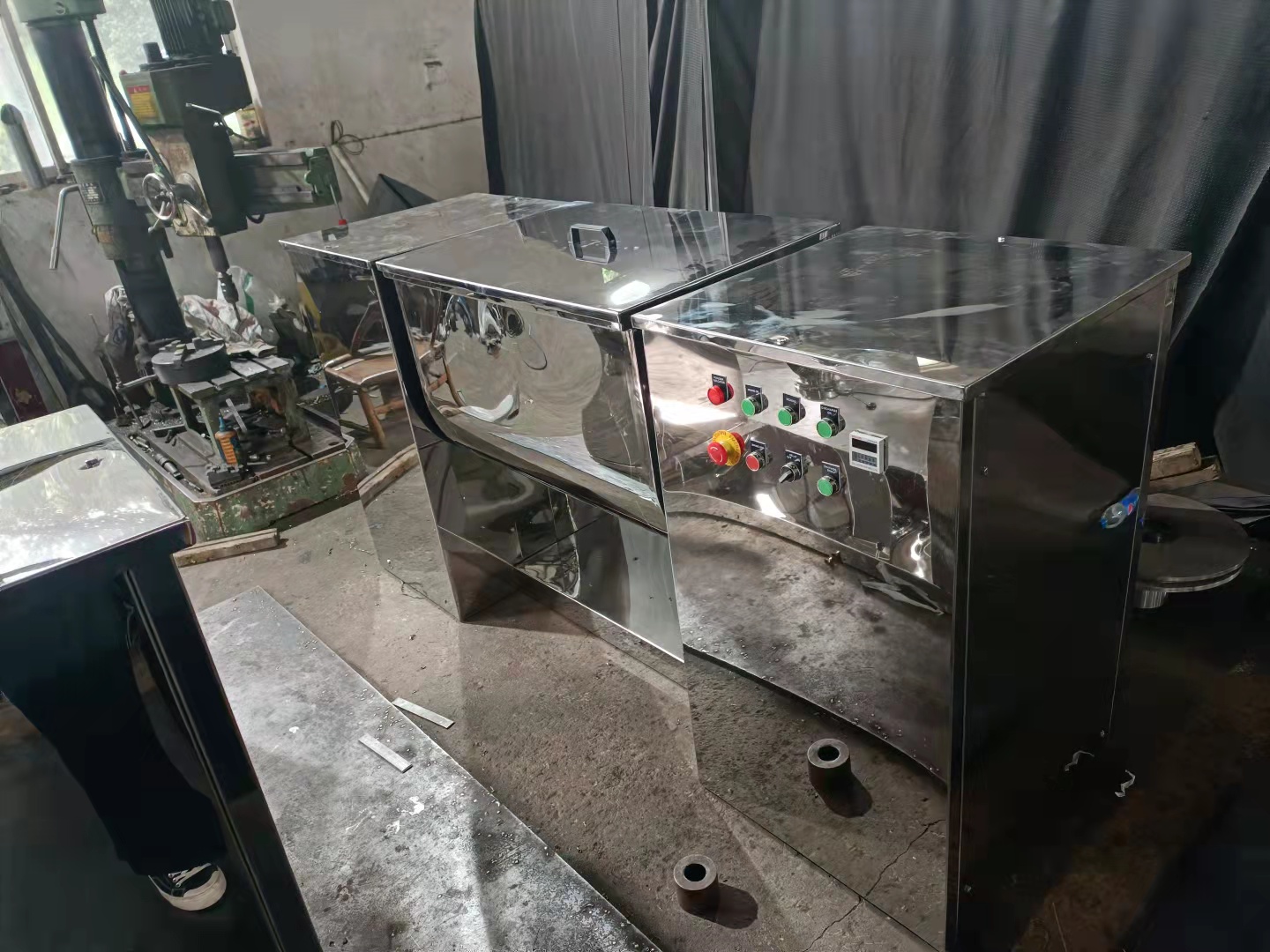

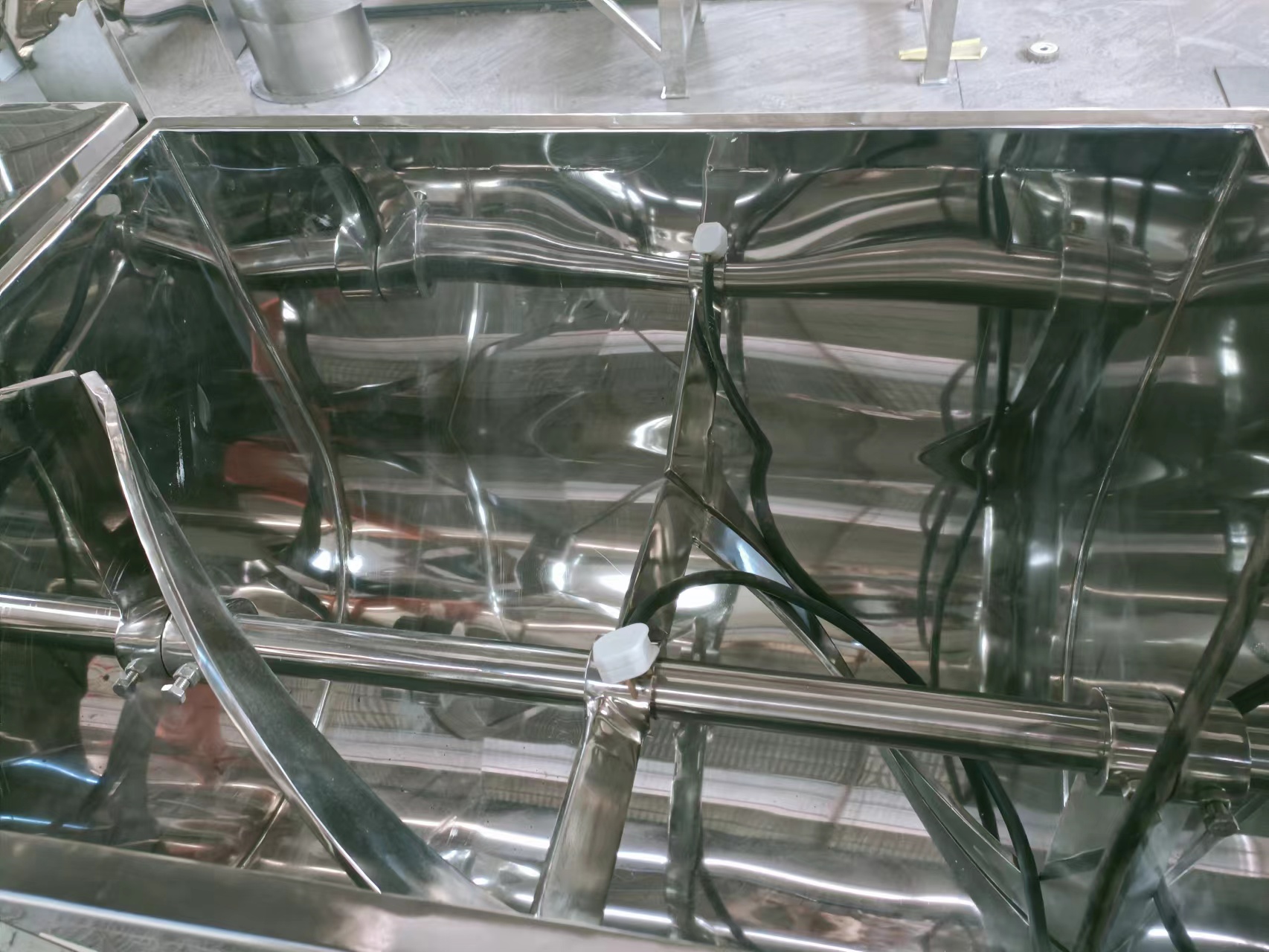

Main Application This blending machine is a horizontal trough type industrial blender, suitable for mixing powder or paste materials. The S-shaped blade in the mixing groove rotates mechanically to push the material to rotate repeatedly so that the material can be mixed evenly. The horizontal mixer machine is widely used in pharmaceutical, chemical and food industries.   TECHNICAL DATA MODEL  50 100 150 200 300 400 500 600 Paddle shape   S single paddle Working volume （L）      50    100 150 200 300 400 500 600 mixing speed （r/min）   24    24    24    24    24    24    24    24    Stir angle （°） <105 <105 <105 <105 <105 <105 <105 <105 Mixing power （kw）     1.5   2.2   3     4     5.5   5.5   7.5   11    Dumping power （kw）       0.37 0.55 0.55 0.75 1.1   1.1   1.5   2.2   Weight（kg）    280 350…
