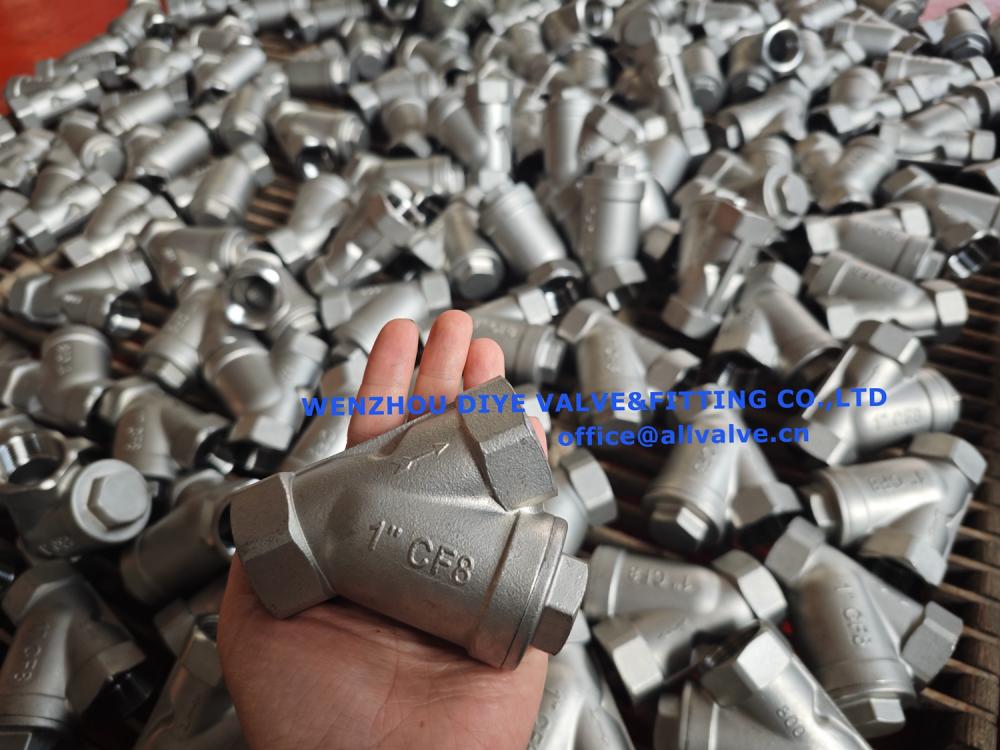

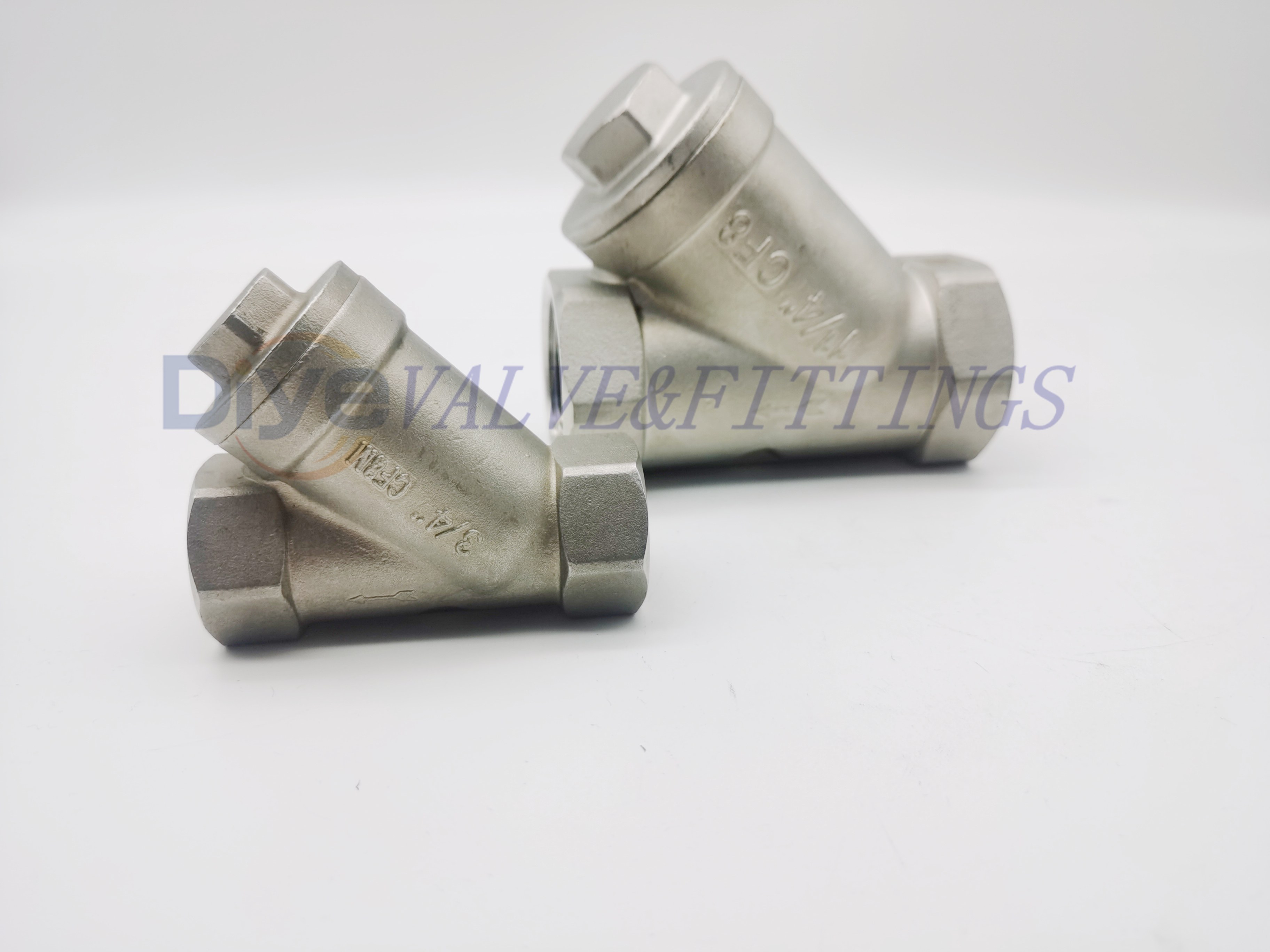

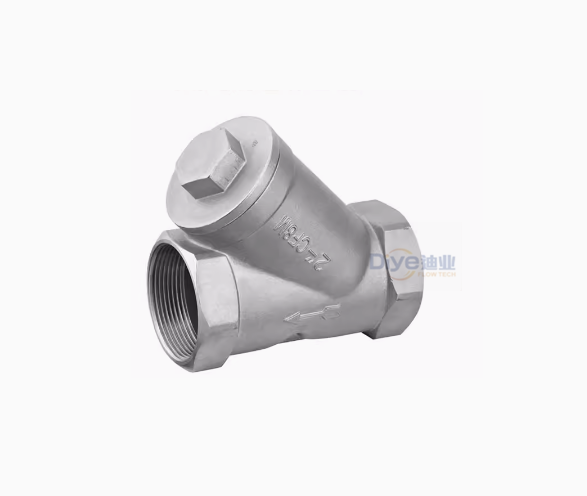

Stainless steel Y-type check valve

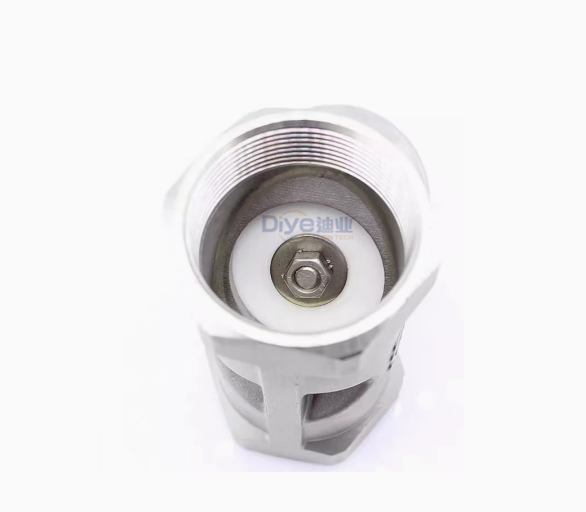

Stainless steel check valve with parallel thread and PTFE seal. The minimum differential pressure across the non-return valve must be higher than 0.6 bar. The valve has a light spring to close the valve. The maximum operating pressure is 40 bar and the valve is suitable for temperatures between -20 and 200°C. This non-return valve can be installed horizontally or vertically. The angle seat design leads to a higher flow rate than a same sized inline valve. The angle seat form is sometimes referred to as 'Y-shaped check valve' or Y check valve. Thanks to the high quality components of stainless steel 316 and PTFE, the valve is suited for high pressures, a large pressure range and a wide variety of (aggressive) media.
