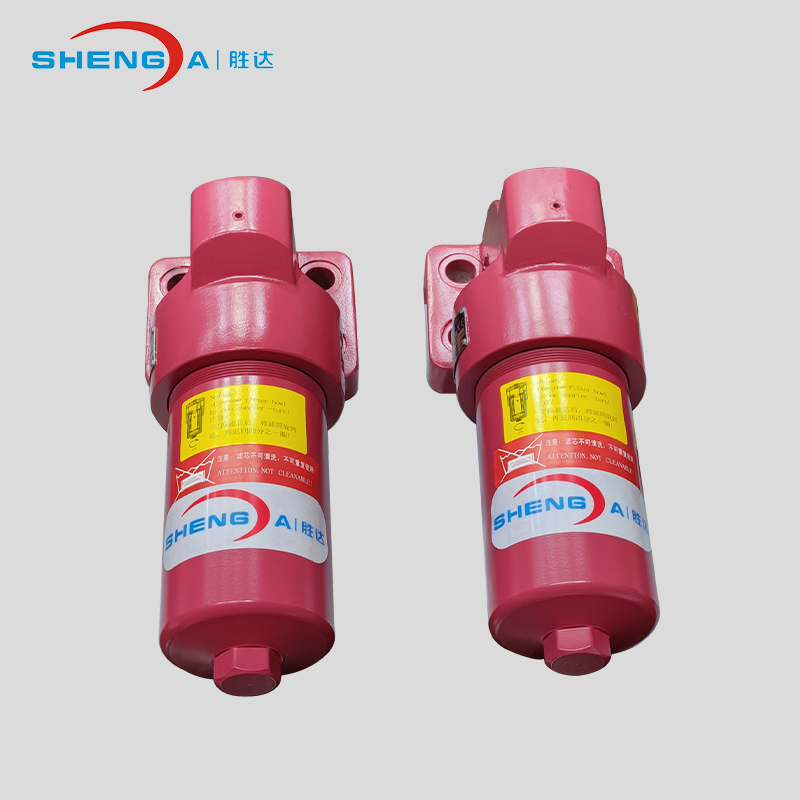

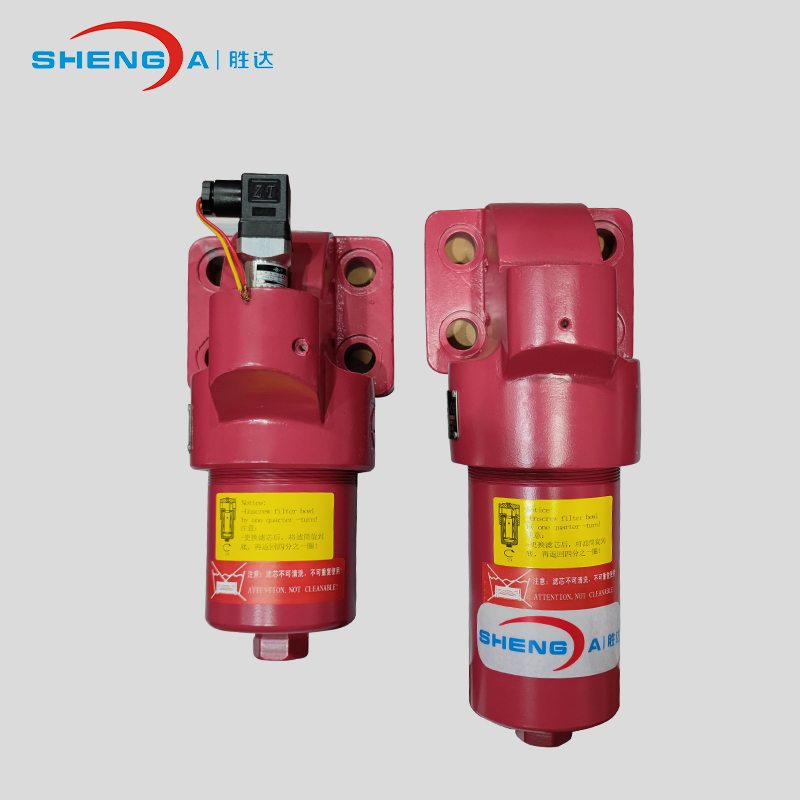

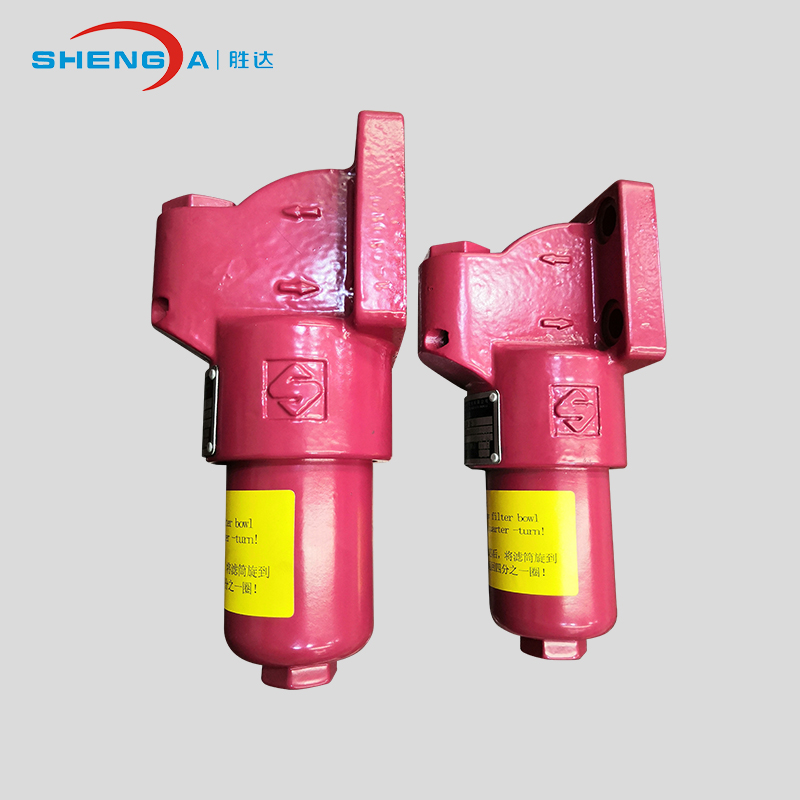

Steel high pressure oil filter assembly

High Pressure Oil Filter (SDDF…QE/SDDF…MA) ----up to 500 L/min ---up to 315bar ---material：GGG/ADI, steel 1. Technical Specifications 1.1 Filter Housing Construction The filter housings are designed in accordance with international regulations. They consist of a filter head and a screw-in filter bowl. Standard equipment: l  mounting holes in the filter head l  two-piece bowl for size SDDF...990 and above (optional for size SDDF...660) l  drain screw with pressure relief (standard for size SDDF...330 and above) 1.2  Filter Elements Max. Allowable D.P.: BN/HC：20bar   W/HC: 20bar    V: 210bar    BH/HC： 210bar 2.    Description Mounting                as pressure oil filter for flange mounting Temperature rang…
