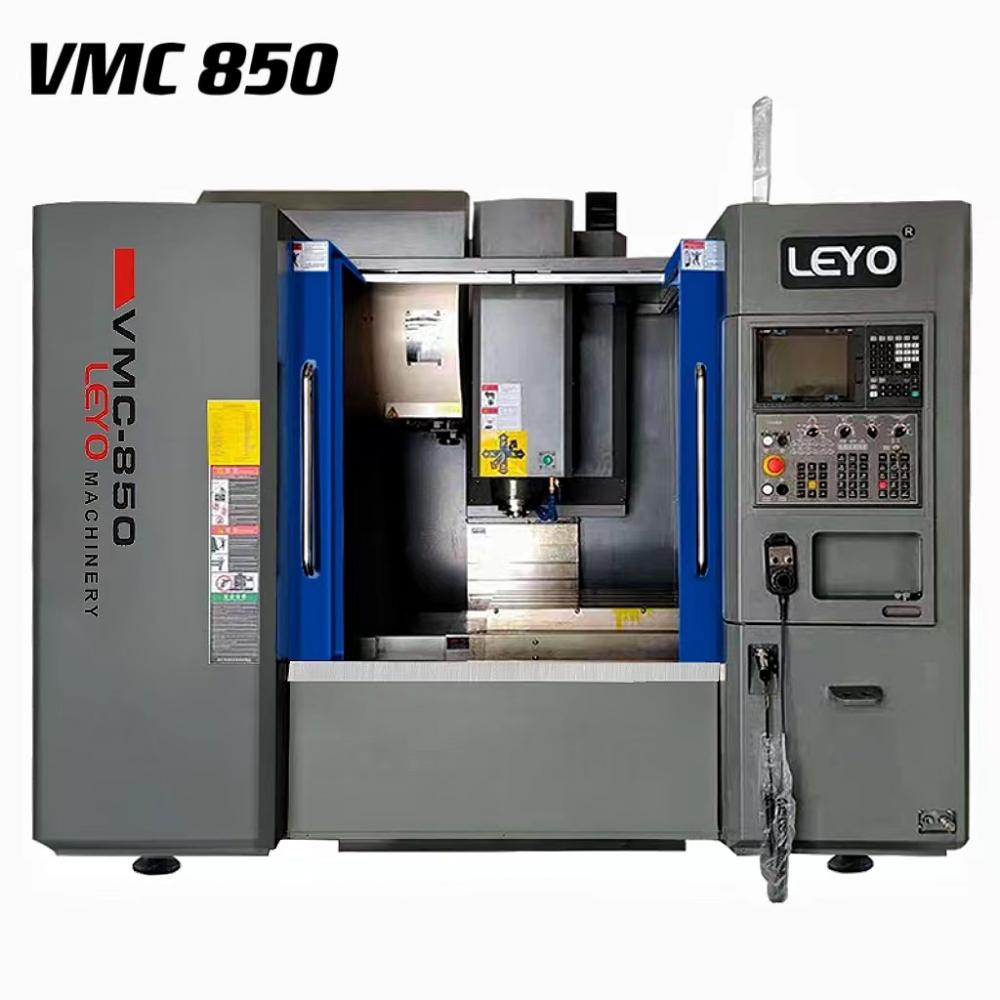

VMC 850 Vmc Machining Center

LEYO VMC 850 Vmc Machining Center Description Leyo vmc850 machining center is a very popular machining center that can process 80% of the workpieces on the market, including molds and spare parts. The body cast iron adopts HT300 grade cast iron, which has higher hardness and stability and is not easily deformed. The standard Taiwan CELLS spindle is 11kw 10000rpm, and the tool magazine adopts OKADA 24T tool arm type tool magazine. The screw rail slider adopts Taiwan Hiwin customized screw rail, with higher accuracy. LEYO VMC 850 Vmc Machining Center Technical Parameters Brand:LEYO Product Name:VMC 850 Vmc Machining Center Xyz Aixs Travel: 800/500/500 mm Working Table and load:1000*500 mm 500 kg Spindle:Belt spindle BT40 11 kw 10000 rpm Xyz Position Accuracy:±0.005 mm Xyz Reposition Accuracy:±0.003 mm Machine Weight:5000 kg Machine Size:2600*2376*2800 mm Axis Number:3/4/5 axis Tool magazine capacity:24T Controller:Gsk/Hnc/Lnc/Syntec/Mitsubishi/Fanuc/Siemens FAQ…
