Wave solder pallet materials for printed circuit boards

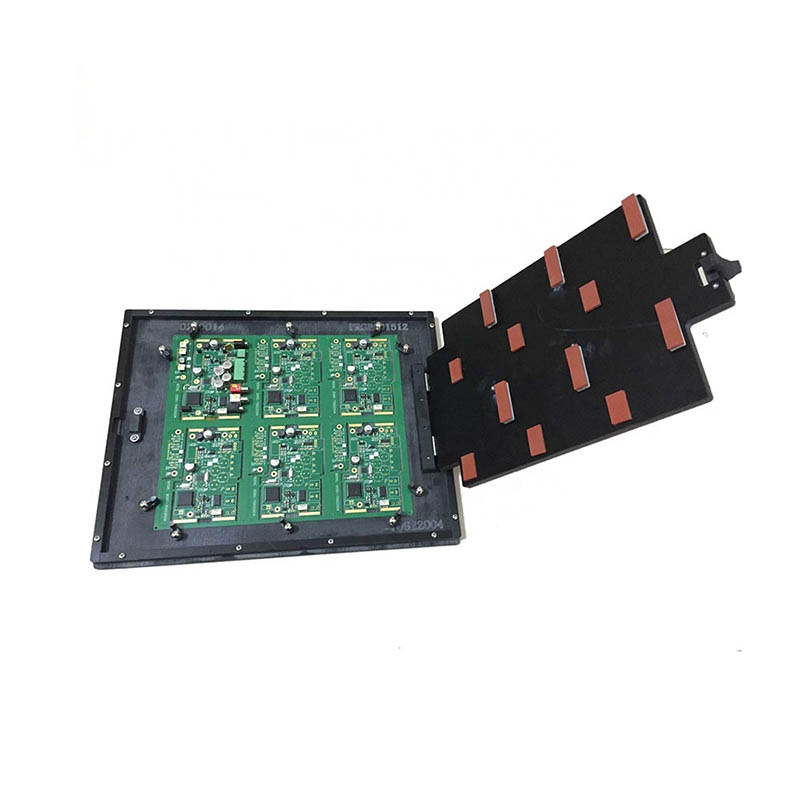

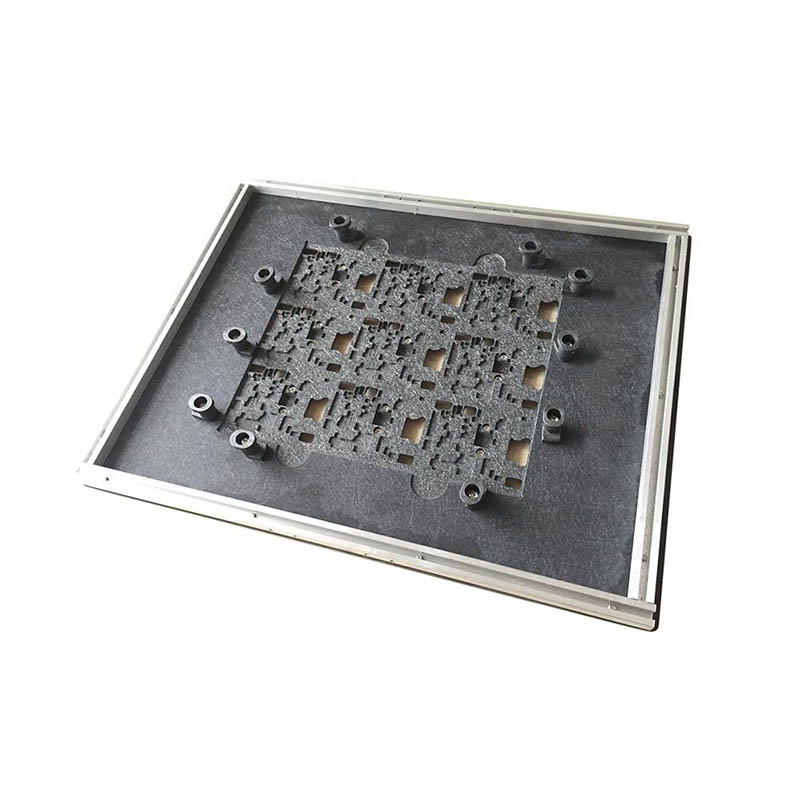

HONY®Durostone FR4 Wave solder pallet made by fiber glass cloth and high temperature resin. It is an ideal material for solder pallets, wave solder pallets,SMT solder pallets, SMT solder fixtures, selective solder fixtures and other specialty soldering fixtures.Thickness 3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,20mm,25mm,30mm For wave solder pallet, reflow solder pallet, SMT pallet, solder paste printing. Function: The wave soldering tray is a tooling fixture for carrying and protecting PCB and its components. In addition to the traditional functions of preventing PCB deformation, auxiliary support and positioning, it also improves the process, protects components, improves quality, and improves The function of production efficiency. Generally, the tray is composed of several elements shown in Figure  Jig material: In order to maximize the service life of the pallet, the material of the pallet must be able to withstand high temperature and harsh process cond…
