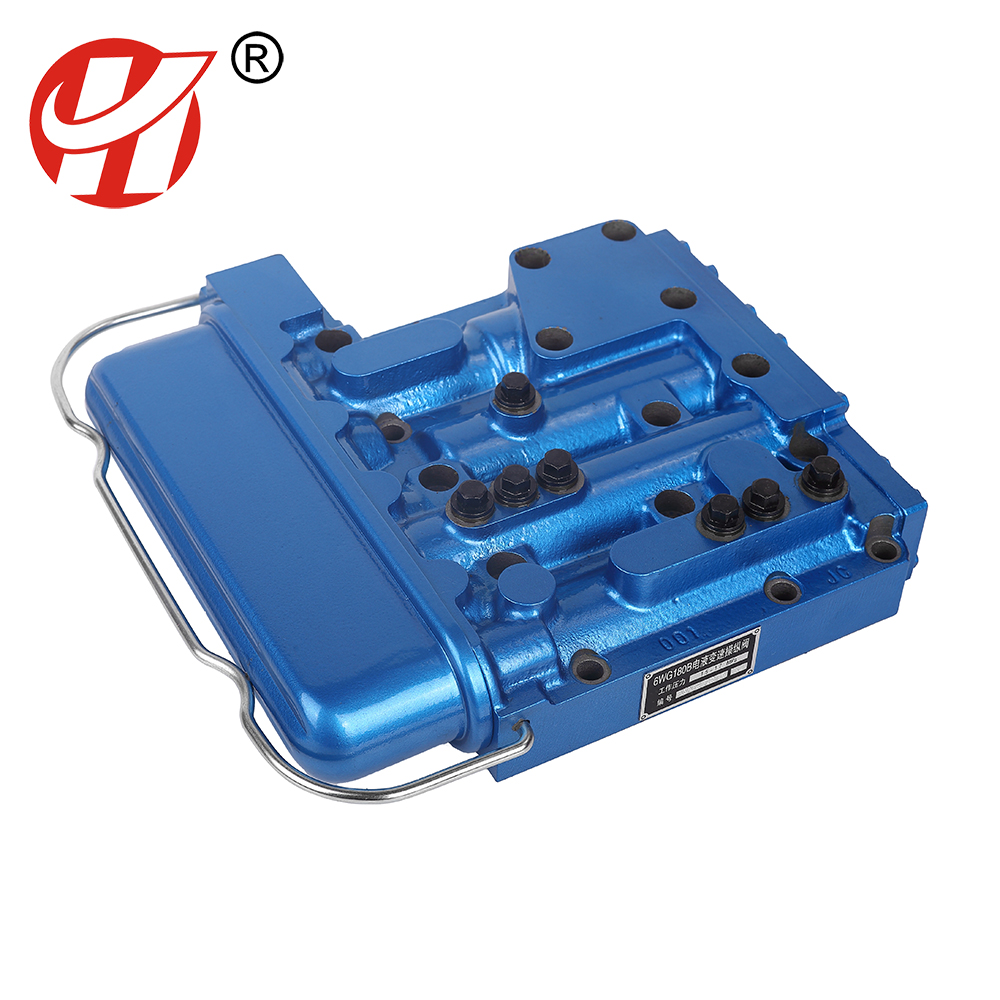

6WG180F electro hydraulic control shift valve

6WG180F electro hydraulic control shift valve（maneuvering valve） 6WG180F electro hydraulic control shift valve control shift valve is used for the hydraulic system of the gearbox of the grader, loader and bulldozer. It has six forward gears and three reverse gears. Electro hydraulic control is adopted, and the solenoid valve can be combined arbitrarily, with good universality. Technical parameters Rated flow: 120 L / min Gear pressure: 14 bar - 18 bar Gear pressure difference: ≤ 1 bar Rated voltage: DC24 V Viscosity range: 10-380 mm2 / S Temperature range: - 20 ℃ - 100 ℃ Oil cleanliness: the solid particle pollution level of oil and system shall not be higher than GB / T 14039-2002 - / 19 / 16 or NAS 1638 grade 10. Approximate weight: 22 kg Hydraulic system schematic Installation connection size
