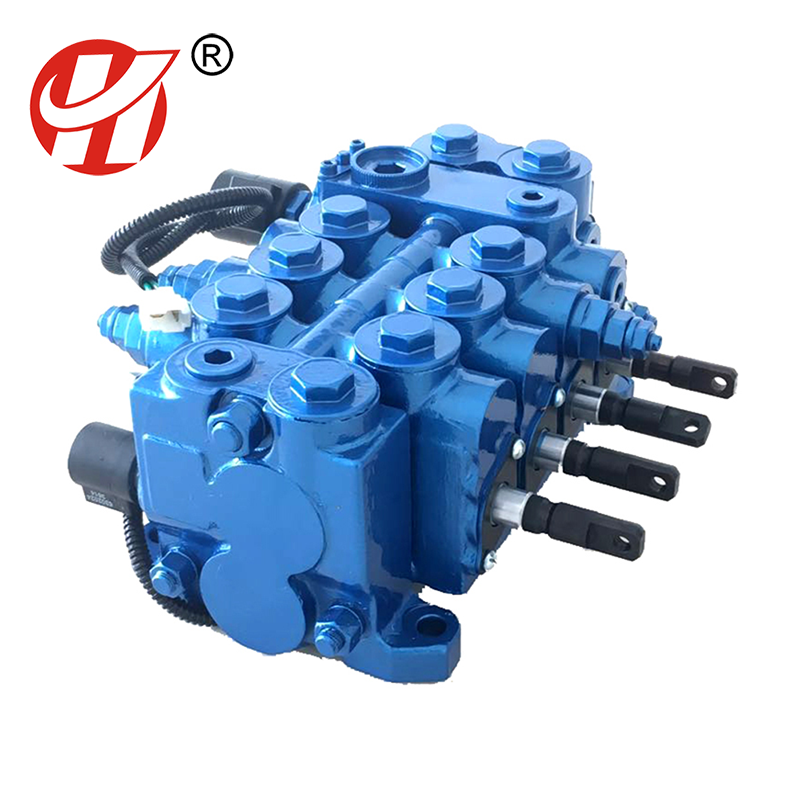

CDB5-F20 integral multi-way directional valve

CDB5-F20 integral multi-way directional valve CDB5-F20 integral multi-way directional valve is applied to 4.5t-10t multi-way valve. The valve combines the lifting and double pumps. Other action flows are provided by the single stable diverter valve built in the lifting valve piece. The tilt joint valve rod has a built-in one-way valve to increase the backward tilt flow; The utilization rate of the valve body is improved, which can reduce the manufacturing cost of the pipeline and achieve the energy saving effect. In the existing forklift, as long as the multi-way valve supplies oil, the handle rod can be operated to control various actions of the forklift gantry, so there is a potential safety hazard caused by other people's misoperation when operator temporarily leave. At the same time, when the engine stops working and there is no oil supply to the multi-way valve, only the forward tilt has the self-locking function, while the lifting valve does no…
