AMV8/12

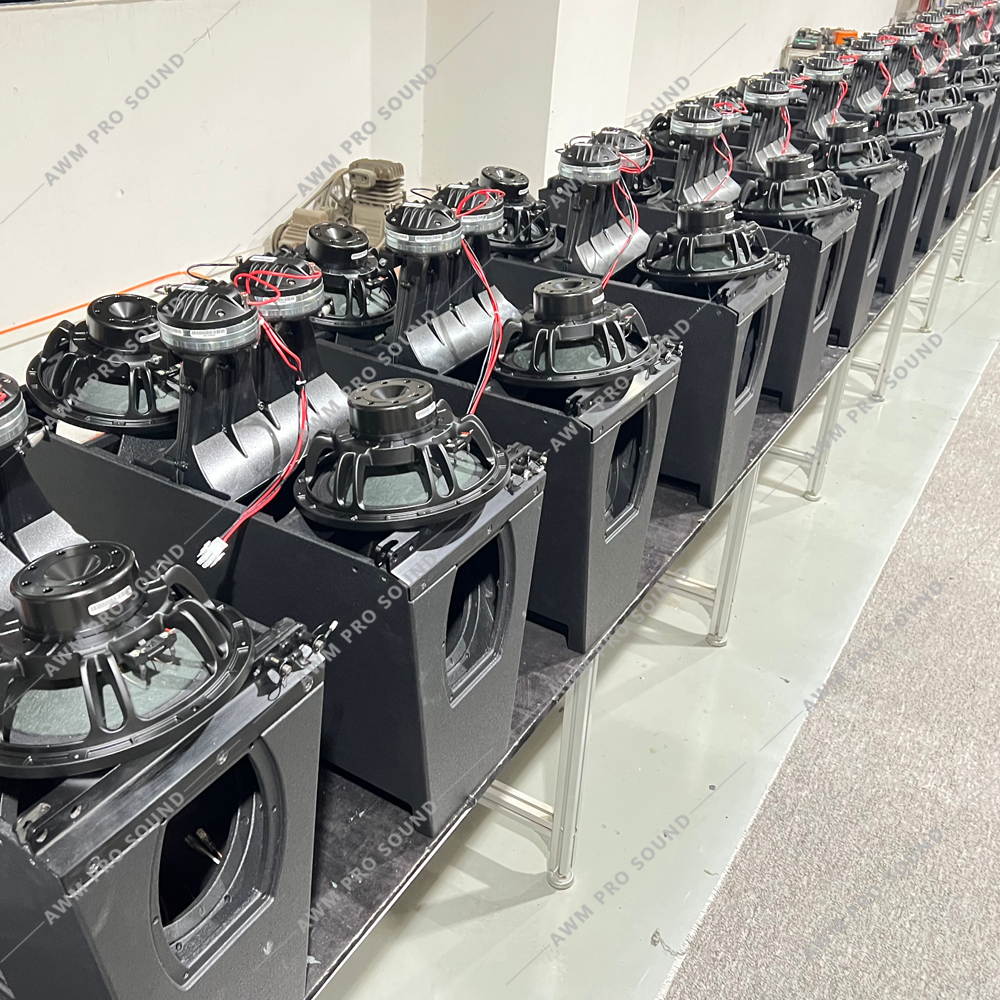

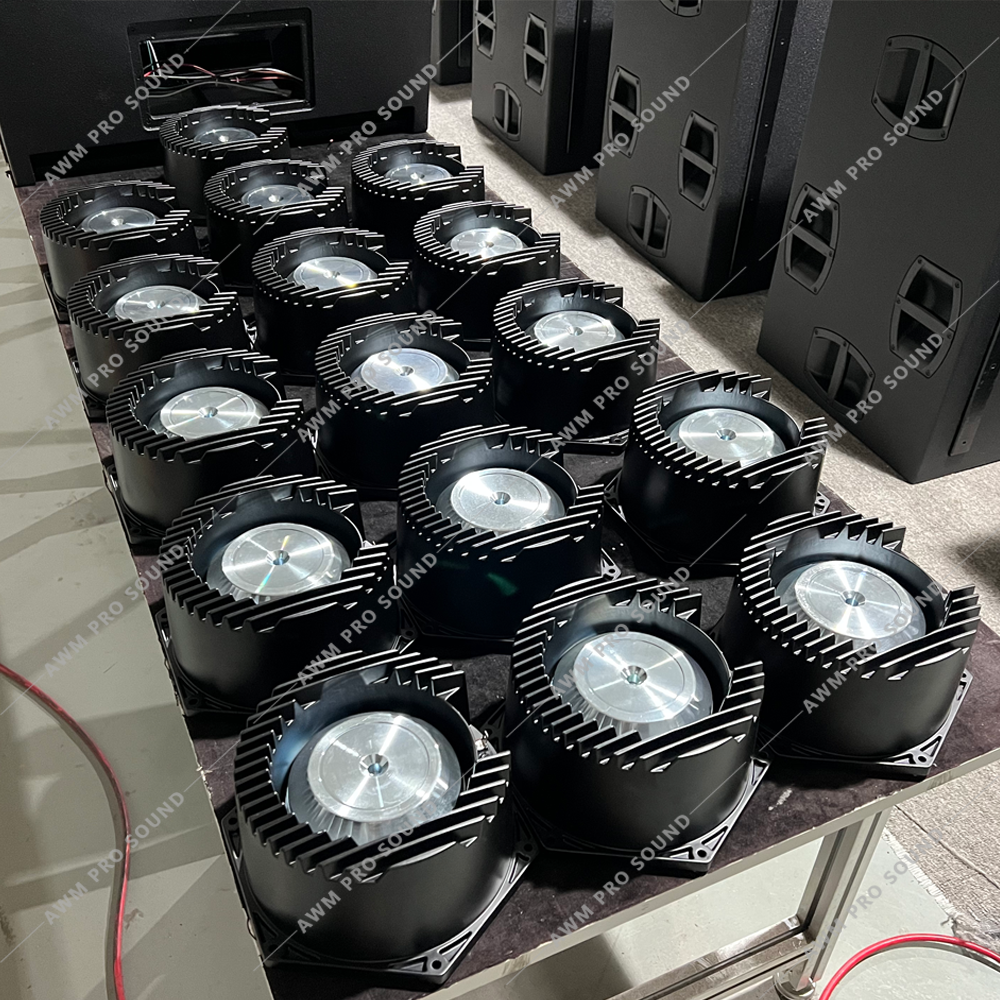

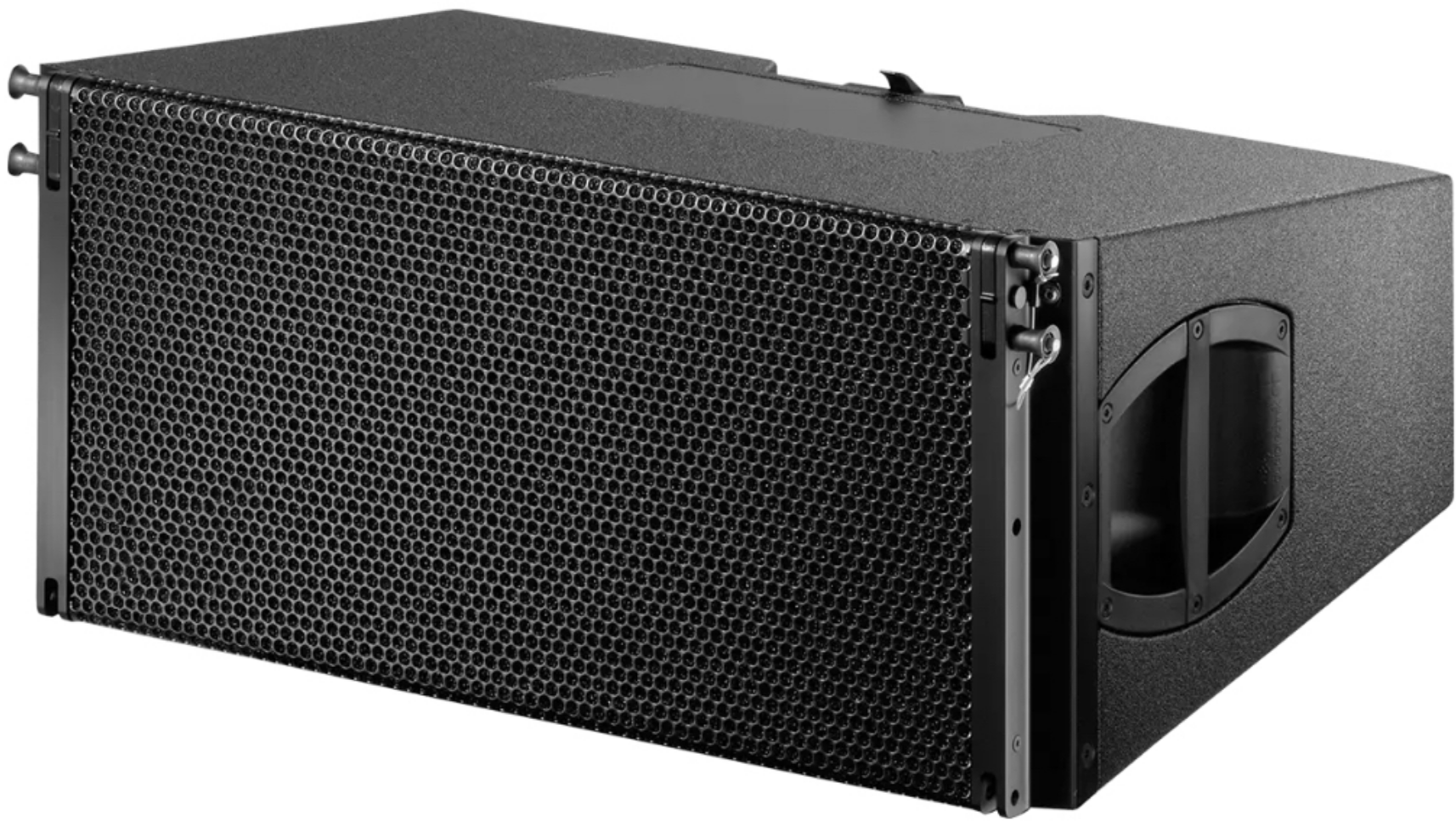

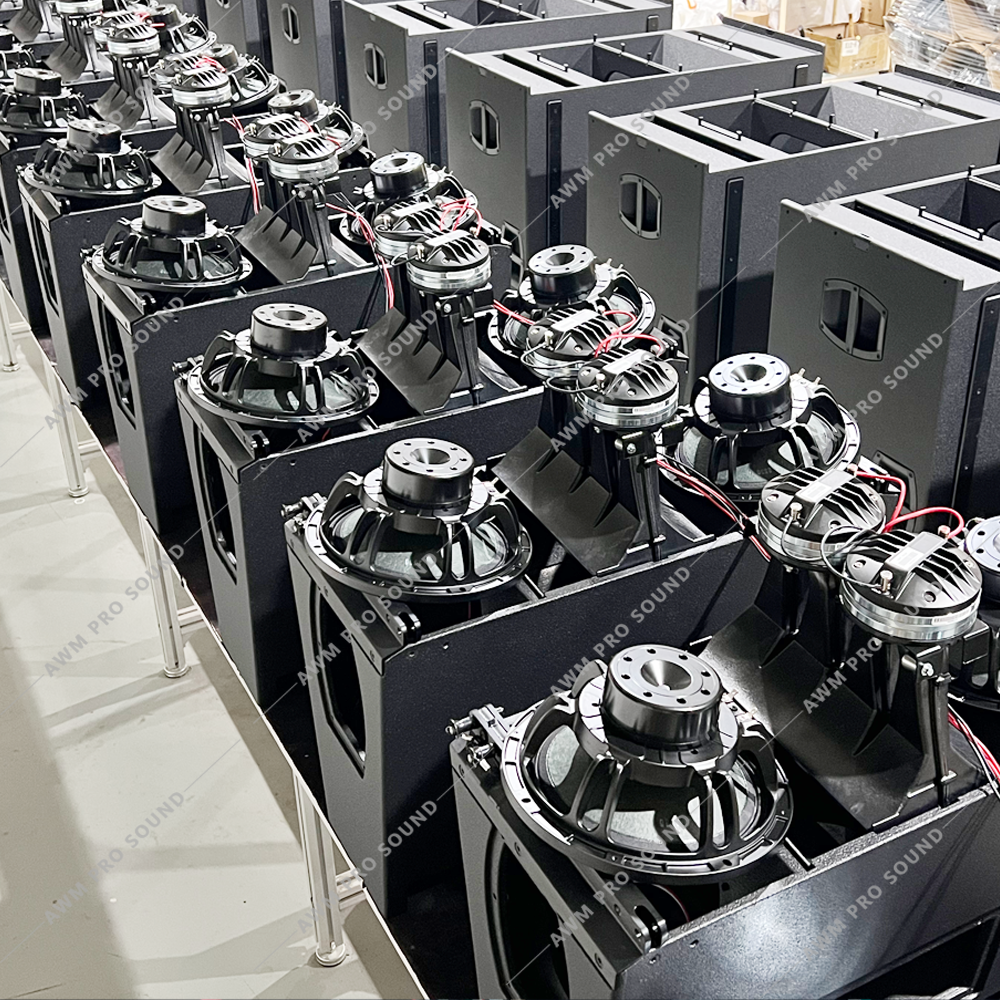

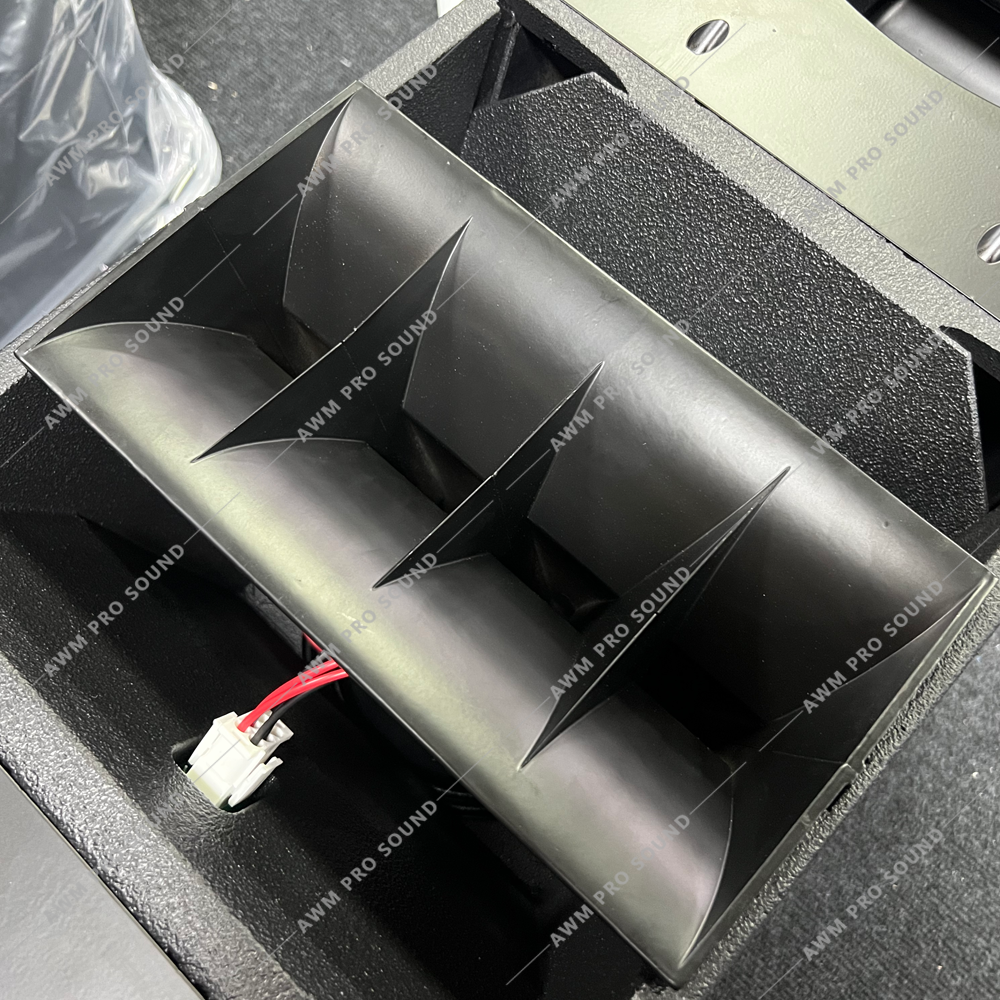

The V8 speaker adopts a passive triple frequency design with two 10 "low frequency units, one 8" intermediate frequency unit with horn, and two 1.4 "high frequency compression units (2.5" voice coils) installed on a ring waveguide device. The mechanical component structure and acoustic design allow the V8 to form a vertical line array suspension with up to 24 speakers. The V8 can form an independent line array system or can be combined with multiple V-SUB speakers to form a system. Woofer: 2 x 10 "（Neodymium magnetic horn） Midrange：1 x 8"（Neodymium magnetic horn） Tweeter：2 x 1.4“（Neodymium magnetic horn） Maximum sound pressure level (1m, free field) 1 with D12/D80 139/142 dB SPL Rated power (effective value/peak value 10 ms): 500/2000 W Frequency response (- 5 dB): 67/1002 Hz - 18 kHz Nominal coverage angle (horizontal): 80 ° 3 Coupling angle setting: 0 - 14 ° (unit adjustment angle 1 °) SIZE (H x W x D): 310 x 700 x 460mm Weight: 34 kg
