Electric Automation Actuator Mechanism

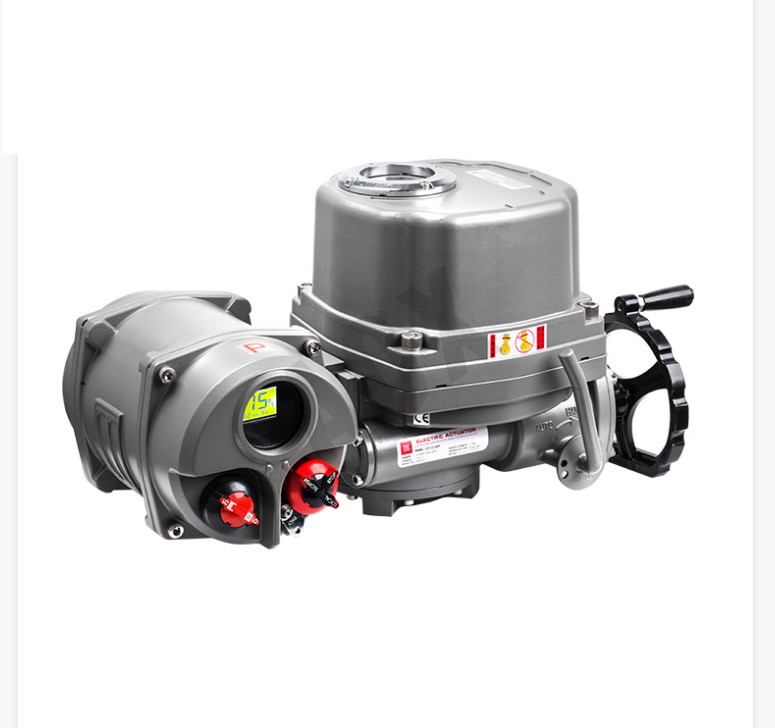

Valve Electric Actuator Overview M130-20 valve electric actuator is specially designed for butterfly valve automation.  The valve electric actuator flow control unit meets the security communication requirements of the general pipeline flow control system. Flexible equipment location and configuration to meet various installation needs. Drived by 380V/220V/110VAC or 24V/110VDC power, inputs 4-20mA or 0-10VDC control signal, moves valve to the right position, and achieves to automatic flow control in many industrial sectors, the maximum output torque is 6000Nm. Features Corrosion level: Epoxy powder coating. NEMA 4X corrosion protection  Ingress protection: IP67 (IP68 is optional) Force range:3000 - 30000 N Running speeds: 1.5 mm/s Working System: Motor: Asynchronous motor Travel: 90°±10° Features: Torque range:50~6000N.m Control method:On and off / modulating type/ Intelligent type Vol…
